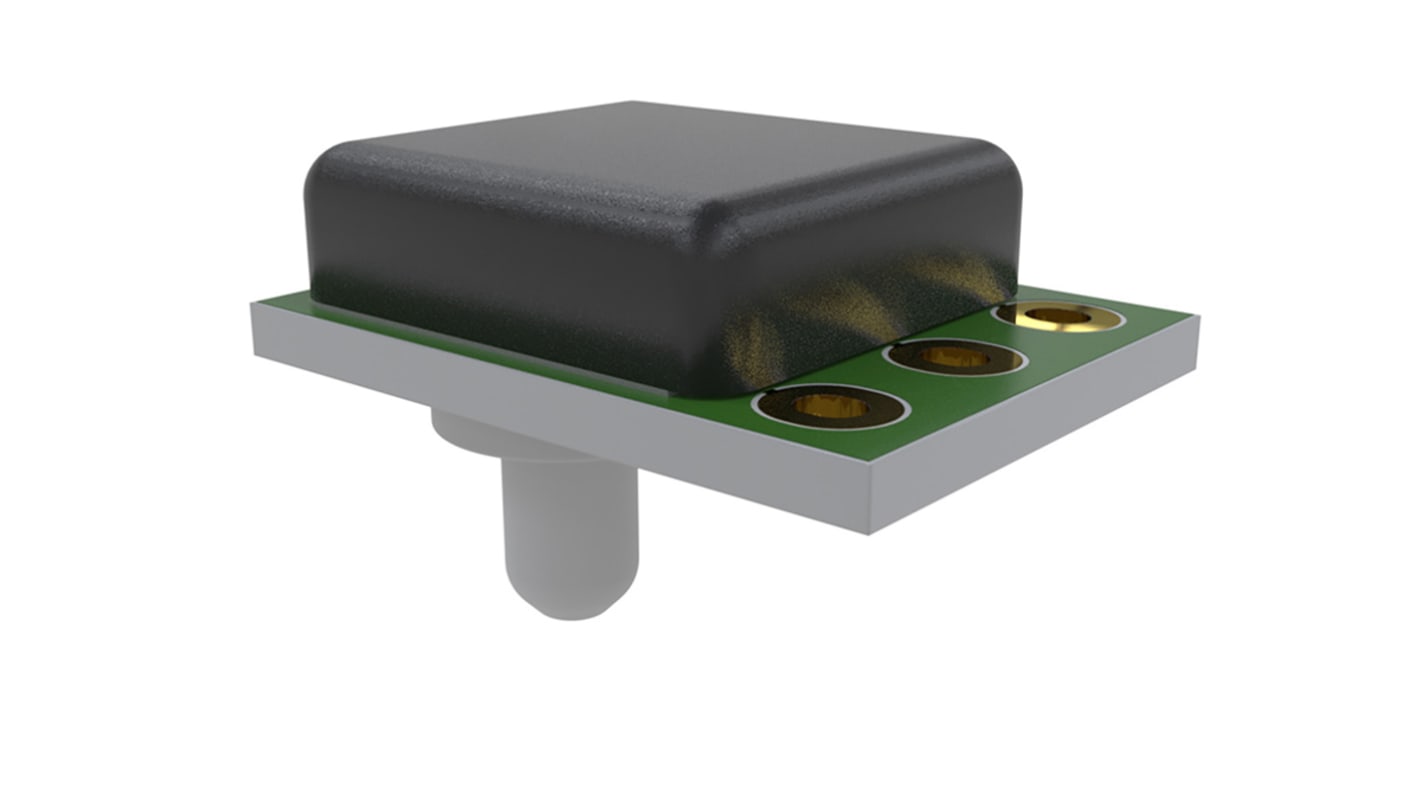

Bourns Gauge Pressure Sensor, 100psi Operating Max, 3-Pin
- RS-artikelnummer:
- 187-4755P
- Tillv. art.nr:
- BPS140-HG100P-1SG
- Tillverkare / varumärke:
- Bourns
Tillfälligt slut i lager – restorder för leverans 2025-02-11
Lagt till varukorgen
Pris (ex. moms) Varje (levereras i en rulle) Quantities below 150 on continuous strip
468,11 kr
(exkl. moms)
585,14 kr
(inkl. moms)
| Enheter | Per unit |
| 5 - 9 | 468,11 kr |
| 10 - 24 | 456,13 kr |
| 25 + | 444,82 kr |
- RS-artikelnummer:
- 187-4755P
- Tillv. art.nr:
- BPS140-HG100P-1SG
- Tillverkare / varumärke:
- Bourns
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- US
Produktdetaljer
BPS pressure sensors are based on innovative MEMS technology which provides extremely accurate condition readings in a miniature package size. The sensing element is comprised of embedded piezoresistive elements bonded to a chemically etched silicon diaphragm.
Compensated output
Certain harsh media monitoring
Absolute and gauge types
Isolated on board electronics
Ceramic port
Applications
Industrial:
Refrigerant systems
Water level & pressure monitoring
Medical Devices(low/medium risk):
Diagnostic/analysis equipment
Heavy Equipment:
Oil & fuel systems
Exhaust gas pressure sensing
Certain harsh media monitoring
Absolute and gauge types
Isolated on board electronics
Ceramic port
Applications
Industrial:
Refrigerant systems
Water level & pressure monitoring
Medical Devices(low/medium risk):
Diagnostic/analysis equipment
Heavy Equipment:
Oil & fuel systems
Exhaust gas pressure sensing
Specifikationer
Attribute | Value |
|---|---|
| Sensor Type | Gauge Pressure Sensors |
| Pin Count | 3 |
| Dimensions | 13.9 x 10.4 x 9.7mm |
| Maximum Operating Pressure | 100psi |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
