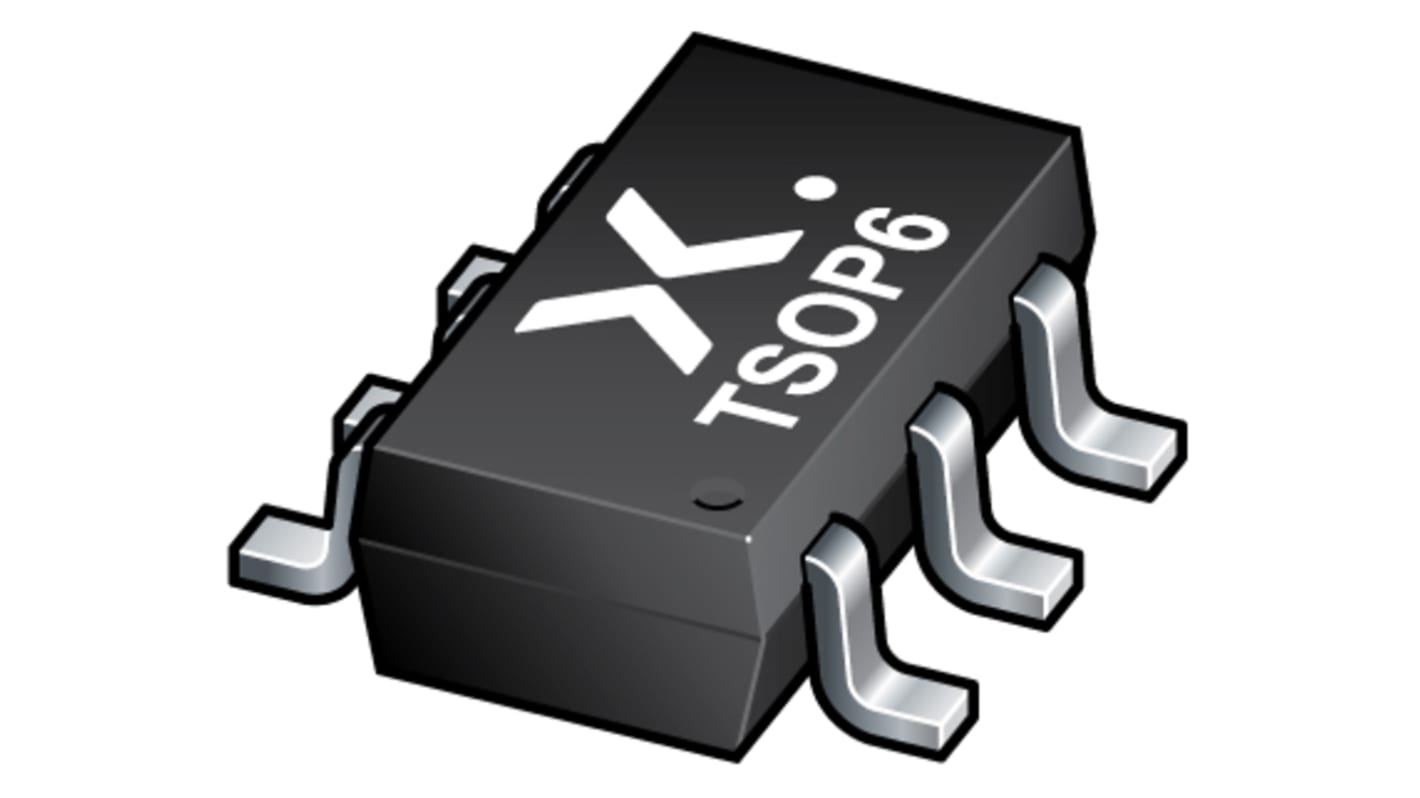

Nexperia PBLS6003D,115, DualHigh Side, High Side Switch Power Switch IC 6-Pin, SC-74
- RS-artikelnummer:
- 170-4888
- Tillv. art.nr:
- PBLS6003D,115
- Tillverkare / varumärke:
- Nexperia
Tillfälligt slut i lager – restorder för leverans 2025-05-27
Lagt till varukorgen
Pris (ex. moms) Var (i en rulle med 3000)
0,834 kr
(exkl. moms)
1,042 kr
(inkl. moms)
| Enheter | Per unit | Per Reel* |
| 3000 + | 0,834 kr | 2 502,00 kr |
- RS-artikelnummer:
- 170-4888
- Tillv. art.nr:
- PBLS6003D,115
- Tillverkare / varumärke:
- Nexperia
Lagstiftning och ursprungsland
- COO (Country of Origin):
- MY
Produktdetaljer
PNP low VCEsat Breakthrough In Small Signal (BISS) transistor and NPN Resistor-Equipped Transistor (RET) in a SOT457 (SC-74) small Surface Mounted Device (SMD) plastic package.
Low VCEsat transistor and RET in small SMD plastic package
Space saving solution that simplifies circuit design, reducing component count from four to one
VCEO from 15 V to 60 V, with four resistor values available
Fewer solder points for increased reliability
Current capability up to:
IC: 1.8 A at 20 V
IC: 1.5 A at 60 V
Reduces pick-and-place costs
Low collector-emitter saturation voltage
Low threshold voltage (<1 V) compared to MOSFET
Key applications
Supply-line switches
Battery charger switches
High-side switches for LEDs, drivers and backlights
Portable equipment
Medium power DC-to-DC conversion
Space saving solution that simplifies circuit design, reducing component count from four to one
VCEO from 15 V to 60 V, with four resistor values available
Fewer solder points for increased reliability
Current capability up to:
IC: 1.8 A at 20 V
IC: 1.5 A at 60 V
Reduces pick-and-place costs
Low collector-emitter saturation voltage
Low threshold voltage (<1 V) compared to MOSFET
Key applications
Supply-line switches
Battery charger switches
High-side switches for LEDs, drivers and backlights
Portable equipment
Medium power DC-to-DC conversion
Specifikationer
Attribute | Value |
|---|---|
| Power Switch Topology | High Side |
| Power Switch Type | High Side Switch |
| Number of Channels | 2 |
| Maximum Operating Supply Voltage | 60 V |
| Maximum Operating Current | 1A |
| Mounting Type | Surface Mount |
| Package Type | SC-74 |
| Pin Count | 6 |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -65 °C |
| Dimensions | 3.1 x 1.7 x 1mm |
| Series | PBLS |
| Automotive Standard | AEC-Q101 |
