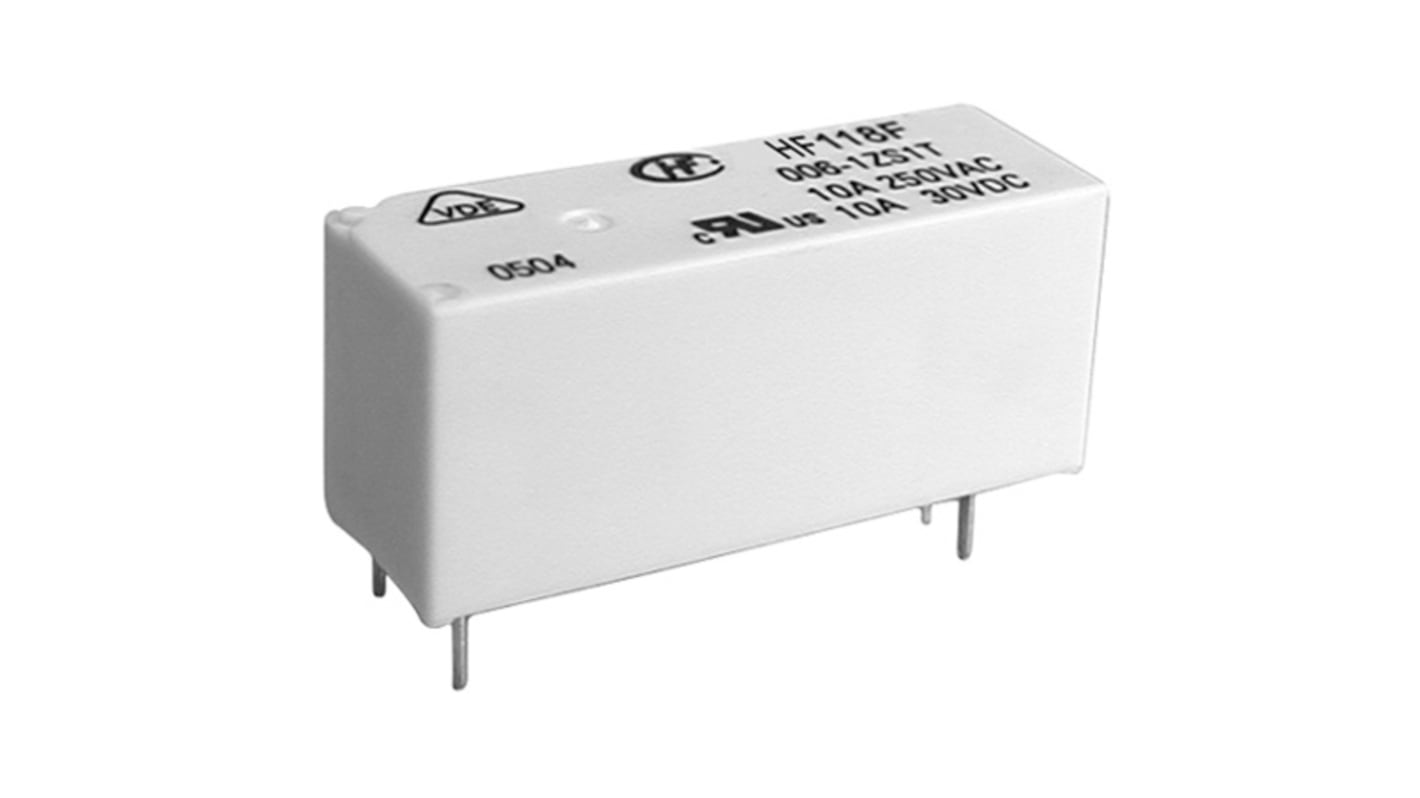

Hongfa Europe GMBH PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, SPST
- RS-artikelnummer:
- 176-2617
- Tillv. art.nr:
- HF118F/012-1ZS1T(136)
- Tillverkare / varumärke:
- Hongfa Europe GMBH
240 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett rör med 20)
17,932 kr
(exkl. moms)
22,415 kr
(inkl. moms)
| Enheter | Per unit | Per Tube* |
| 20 - 180 | 17,932 kr | 358,64 kr |
| 200 - 380 | 16,673 kr | 333,46 kr |
| 400 - 980 | 15,783 kr | 315,66 kr |
| 1000 + | 14,349 kr | 286,98 kr |
- RS-artikelnummer:
- 176-2617
- Tillv. art.nr:
- HF118F/012-1ZS1T(136)
- Tillverkare / varumärke:
- Hongfa Europe GMBH
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
Hongfa SPST Non-Latching Relay
The Hongfa SPST 1-pole non-latching PCB mount relay is actuated with the help of a 12VDC coil and up to 10A DC/AC current through the coil for the relay to switch its positions. It is a miniature type high power relay. It can be used with a single coil winding configuration. This relay has silver alloy contact for high electrical endurance.
Features and Benefits
• Environmental friendly product
• Isolation voltage between the coil and contacts is 5KV
• High surge withstand voltage up to 10KV
• Service temperature range between -40°C and 85°C
• High mechanical endurance and life expectancy of 10M cycles
• Resistant to vibration and abrasion
• Low power consumption
• Offers excellent board space saving
• Isolation voltage between the coil and contacts is 5KV
• High surge withstand voltage up to 10KV
• Service temperature range between -40°C and 85°C
• High mechanical endurance and life expectancy of 10M cycles
• Resistant to vibration and abrasion
• Low power consumption
• Offers excellent board space saving
Applications
• Used as a control device
• Automotive industry
• Household appliances
• Industrial machinery
• Telecommunication
• Automotive industry
• Household appliances
• Industrial machinery
• Telecommunication
Specifikationer
Attribute | Value |
|---|---|
| Coil Voltage | 12V dc |
| Contact Configuration | SPST |
| Mounting Type | PCB Mount |
| Switching Current | 10A |
| Number of Poles | 1 |
| Latching | No |
| Terminal Type | PCB Pin |
| Maximum Switching Voltage AC | 440V |
| Maximum Switching Voltage DC | 125V dc |
| Maximum Switching Current AC | 10 A |
| Maximum Switching Current DC | 10 A |
| Length | 28.5mm |
| Coil Resistance | 620Ω |
| Coil Power | 220 → 290mW |
| Height | 12.5mm |
| Maximum Operating Temperature | +85°C |
| Isolation Coil To Contact | 10kV |
| Contact Material | Silver Alloy |
| Depth | 10.1mm |
| Series | HF118F |
| Minimum Operating Temperature | -40°C |
| Life | 1 x 10^7 cycles |
| Maximum Switching Power AC | 2.5 kVA |
| Maximum Switching Power DC | 300 W |
