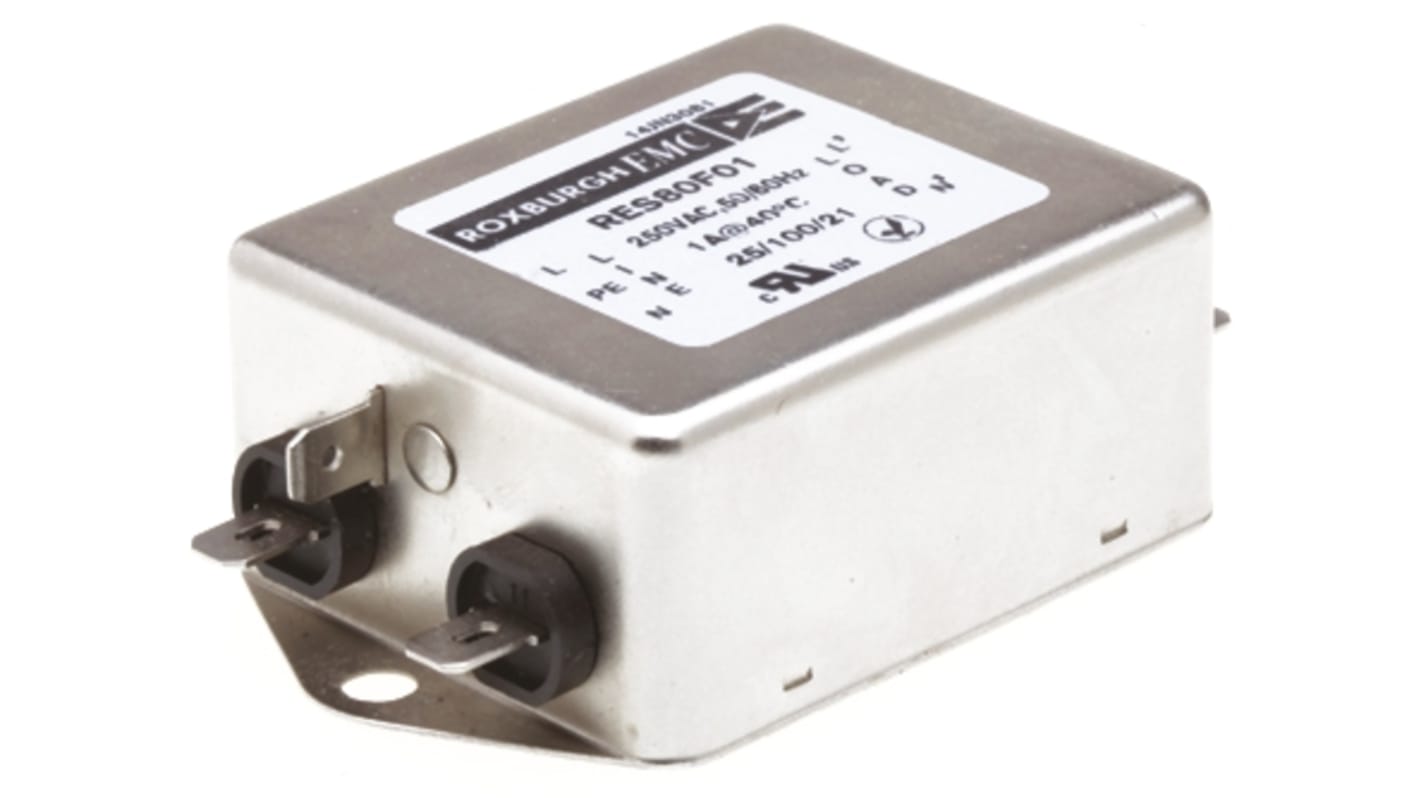

Roxburgh EMC RES80 Series 1A 250 V ac DC → 400Hz Chassis Mount RFI Filter, with Fast-On Terminals, Single Phase

  • RS-artikelnummer 806-8219
  • Tillv. art.nr RES80F01
  • Tillverkare / varumärke Roxburgh EMC
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): IN
Produktdetaljer

Roxburgh EMC RES80 Series

The Roxburgh EMC RES80 series multi-stage, single phase EMC filters feature very high differential, common mode and high low frequency attenuation. The RES80 series is designed for use in applications where high levels of noise are present such as where drives are used. Typical applications for the RES80 series include: electrical and electronic equipment; consumer goods; household equipment; building automation; machinery; electronic data/communication processing equipment; office automation

Multi-stage
High differential and high common mode attenuation
Good low frequency attenuation
For use from DC to 400Hz
1 Amp to 16 Amp
Compact size for performance
Fast-on, solder or wire terminations
Quick and easy chassis mounting

Note

Low leakage version suitable for medical applications

Approvals

UL E191581

Specifikationer
Attribute Value
Maximum Current Rating 1A
Maximum Voltage Rating 250 V ac
Mounting Type Chassis Mount
Termination Style Fast-On
Number of Phases 1
Number of Stages Multi Stage
Series RES80
Operating Frequency DC → 400Hz
Length 85mm
Depth 52mm
Height 30mm
Capacitance 660nF
Inductance 22.4 mH
Dimensions 85 x 52 x 30mm
Minimum Operating Temperature -25°C
Leakage Current 0.73 mA
Maximum Operating Temperature +100°C
Resistance 1MΩ
Standards Met CSA 22.2 No. 8, UL 1283
Tillfälligt slut i lager – restorder för leverans 2020-06-15
Pris (ex. moms) Each
301,20 kr
(exkl. moms)
376,50 kr
(inkl. moms)
Enheter
Per unit
1 - 9
301,20 kr
10 - 24
288,80 kr
25 - 49
281,25 kr
50 - 99
270,18 kr
100 +
265,32 kr
