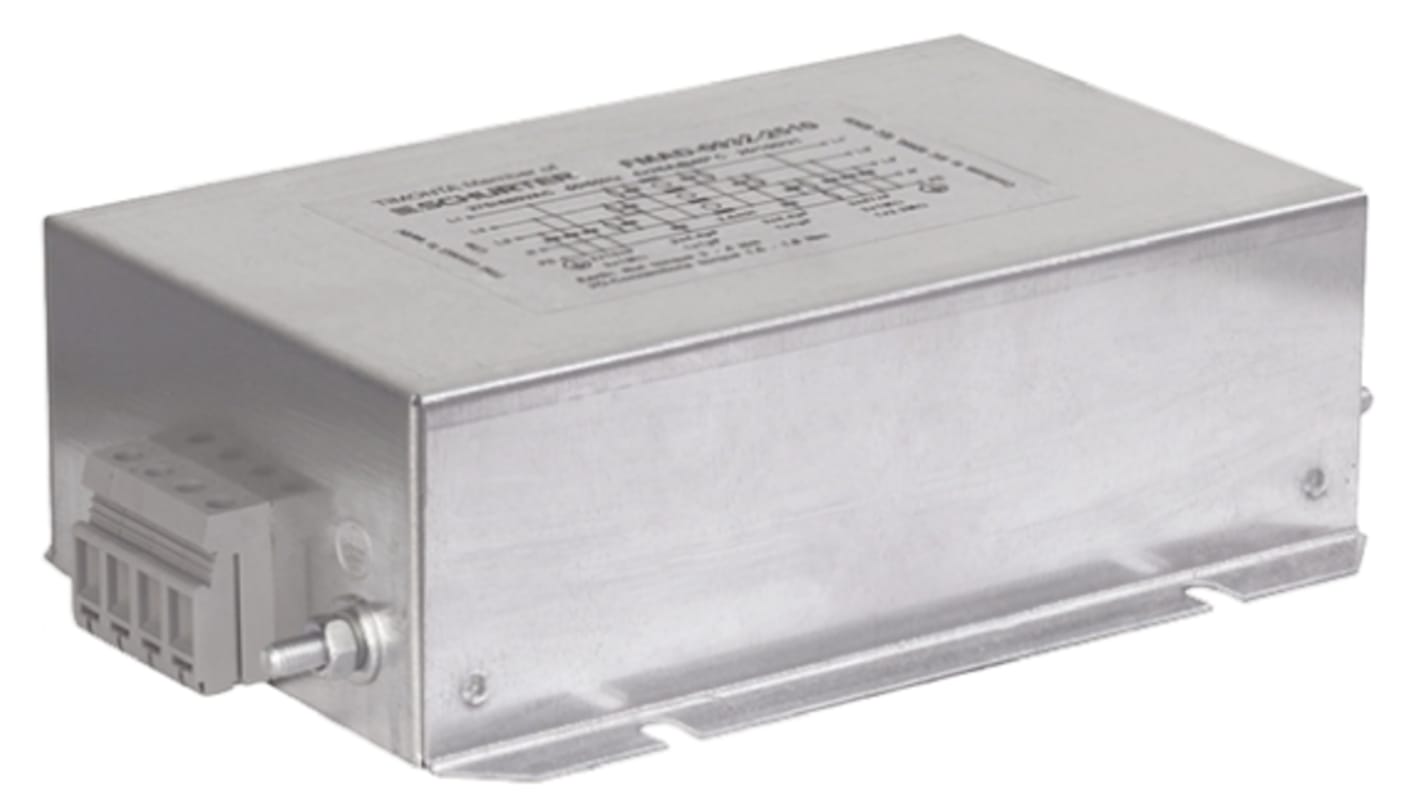

Schurter, FMAD 8A 480 V ac 50 → 60Hz, Screw Mount RFI Filter, Screw 3 Phase
- RS-artikelnummer:
- 782-4153
- Tillv. art.nr:
- FMAD-0931-0810
- Tillverkare / varumärke:
- Schurter
Tillfälligt slut i lager – restorder för leverans 2024-07-12
Pris (ex. moms) Varje
1 897,39 kr
(exkl. moms)
2 371,74 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 1 | 1 897,39 kr |
| 2 - 4 | 1 707,64 kr |
| 5 - 9 | 1 536,85 kr |
| 10 + | 1 383,14 kr |
- RS-artikelnummer:
- 782-4153
- Tillv. art.nr:
- FMAD-0931-0810
- Tillverkare / varumärke:
- Schurter
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
FMAD Series
Single stage metal cased chassis mount 3 phase + Neutrol filter
Voltage rating 275 to 480Vac 50/60Hz high attenuation type
Quallified for use in equipment according to IEC/EN60950
Voltage rating 275 to 480Vac 50/60Hz high attenuation type
Quallified for use in equipment according to IEC/EN60950
Specifikationer
Attribute | Value |
|---|---|
| Maximum Current Rating | 8A |
| Maximum Voltage Rating | 480 V ac |
| Mounting Type | Screw Mount |
| Termination Style | Screw |
| Number of Phases | 3 |
| Number of Stages | Single Stage |
| Series | FMAD |
| Operating Frequency | 50 → 60Hz |
| Length | 217mm |
| Depth | 116mm |
| Capacitance | 1 μF, 100nF |
| Height | 61mm |
| Dimensions | 217 x 116 x 61mm |
| Inductance | 8 mH |
| Leakage Current | > 5 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 35mΩ |
| Power Loss | 9W |
