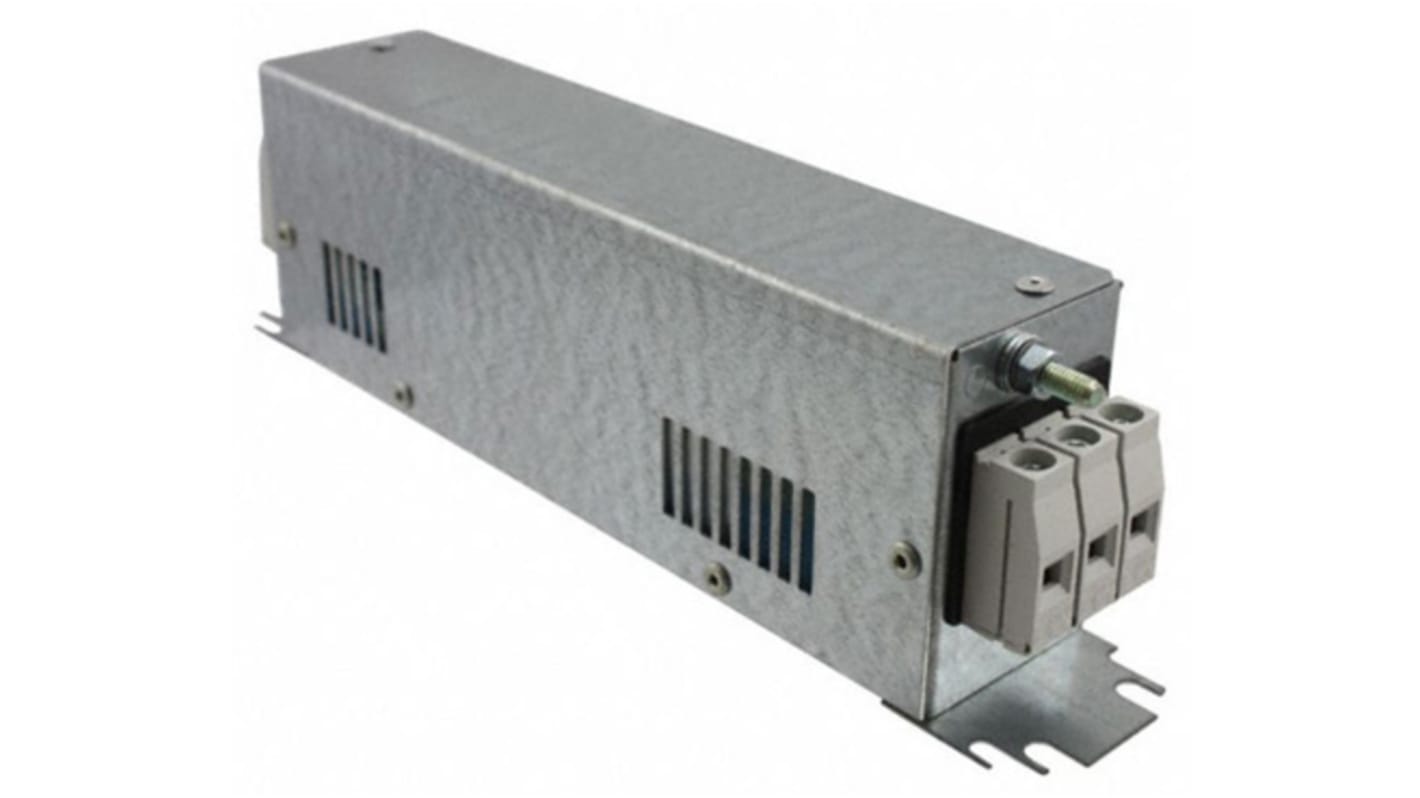

Schurter, FMAC ECO 80A 480 V ac 60Hz, Flange Mount RFI Filter, Screw 3 Phase
- RS-artikelnummer:
- 708-5698
- Tillv. art.nr:
- FMAC-091T-8010
- Tillverkare / varumärke:
- Schurter
15 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
4 046,30 kr
(exkl. moms)
5 057,88 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 1 | 4 046,30 kr |
| 2 - 4 | 3 641,62 kr |
| 5 + | 3 277,54 kr |
- RS-artikelnummer:
- 708-5698
- Tillv. art.nr:
- FMAC-091T-8010
- Tillverkare / varumärke:
- Schurter
Lagstiftning och ursprungsland
Produktdetaljer
FMAC Series
Schurter FMAC series single stage power line filter for 3-phase systems. The FMAC series is designed for use in photovoltaic systems and industrial applications to offer protection against interference voltage form the mains supply. The FMAC series features high symmetrical and asymmetrical attenuation and a wide frequency range offer of 10kHz up to 300MHz.
High attenuation
Screw clamp terminals
Voltage rating 480 and 520 V ac for worldwide acceptance
Qualified for use in equipment according IEC/EN 60950
Screw clamp terminals
Voltage rating 480 and 520 V ac for worldwide acceptance
Qualified for use in equipment according IEC/EN 60950
Standards
IEC 60939, UL 1283
Approvals
VDE, UL
Specifikationer
Attribute | Value |
|---|---|
| Maximum Current Rating | 80A |
| Maximum Voltage Rating | 480 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Screw |
| Number of Phases | 3 |
| Number of Stages | Single Stage |
| Series | FMAC ECO |
| Operating Frequency | 60Hz |
| Length | 80mm |
| Depth | 320mm |
| Capacitance | 4.7µF |
| Height | 135mm |
| Inductance | 550 μH |
| Dimensions | 80 x 320 x 135mm |
| Leakage Current | 11.1 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 1.1mΩ |
| Power Loss | 22W |
| Standards Met | IEC 60939, UL 1283 |
