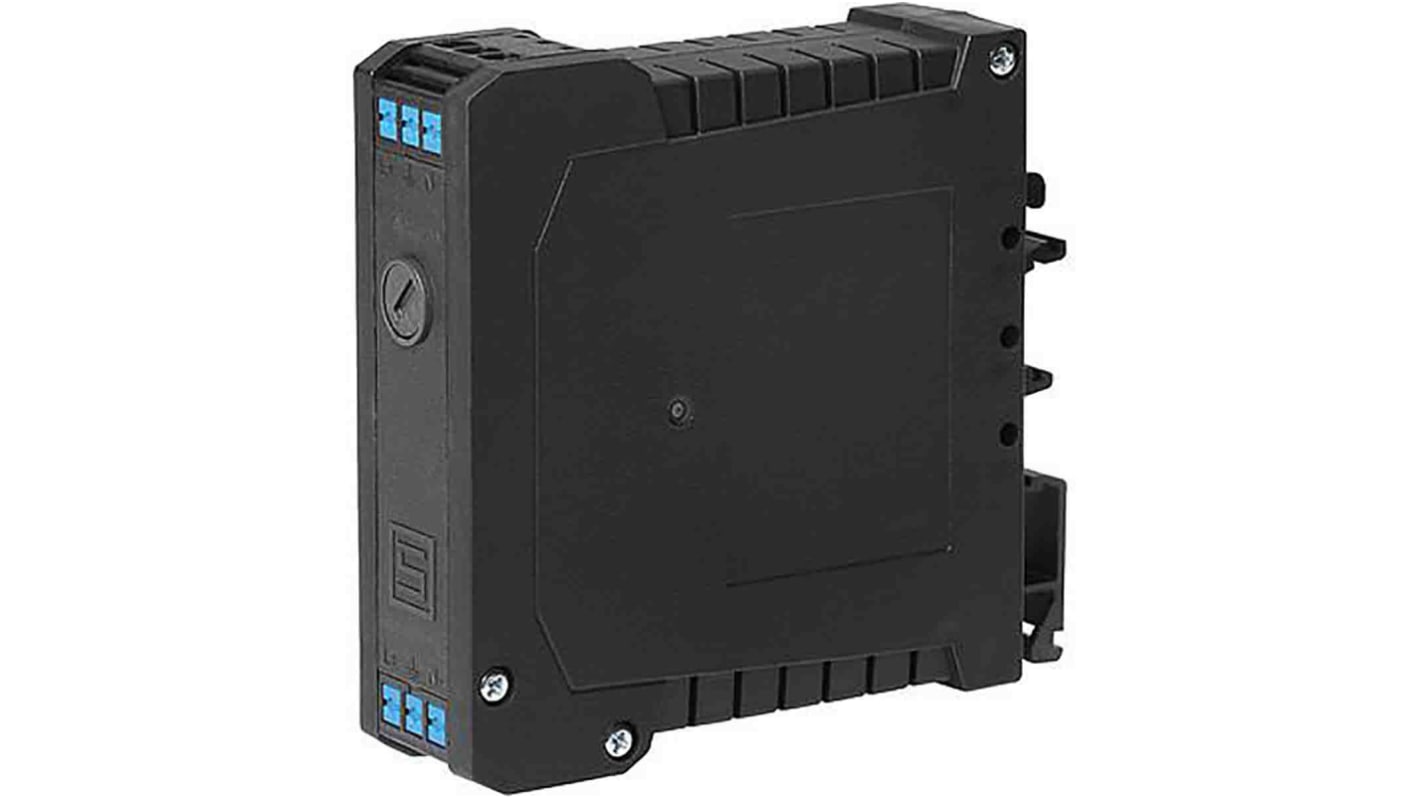

Schurter, FPBB 15A 250 V ac/dc 50Hz, DIN Rail Power Line Filter, Single Phase

RS-artikelnummer:: 188-0384
Tillv. art.nr:: 3-103-713
Tillverkare / varumärke:: Schurter

Schurter, FPBB 15A 250 V ac/dc 50Hz, DIN Rail Power Line Filter, Single Phase

29 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Varje

276,92 kr

(exkl. moms)

346,15 kr

(inkl. moms)

Enheter	Per unit
1 - 4	276,92 kr
5 - 9	269,27 kr
10 - 24	262,06 kr
25 - 49	255,07 kr
50 +	248,64 kr

RS-artikelnummer:: 188-0384
Tillv. art.nr:: 3-103-713
Tillverkare / varumärke:: Schurter

Datablad

Datasheet 3-103-713

Lagstiftning och ursprungsland

COO (Country of Origin):: CN

Produktdetaljer

AC/DC Filter 2-Stage, DIN Rail Mounting, Overcurrent and Overvoltage Protection.

Single-phase line filter in standard and medical versions
2-Stages filter
Very high attenuation
Broadband
Fuse holder
Thermal circuit breaker
Surge protection
Unique Selling Proposition
Slim filter for DIN-rail mounting or chassis mounting
With fuse holder or circuit breaker for equipment
With overvoltage protection
Quick wiring with cage clamp terminals
Characteristics
Protection against interference voltage from the mains
Possible interferences generated in the equipment are strongly attenuated
Especially designed for electric switch and control cabinets

Specifikationer

Attribute	Value
Maximum Current Rating	15A
Maximum Voltage Rating	250 V ac/dc
Mounting Type	DIN Rail
Number of Phases	1
Series	FPBB
Operating Frequency	50 Hz, 60Hz
Length	25mm
Depth	89.5mm
Height	85mm
Dimensions	25 x 89.5 x 85mm
Leakage Current	0.5 mA
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+100°C
Resistance	20mΩ
Power Loss	1.55W
