- RS-artikelnummer:
- 218-0150
- Tillv. art.nr:
- 2623000303002400
- Tillverkare / varumärke:
- Norgren
7 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
4 013,89 kr
(exkl. moms)
5 017,36 kr
(inkl. moms)
Enheter | Per unit |
1 - 4 | 4 013,89 kr |
5 + | 3 933,48 kr |
- RS-artikelnummer:
- 218-0150
- Tillv. art.nr:
- 2623000303002400
- Tillverkare / varumärke:
- Norgren
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer

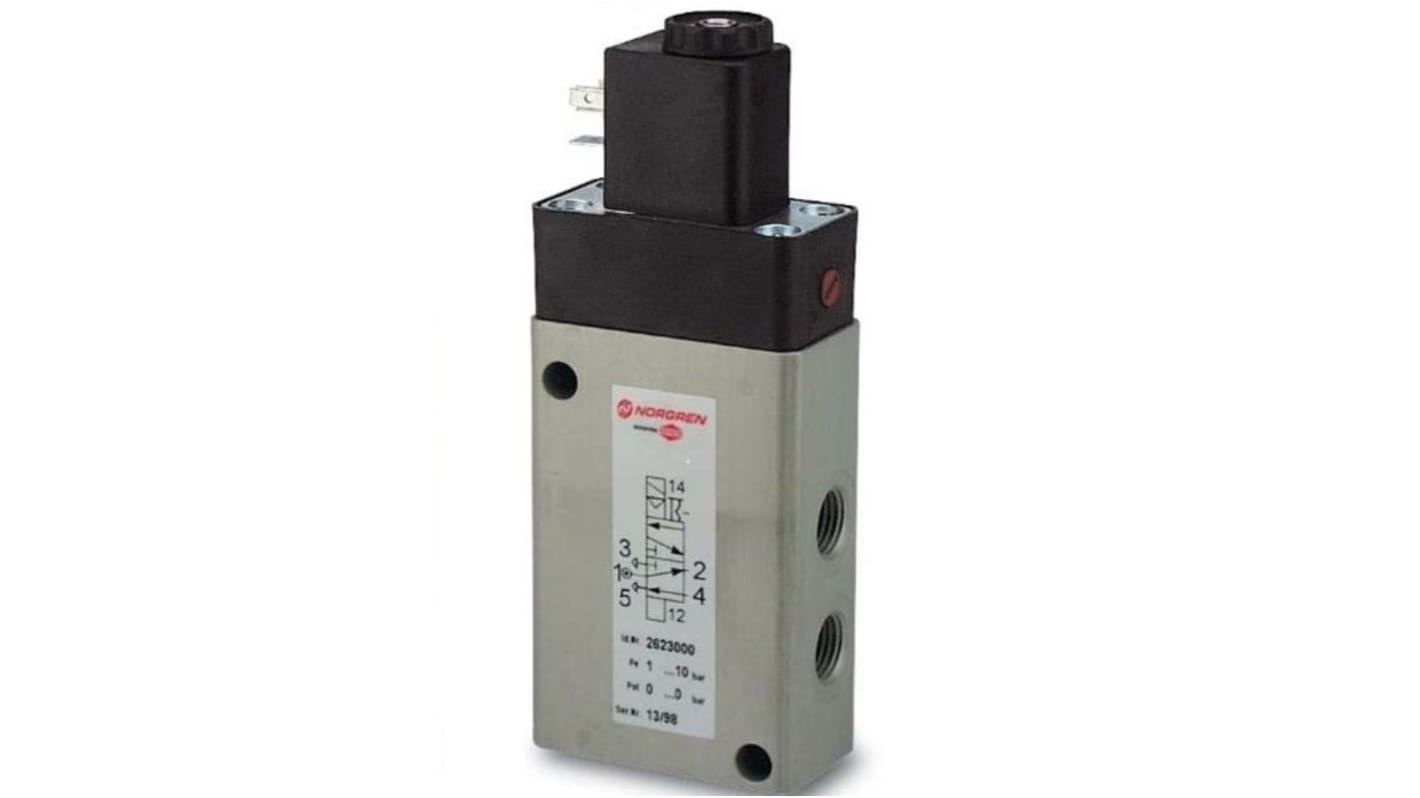

IMI Norgren Pneumatic Solenoid Valve, G1/4 Port, 5/2 Function - 26230 Series - 2623000303002400
This pneumatic solenoid valve from IMI Norgren takes the job of controlling a circuit off your hands. It's an electromagnetic device that's used to stop, start or regulate the passage of compressed air through a system. Thanks to low power consumption of up to 5W, it's an energy-saving option. Compact dimensions of 139.5 (L) x 55 (W) x 30mm (D) mean you can fit it easily into setups with limited space. Thanks to a broad operating temperature range between -10°C to +50°C, it takes care of automated tasks in harsh industrial environments.
Features & Benefits
• Inline mounting makes setup a cinch
• Light weight of 0.4kg for easy handling and minimal strain on the mounting surface
• Aluminium body is resistant to impact and corrosion, for a long service life
• Solenoid/spring actuator operation ensures a fast response time
• Light weight of 0.4kg for easy handling and minimal strain on the mounting surface
• Aluminium body is resistant to impact and corrosion, for a long service life
• Solenoid/spring actuator operation ensures a fast response time
Applications
• Aerospace and defence systems
• Medical devices
• Industrial processing
• Medical devices
• Industrial processing
What's the flow rate of this valve?
The pneumatic solenoid valve has a high flow rate of 1200L/m. This allows for fast and efficient processing of lubricated or non-lubricated compressed air to increase productivity and reduce downtime.
Specifikationer
Attribute | Value |
---|---|
Function | 5/2 |
Connection Port Thread | G 1/4 |
Actuation Type | Solenoid/Spring |
Manufacturer Series | 26230 |
Mounting Style | Inline |
Solenoid Voltage | 24V dc |
Number of Ports | 5 |
Body Material | Aluminium |
Maximum Flow Rate | 1200L/min |
Solenoid Power Consumption | 5W |
Minimum Operating Pressure | 1bar |
Minimum Operating Temperature | -10°C |
Number of Positions | 2 |
Maximum Operating Pressure | 10 bar |
Hazardous Area Certification | ATEX |
Maximum Operating Temperature | +50°C |
Thread Size | 1/4in |
Thread Standard | G |
- RS-artikelnummer:
- 218-0150
- Tillv. art.nr:
- 2623000303002400
- Tillverkare / varumärke:
- Norgren
