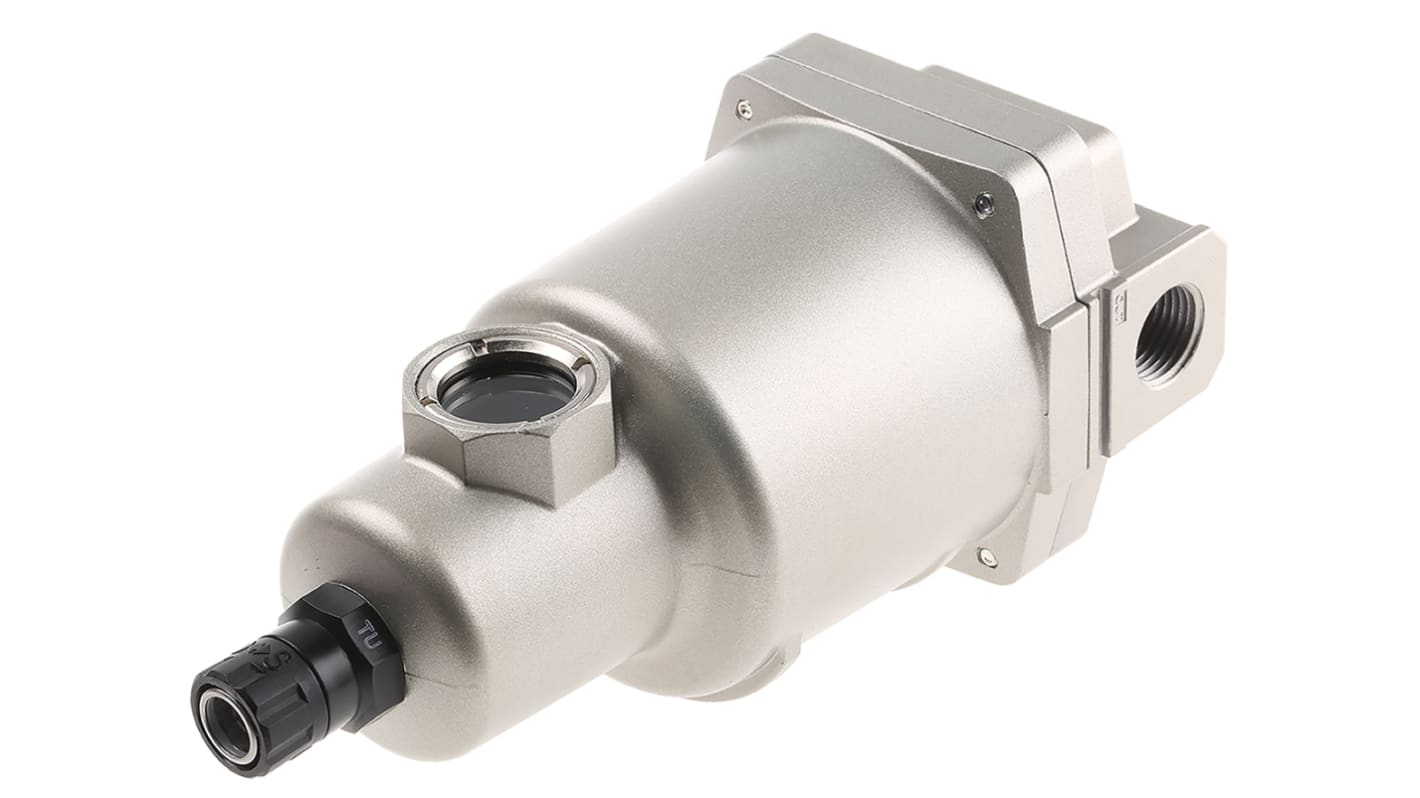

SMC 1500 L/min 0.7Mpa Water Separator, G 1/2 Resin 1/2 in G, +5 → +60°C

  • RS-artikelnummer 244-5332
  • Tillv. art.nr AMG350C-F04D
  • Tillverkare / varumärke SMC
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): JP
Produktdetaljer

SMC in. –1 in. AMG Series

Minimum operating pressure 1.5 bar
Will remove 99.9% of water droplets from an airline system
Automatic drain
Element is resistant to clogging
Modular unit

//media.rs-online.com/t_line/L244490-01.gif
//media.rs-online.com/t_line/LE244490-01.gif
Specifikationer
Attribute Value
Manufacturer Series AMG
Typical Flow 1500 L/min
Typical Flow Rated At 0.7MPa
Port Connection G 1/2
Element Material Resin
Port Connection Thread Size 1/2 in
Minimum Operating Temperature +5°C
Maximum Operating Temperature +60°C
Maximum Operating Pressure 1.5 MPa
Port Connection Thread Standard G
Minimum Operating Pressure 0.15MPa
5 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
1 729,76 kr
(exkl. moms)
2 162,20 kr
(inkl. moms)
Enheter
Per unit
1 +
1 729,76 kr
