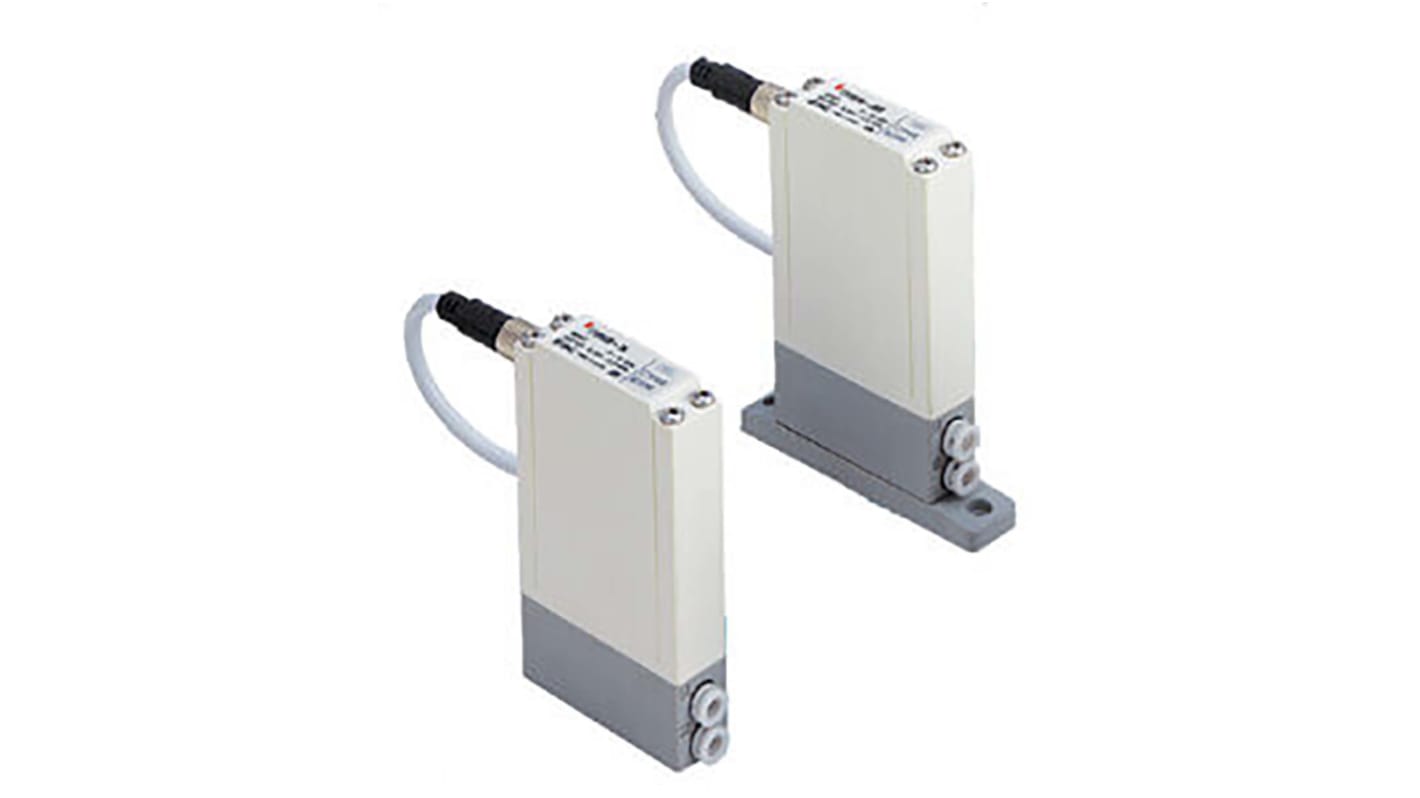

SMC Push In 4 mm Pneumatic Regulator - -1kPa to -100kPa, 4mm, -101kPa max. input
- RS-artikelnummer:
- 196-1236
- Tillv. art.nr:
- ITV0090-3BL
- Tillverkare / varumärke:
- SMC
3 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
3 345,99 kr
(exkl. moms)
4 182,49 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 3 345,99 kr |
| 5 + | 3 212,18 kr |
- RS-artikelnummer:
- 196-1236
- Tillv. art.nr:
- ITV0090-3BL
- Tillverkare / varumärke:
- SMC
Lagstiftning och ursprungsland
- COO (Country of Origin):
- JP
Produktdetaljer
Built-in one-touch fitting
Error indication LED
High stability
High-response time
Compact and lightweight
Error indication LED
High stability
High-response time
Compact and lightweight
Specifikationer
Attribute | Value |
|---|---|
| Port Connection | Push In 4 mm |
| Maximum Outlet Pressure | -100kPa |
| Minimum Outlet Pressure | -1kPa |
| Maximum Input Pressure | -101kPa |
| Manufacturer Series | ITV009 |
| Port Connection Thread Size | 4mm |
| Maximum Flow Rate | 2L/min |
| Port Connection Thread Standard | Metric |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +50°C |
| Overall Width | 15mm |
| Overall Length | 56mm |
| Overall Height | 82mm |
| Overall Dimensions | 56 x 15 x 82mm |
