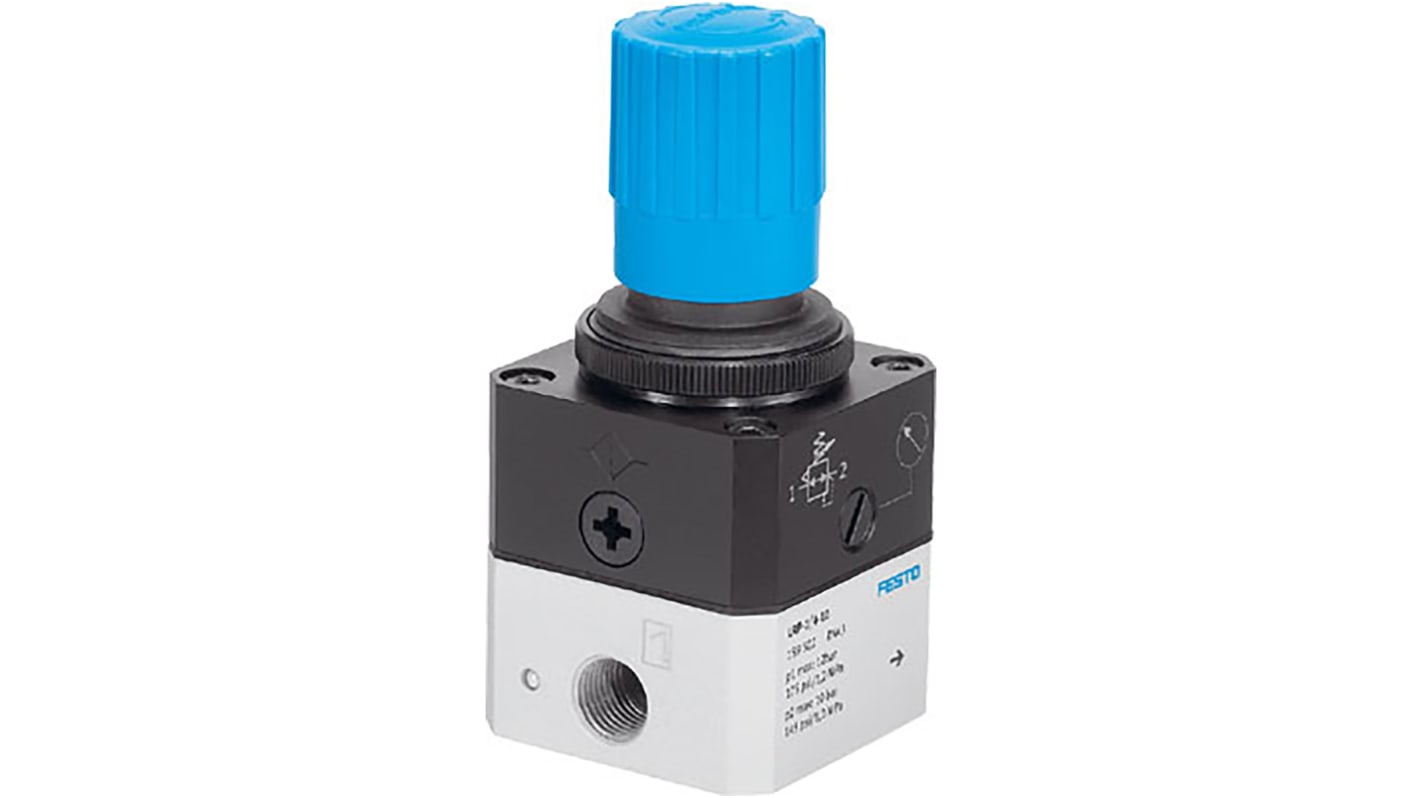

Festo Pneumatic Regulator 800 to 2300L/min G 1/4, 1 to 12bar

  • RS-artikelnummer 125-9902
  • Tillv. art.nr LRP-1/4-0,7
  • Tillverkare / varumärke Festo
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): HU
Produktdetaljer

LRP Series PrLRP Series Precision Pressure Regulatorecision Pressure Regulator

The LRP series of precision pressure regulators by FESTO offer precise pressure adjustment, both in static and dynamic applications. The regulator benefits from good response characteristics during rapid changes to the operating pressure and flow rate.

Features and Benefits

  • Suitable for sensitive applications requiring a hysteresis of 0.02 bar

  • In the event of a failure of the compressed air supply, the outlet pressure is vented via a connection to the secondary venting

  • The outlet pressure can be set within the pressure regulation range

  • Operating pressure fluctuations are almost entirely compensated

  • The regulating valve has a pilot-actuated precision constructional design

LRP-1/4-0,7 Precision Pressure Regulator

  • G1/4 pneumatic connection

  • Rotary knob actuator lock

  • Piloted precision diaphragm regulator design structure

  • Standard nominal flow rate of 800 I/min

  • The regulator can either be mounted using front panel installation or line installation

  • Aluminium housing materials which conform to RoHS

Regulators and Filter Regulators

Specifikationer
Attribute Value
Port Connection G 1/4
Minimum Outlet Pressure 1bar
Maximum Outlet Pressure 12bar
Maximum Input Pressure 7bar
Port Connection Thread Size 1/4 in
Maximum Flow Rate 2300L/min
Typical Flow Rate 800 to 2300L/min
Port Connection Thread Standard G
Minimum Operating Temperature -10°C
Maximum Operating Temperature +60°C
Overall Width 50mm
Overall Dimensions 50 x 50 x 111mm
Overall Height 111mm
Overall Length 50mm
1 I lager för leverans inom 1 arbetsdagar
Inom 2 arbetsdag(ar) (UK lager)
Pris (ex. moms) Each
2 220,79 kr
(exkl. moms)
2 775,99 kr
(inkl. moms)
Enheter
Per unit
1 +
2 220,79 kr
