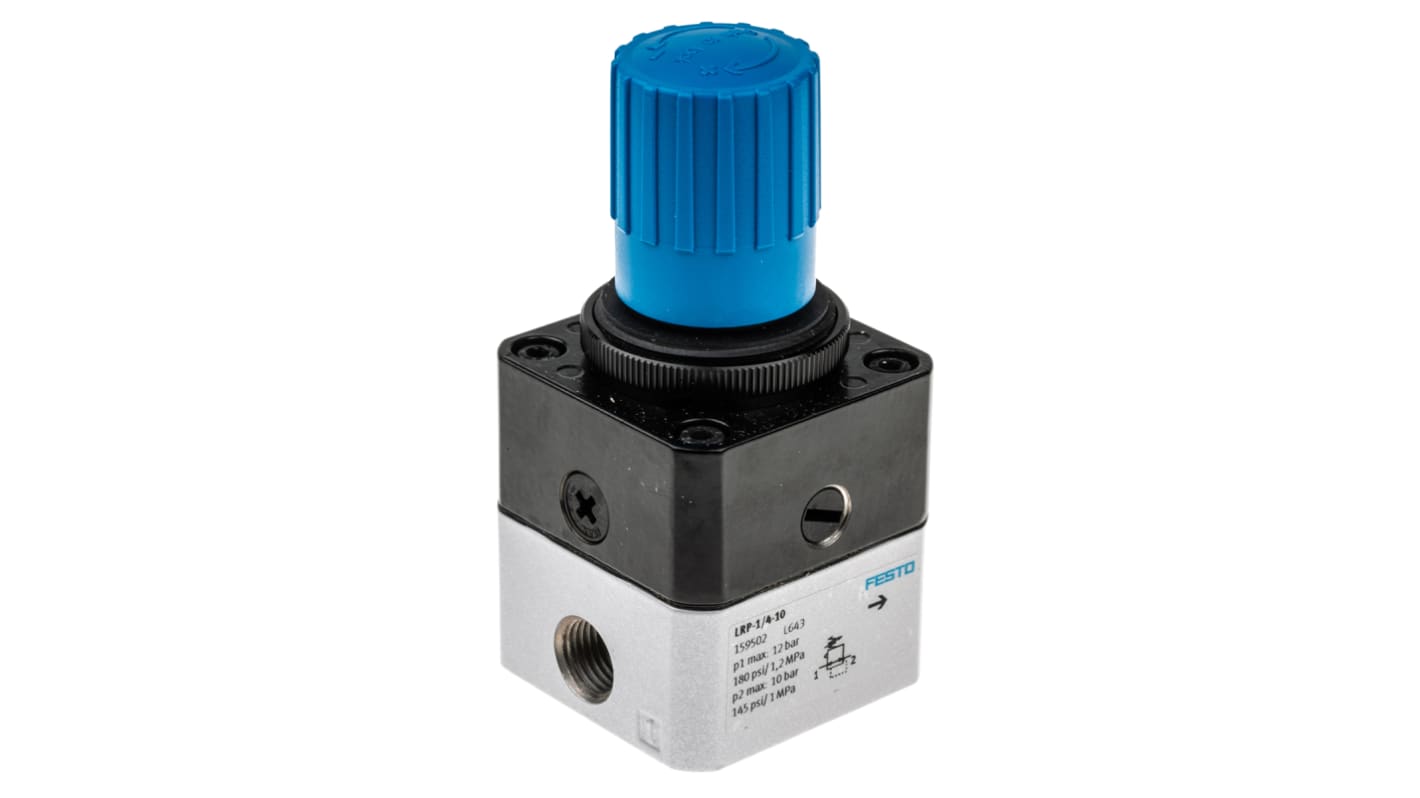

Festo G 1/4 Pneumatic Regulator 0.1bar to 10bar, LRP-1/4-10
6 I lager för leverans inom 1 arbetsdagar
Inom 2 arbetsdag(ar) (UK lager)
Lagt till varukorgen
- RS-artikelnummer:
- 121-5640
- Tillv. art.nr:
- LRP-1/4-10
- Tillverkare / varumärke:
- Festo
- COO (Country of Origin):
- HU
| Enheter | Per unit |
| 1 - 4 | 1 913,86 kr |
| 5 - 9 | 1 837,30 kr |
| 10 + | 1 760,76 kr |
<B>LRP Series PrLRP Series Precision Pressure Regulatorecision Pressure Regulator</B>
<B>Features and Benefits </B>
<B>LRP-1/4-10 Precision Pressure Regulator </B>
| Attribute | Value |
| Port Connection | G 1/4 |
| Minimum Outlet Pressure | 0.1bar |
| Maximum Outlet Pressure | 10bar |
| Maximum Input Pressure | 12bar |
| Pressure Gauge Port Size | G 1/4 |
| Port Connection Thread Size | 1/4 in |
| Pressure Gauge Port Thread Size | 1/4 in |
| Maximum Flow Rate | 2300L/min |
| Typical Flow Rate | 2300L/min |
| Port Connection Thread Standard | G |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +60°C |
| Overall Dimensions | 50 x 50 x 111mm |
| Overall Length | 50mm |
| Overall Height | 111mm |
| Pressure Gauge Port Thread Standard | G |
| Overall Width | 50mm |
