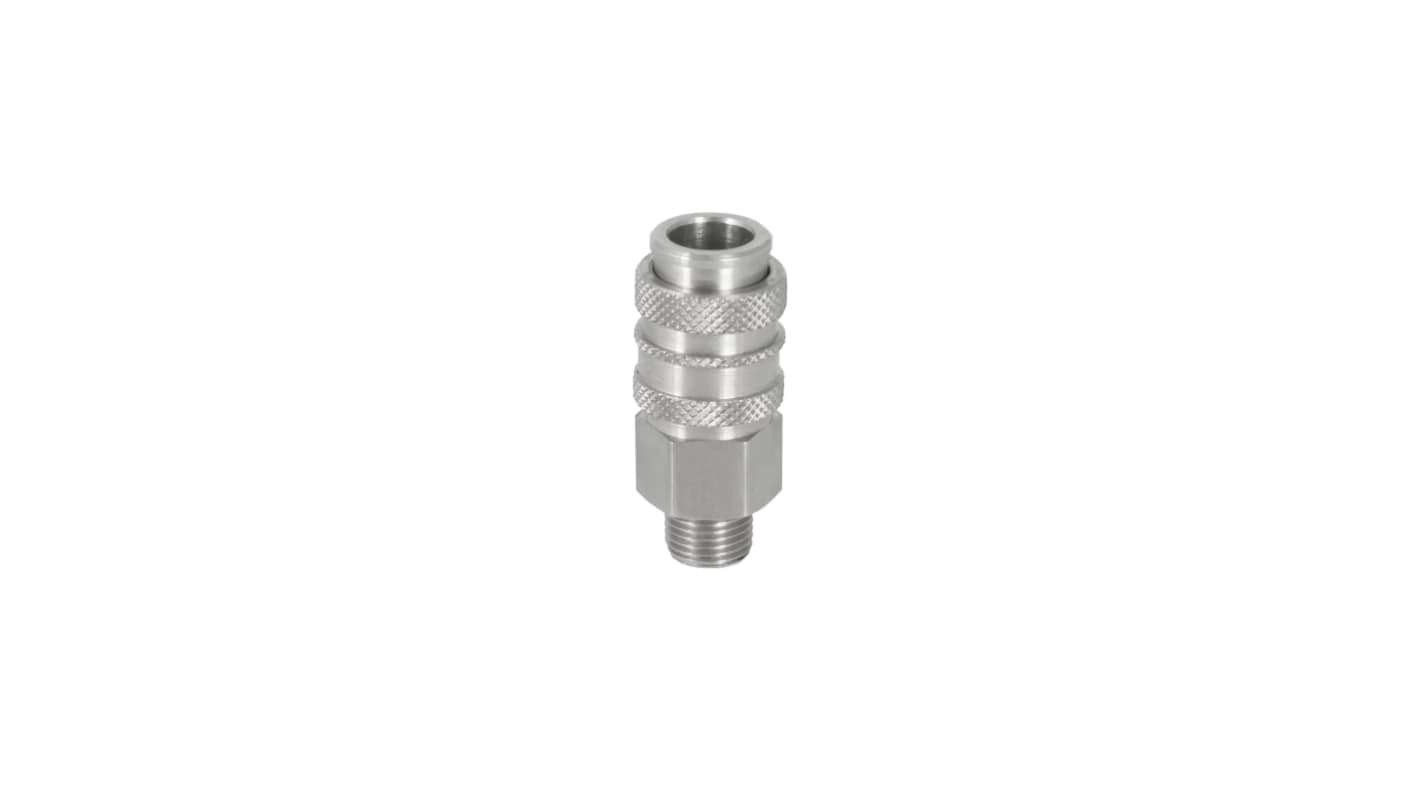

RS PRO Pneumatic Quick Connect Coupling Brass 1/4 in Threaded

  • RS-artikelnummer 667-1844
  • Tillverkare / varumärke RS PRO
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): TR
Produktdetaljer

Series 21 Connectors

Series 21 Connectors

Miniature pattern connectors, suitable for many applications including small air tools, dental equipment, robotics and automation. Small body dimensions with high flow rate and low pressure drop. Maximum operating pressure 35 bar and temperature range is -20°C to +100°C. All couplings are of the single shut-off type and all allow one handed operation. Interchangeable with Rectus Series 21.

Specifikationer
Attribute Value
Connection Standard Camozzi, Legris, Rectus 21, Rectus 90
Coupling Gender Male
Threaded Connection G 1/4 Male
Manufacturer Series 21
Connection Type Threaded
Thread Size 1/4in
Material Brass
Thread Gender Male
Thread Standard G
Maximum Operating Pressure 35 bar
Finish Nickel Plated
Seal Material Nitrile Rubber
Minimum Operating Temperature -20°C
Maximum Operating Temperature +100°C
429 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
67,66 kr
(exkl. moms)
84,58 kr
(inkl. moms)
Enheter
Per unit
1 - 4
67,66 kr
5 - 9
64,92 kr
10 +
62,28 kr
