Festo Pneumatic Quick Connect Coupling Brass 1/4in Threaded

  • RS-artikelnummer 181-6157
  • Tillv. art.nr KD4-1/4-I
  • Tillverkare / varumärke Festo
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): DE
Produktdetaljer

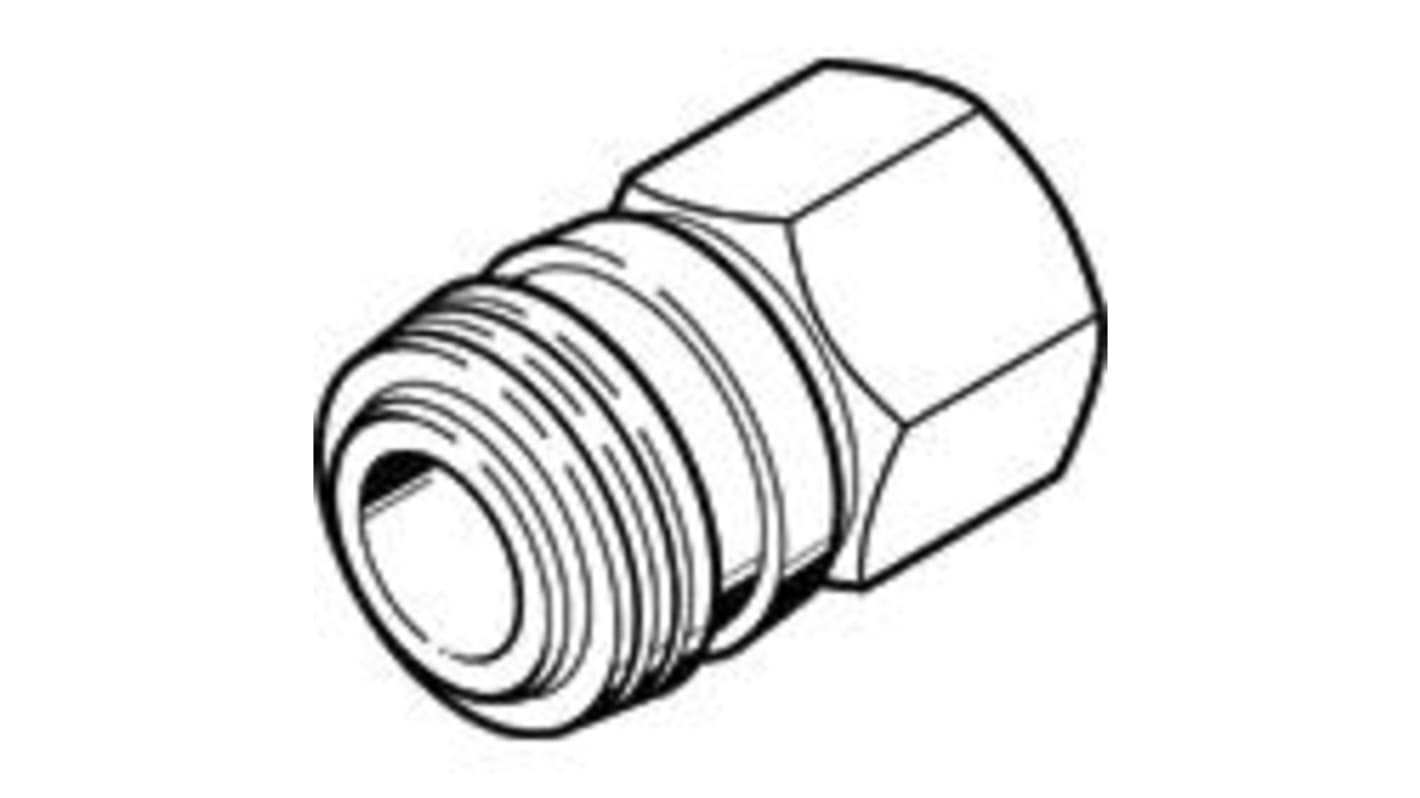

Festo Pneumatic Quick Connect Coupling Socket

The Festo pneumatic quick connect female coupling socket is self-closing, with a nominal size of 7.2mm. It is made from nickel plated brass. This coupling socket has a G female threaded end connection. Plug-in coupling with quick coupling socket KD and quick coupling plug KS, shut-off at one or both ends. You need to push the plug into the socket to lock the coupling. The plug automatically engages with an audible click when in a specific position. To unlock, push the releasing sleeve. Its weight is 88g. Socket has standard nominal flow rate of 1130l/min.

Features and Benefits

• Tolerance for nominal tightening torque is ±15%
• Operating temperature ranges between -10°C and 60°C
• Class 1 corrosion resistance
• Lubricated operation reduces friction

Applications

• Dry indoor applications
• Used for transport application
• Storage protection
• Used in chemical fertilizer pipe

Certifications

• ISO8573-1:2010

Specifikationer
Attribute Value
Coupling Gender Female
Threaded Connection G 1/4 Female
Manufacturer Series KD4
Connection Type Threaded
Thread Size 1/4in
Material Brass
Thread Gender Female
Thread Standard G
Maximum Operating Pressure 12 bar
Finish Nickel Plated
Minimum Operating Temperature -10°C
Maximum Operating Temperature +60°C
I lager för leverans inom 2 arbetsdagar
Pris (ex. moms) Each
123,98 kr
(exkl. moms)
154,98 kr
(inkl. moms)
Enheter
Per unit
1 - 4
123,98 kr
5 - 9
119,04 kr
10 +
114,10 kr
Nästa dag-leverans inte möjlig
