Festo Pressure Sensor, 30V dc, IP65, IP67 10bar

RS-artikelnummer:: 175-2202
Tillv. art.nr:: SPAU-P10R-H-G18FD-L-PNLK-PNVBA-M8U
Tillverkare / varumärke:: Festo

Festo Pressure Sensor, 30V dc, IP65, IP67 10bar

2 I lager för avsändande samma dag

10 Inom 1 arbetsdag(ar) (UK lager)

Lagt till varukorgen

Pris (ex. moms) Varje

1 476,02 kr

(exkl. moms)

1 845,02 kr

(inkl. moms)

Enheter	Per unit
1 +	1 476,02 kr

RS-artikelnummer:: 175-2202
Tillv. art.nr:: SPAU-P10R-H-G18FD-L-PNLK-PNVBA-M8U
Tillverkare / varumärke:: Festo

Datablad

Lagstiftning och ursprungsland

RoHS-status: Inte relevant

COO (Country of Origin):: BG

Produktdetaljer

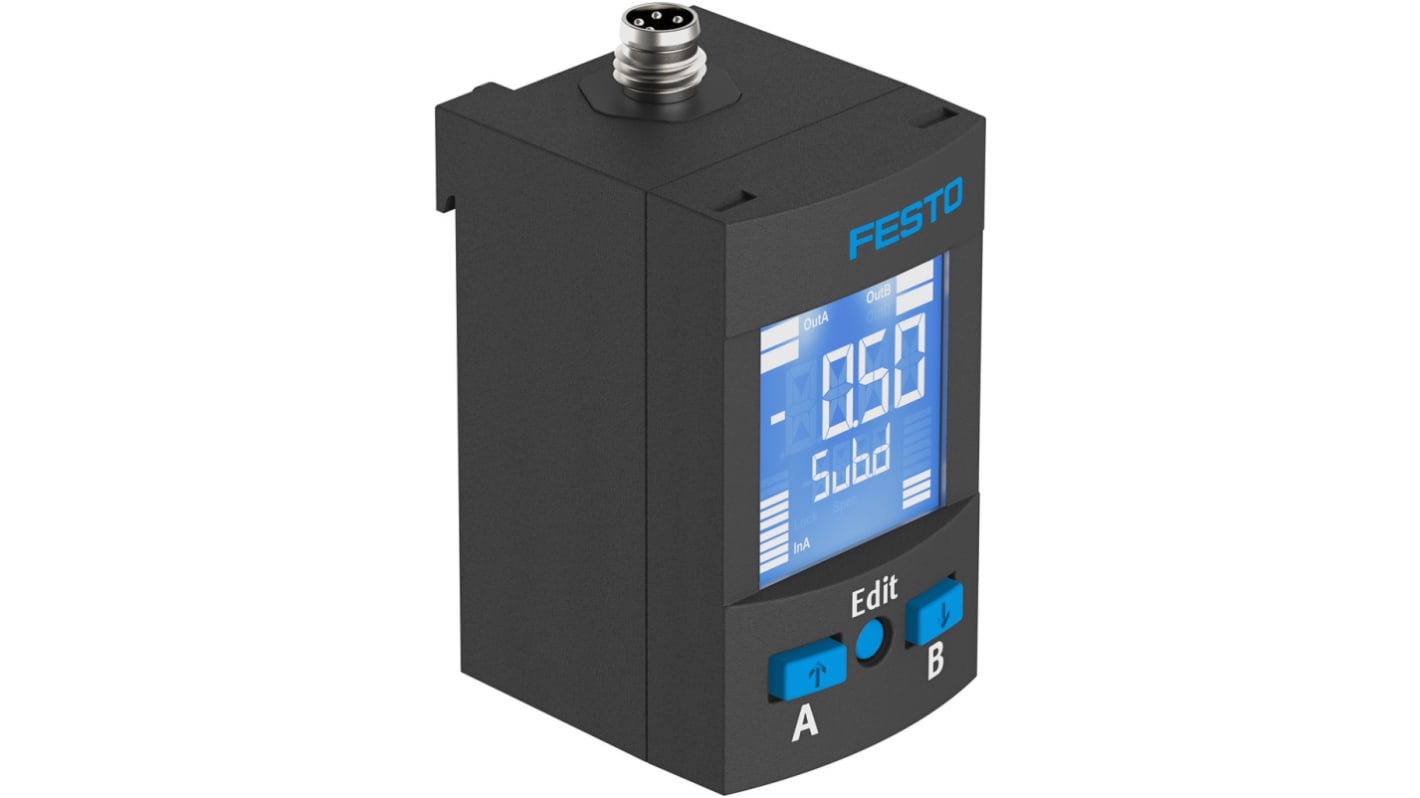

Festo Pressure Sensor

The Festo SPAU series pressure sensor is designed to monitor pressure of compressed air and non-corrosive gases. It works on 30V supply voltage. The sensor measures the pressure in range of 0bar to 10bar. It has a switchable element function with normally open or closed contact. The sensor has a G1/8 top pneumatic connection.

Features and Benefits

• Service temperature ranges between 0°C and 50°C
• Input signal converted to digital switching signal
• Switching electrical output is of NPN or PNP type
• Accuracy is ±1.5% FS
• Top-hat rail mounting with female thread
• M8x1 4-pin round plug connector electrical connection
• Illuminated LCD display

Applications

• Network and regulator monitoring
• Air-pressure test
• Object detection via back pressure

Certifications

• UL approved
• IP65 rated
• IP67 rated

Specifikationer

Attribute	Value
Suitable Media	Air, Gas
Maximum Operating Pressure	10bar
Minimum Operating Pressure	0bar
Port Connection	G 1/8
Supply Voltage	30V dc
IP Rating	IP65, IP67
Minimum Operating Temperature	0°C
Maximum Operating Temperature	+50°C

RS-artikelnummer:: 175-2202
Tillv. art.nr:: SPAU-P10R-H-G18FD-L-PNLK-PNVBA-M8U
Tillverkare / varumärke:: Festo
