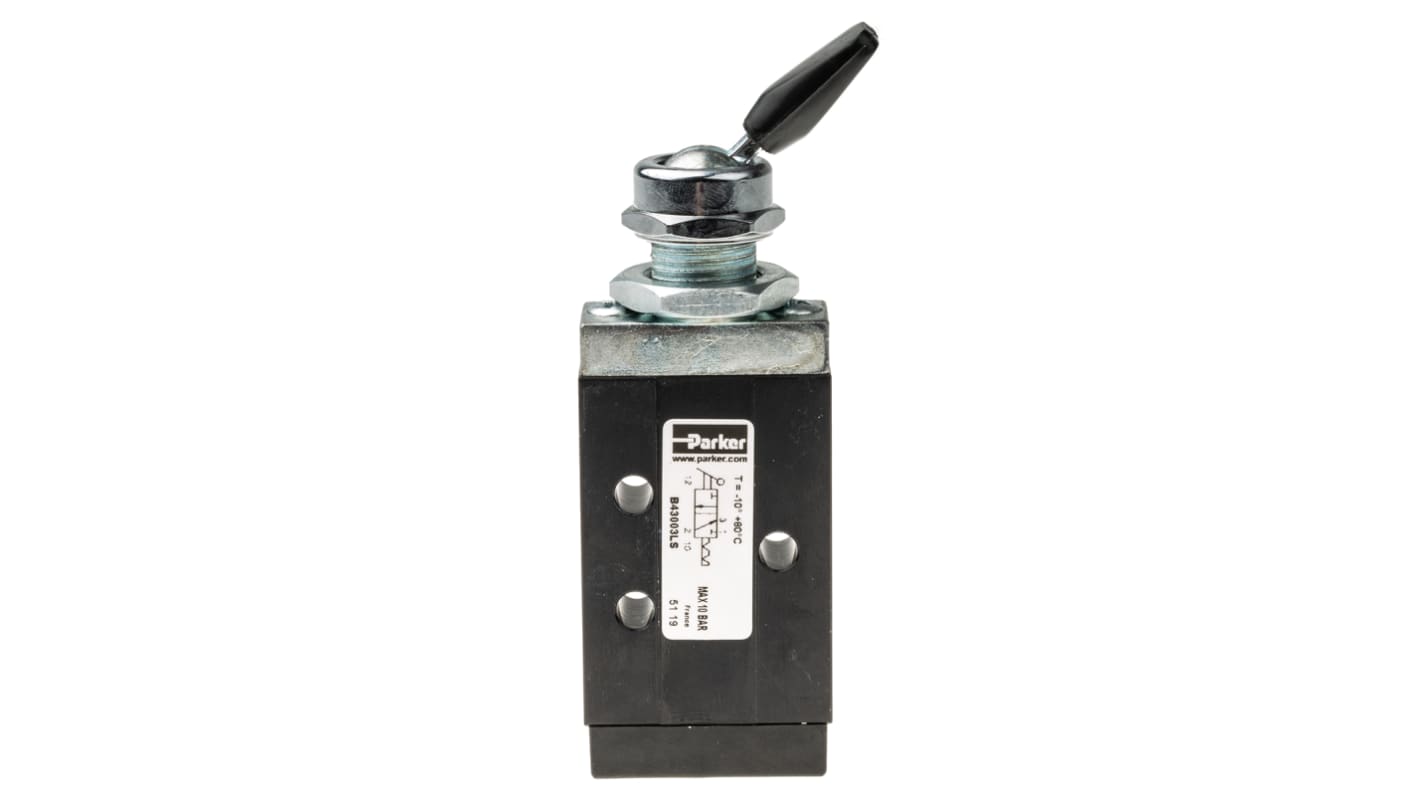

Parker Lever 3/2 Pneumatic Manual Control Valve B43 Series

  • RS-artikelnummer 389-6630
  • Tillv. art.nr B43003LS
  • Tillverkare / varumärke Parker
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
Produktdetaljer

Toggle Valve

Stainless steel spool giving long, trouble free service life
Viton seals as standard
Suitable for positive pressure or vacuum line applications

Specifikationer
Attribute Value
Control Mechanism Lever
Function 3/2
Connection Port Thread G 1/8
Thread Size 1/8in
Thread Standard G
Manufacturer Series B43
Maximum Operating Pressure 10 bar
Body Material Die Cast Zinc
Maximum Flow Rate 510L/min
Minimum Operating Temperature -10°C
Maximum Operating Temperature +80°C
Number of Ports 3/2
5 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
563,68 kr
(exkl. moms)
704,60 kr
(inkl. moms)
Enheter
Per unit
1 - 4
563,68 kr
5 - 9
541,13 kr
10 +
518,58 kr
