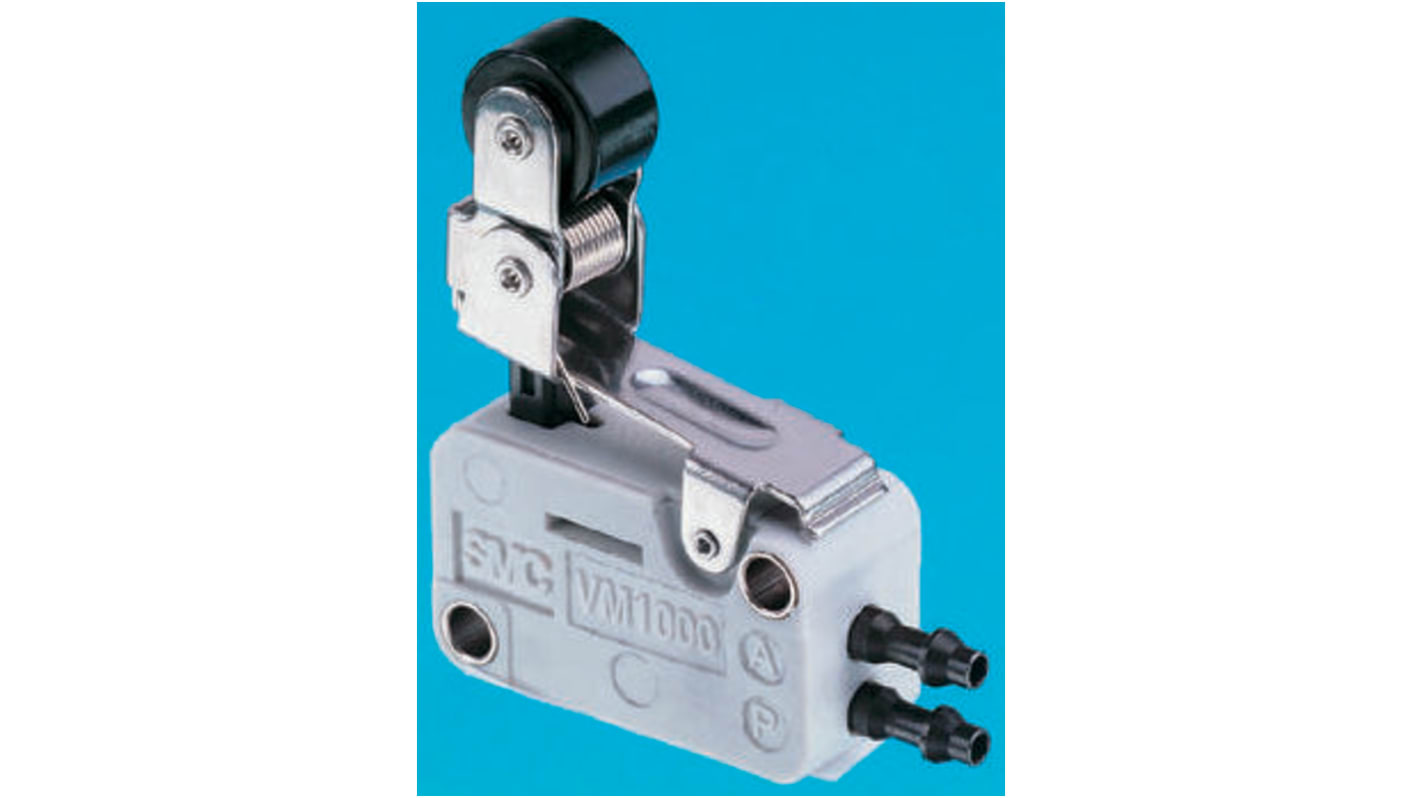

SMC Roller Lever 3/2 Pneumatic Manual Control Valve VM1000 Series

  • RS-artikelnummer 192-9126
  • Tillv. art.nr VM1000-4N-02
  • Tillverkare / varumärke SMC
Datablad
Lagstiftning och ursprungsland
Uppfyller ej
COO (Country of Origin): JP
Produktdetaljer

One Way Trip Valve

3//2 normally closed valves with a CV 0.055 flow. Each valve incorporates built in hose nipple connection suitable for Ø4mm OD, 2.5mm ID tube
Dedicated valves must be used for nylon or polyurethane tubing
These valves are interchangeable with V3 electrical switches

//media.rs-online.com/t_line/L192912-01.gif
//media.rs-online.com/t_line/L192912-02.gif
Specifikationer
Attribute Value
Control Mechanism Roller Lever
Function 3/2
Manufacturer Series VM1000
Maximum Operating Pressure 0.8 MPa
Body Material PBT
Maximum Flow Rate 49.03NL/min
Minimum Operating Temperature -5°C
Maximum Operating Temperature +60°C
Number of Ports 3/2
6 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
184,87 kr
(exkl. moms)
231,09 kr
(inkl. moms)
Enheter
Per unit
1 - 4
184,87 kr
5 - 9
179,23 kr
10 +
173,44 kr
