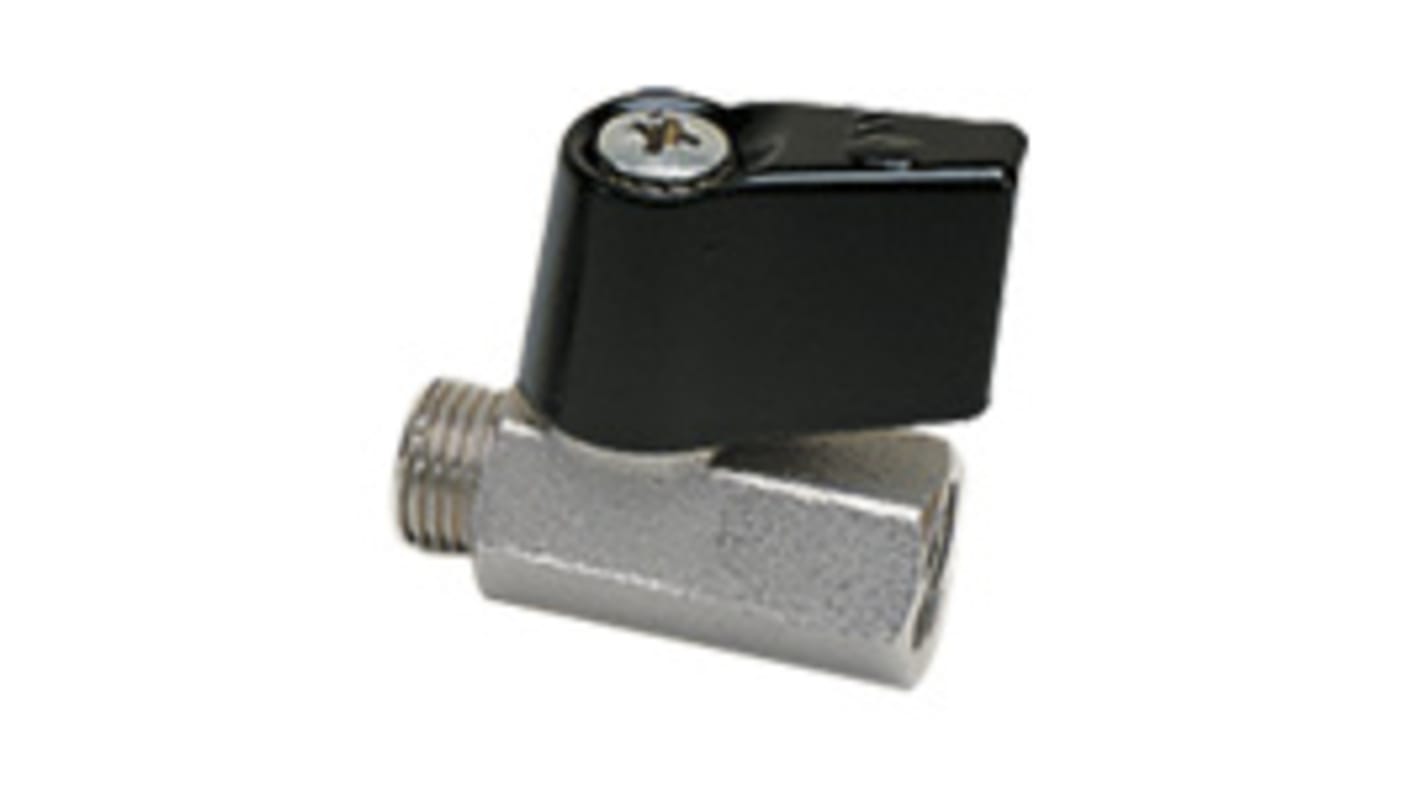

Legris Standard Lever Pneumatic Manual Control Valve 0491 Series

  • RS-artikelnummer 146-6937
  • Tillv. art.nr 0491 04 13 64
  • Tillverkare / varumärke Legris
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): FR
Produktdetaljer

Compact ball valve for opening and closing fluid systems in tight spaces. Very compact, Good chemical compatibility.

Specifikationer
Attribute Value
Control Mechanism Standard Lever
Connection Port Thread G 1/4
Thread Size 1/4in
Thread Standard G
Manufacturer Series 0491
Control Button/Switch Colour Black
Maximum Operating Pressure 12 bar
Body Material Brass
Minimum Operating Temperature -20°C
Maximum Operating Temperature +80°C
Number of Ports 2
Number of Positions 2
15 I lager för leverans inom 1 arbetsdagar
Inom 2 arbetsdag(ar) (UK lager)
Pris (ex. moms) 1 Pack of 1
167,82 kr
(exkl. moms)
209,78 kr
(inkl. moms)
Förpackning(ar)
1 +
167,82 kr
