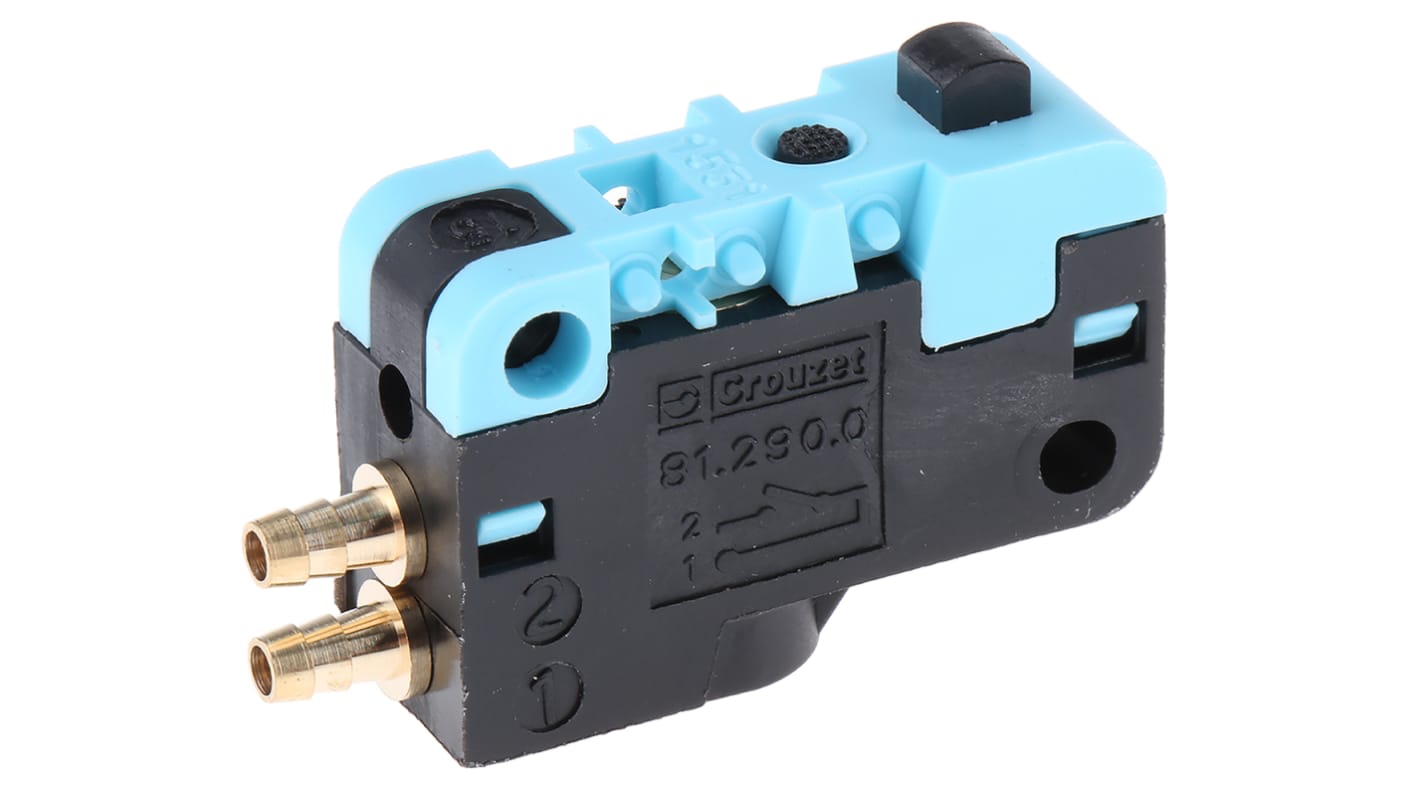

Crouzet Plunger 3/2 Pneumatic Manual Control Valve 81 Series

  • RS-artikelnummer 777-047
  • Tillv. art.nr 81290001
  • Tillverkare / varumärke Crouzet
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): MA
Produktdetaljer

4mmØ 3//2 Micro Series Valves

A low force microswitch, requiring only a 50g activation force at 6bar.

Will also accept all microswitch actuators
Built in hose nipple connection suitable for Ø4mm OD, 2.5mm ID tube
Interchangeable with V3 electrical switches
Pressure Range: 2 to 8 bar
Temperature range: -10 to + 60°C

//media.rs-online.com/t_line/L777031-01.gif
//media.rs-online.com/t_line/LF777031-99.gif
Specifikationer
Attribute Value
Control Mechanism Plunger
Function 3/2
Manufacturer Series 81
Maximum Operating Pressure 8 bar
Maximum Flow Rate 100NL/min
Minimum Operating Temperature -10°C
Maximum Operating Temperature +60°C
Number of Ports 3/2
