- RS-artikelnummer:
- 212-9253
- Tillv. art.nr:
- L82M-3GP-EPN
- Tillverkare / varumärke:
- Norgren
1 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
569,43 kr
(exkl. moms)
711,79 kr
(inkl. moms)
Enheter | Per unit |
1 - 4 | 569,43 kr |
5 - 9 | 546,67 kr |
10 + | 523,81 kr |
- RS-artikelnummer:
- 212-9253
- Tillv. art.nr:
- L82M-3GP-EPN
- Tillverkare / varumärke:
- Norgren
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- MX
Produktdetaljer

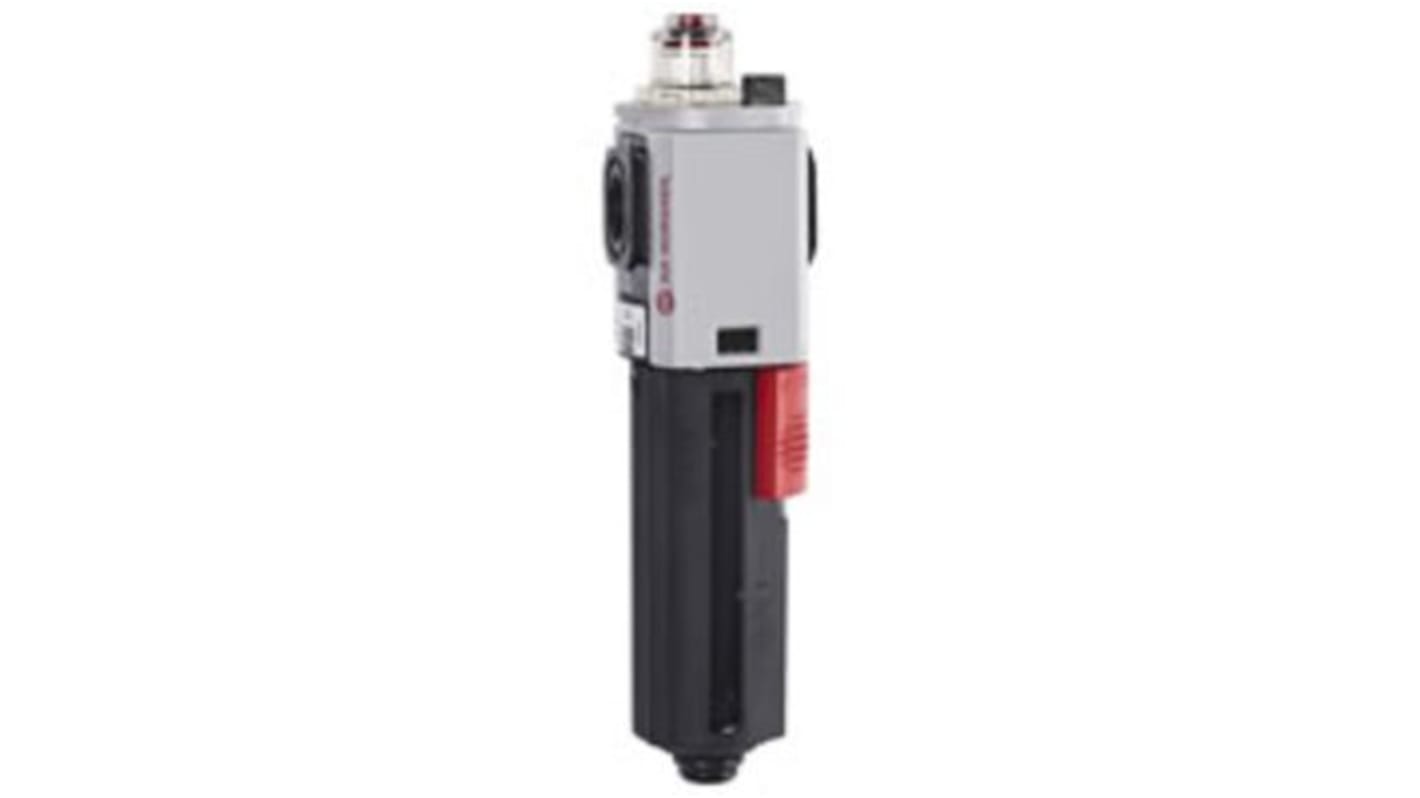

IMI Norgren Pneumatic Air Lubricator, 0.3 to 10 Bar Operating Pressure Range, 220g Weight - Excelon Plus Series - L82M-3GP-EPN
To help your air-powered machinery shrug off mechanical wear, install this pneumatic air lubricator from IMI Norgren. By delivering a steady stream of oil mist into the airflow, the unit cuts the risk of friction out of the picture and minimises wear. It comes with a transparent bowl that holds the oil, so you can see at a glance when it needs topping up. An integrated double safety lock on the bowl helps keep it safe from tampering.
Features & Benefits
• Built-in flow sensor regulates oil ratio to suit different flow rates
• Robust bowl is made from polycarbonate to resist impact and chemicals
• Broad operating pressure range from 0.3 to 10 bar for versatility
• Die-cast zinc housing resists corrosion
• Robust bowl is made from polycarbonate to resist impact and chemicals
• Broad operating pressure range from 0.3 to 10 bar for versatility
• Die-cast zinc housing resists corrosion
Applications
• Conveyor systems
• Textile manufacturing
• Water treatment facilities
• Textile manufacturing
• Water treatment facilities
What's the operating temperature range of this lubricator?
A broad operating temperature range from -10°C to +60°C makes this a safe option for use in challenging environments.
How do I mount the unit?
Thanks to its standard threaded G3/8 connection, you can mount the lubricator by simply screwing it into an open port in your pneumatic system.
Specifikationer
Attribute | Value |
---|---|
Port Connection | G 3/8 |
Manufacturer Series | Excelon Plus |
Fill Under Pressure | Yes |
Port Connection Thread Standard | G |
Maximum Operating Pressure | 10 bar |
Maximum Operating Temperature | +60°C |
Minimum Operating Temperature | -10°C |
Bowl Material | Polycarbonate |
