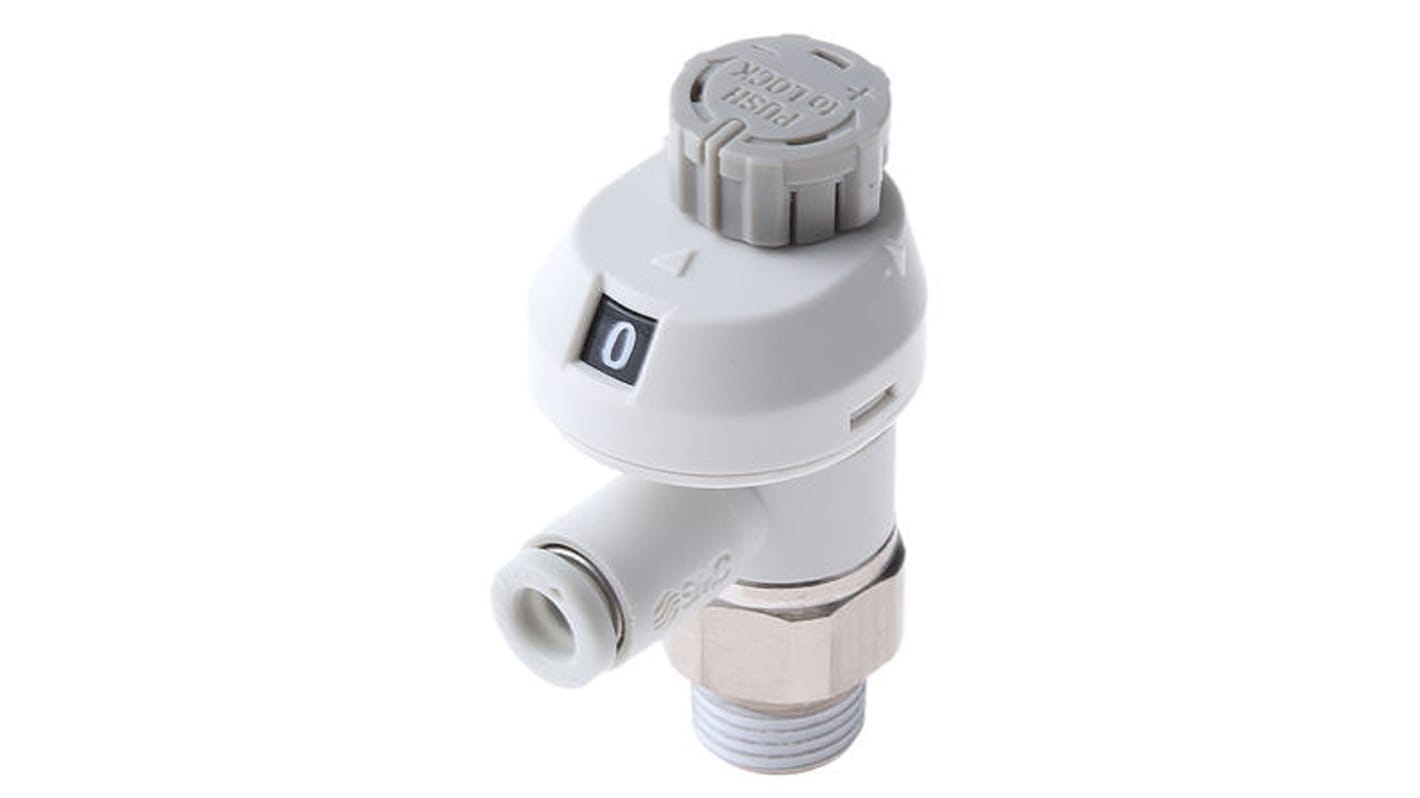

SMC AS1211FS Series Speed Controller, M5 x 0.8 Male Inlet Port x 6mm Tube Outlet Port

  • RS-artikelnummer 124-3809
  • Tillv. art.nr AS1211FS-M5-06
  • Tillverkare / varumärke SMC
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): JP
Produktdetaljer

Flow Regulator, AS-FS Series

Elbow type meter-out flow controllers suitable for nylon, soft nylon, polyurethane, FEP and PFA tube.
A numeric indicator gives quick and visual indication of the chosen flow setting reducing both errors and setting time and the large snap-lock handle makes changes and adjustments simple.
Colour coding on both the setting dial and tube insert makes it easy to distinguish between meter-in/meter-out and metric and imperial types.

Features and Benefits

Wide viewing angle
High corrosion resistance
Easy to assemble and install
Reduced setting time
Easy identification using the different available colours

Applications

The AS-FS flow regulator is suitable for all general industrial and machining pneumatics applications where accurate and easy setting of actuator are required.

Flow Regulators & Restrictors - SMC

Regulators for controlling the flow of compressed air to pneumatic actuators. SMC’s AS series speed controllers have a larger, push-pull locking dial making precise adjustment and control easy and reducing the setting time by half. Available to suit a range of tubing diameters.

Specifikationer
Attribute Value
Manufacturer Series AS1211FS
Inlet Port Type Threaded
Threaded Inlet Port M5 x 0.8 Male
Outlet Port Type Tube
Tube Outlet Port 6mm
Minimum Outlet Pressure 0.1MPa
Maximum Outlet Pressure 1MPa
Threaded Inlet Thread Gender Male
Threaded Inlet Thread Standard Metric
Body Material Brass
Threaded Inlet Thread Size M5 x 0.8
Proof Pressure 1.5MPa
I lager för leverans inom 2 arbetsdagar
Pris (ex. moms) Each
100,02 kr
(exkl. moms)
125,02 kr
(inkl. moms)
Enheter
Per unit
1 +
100,02 kr
Nästa dag-leverans inte möjlig
