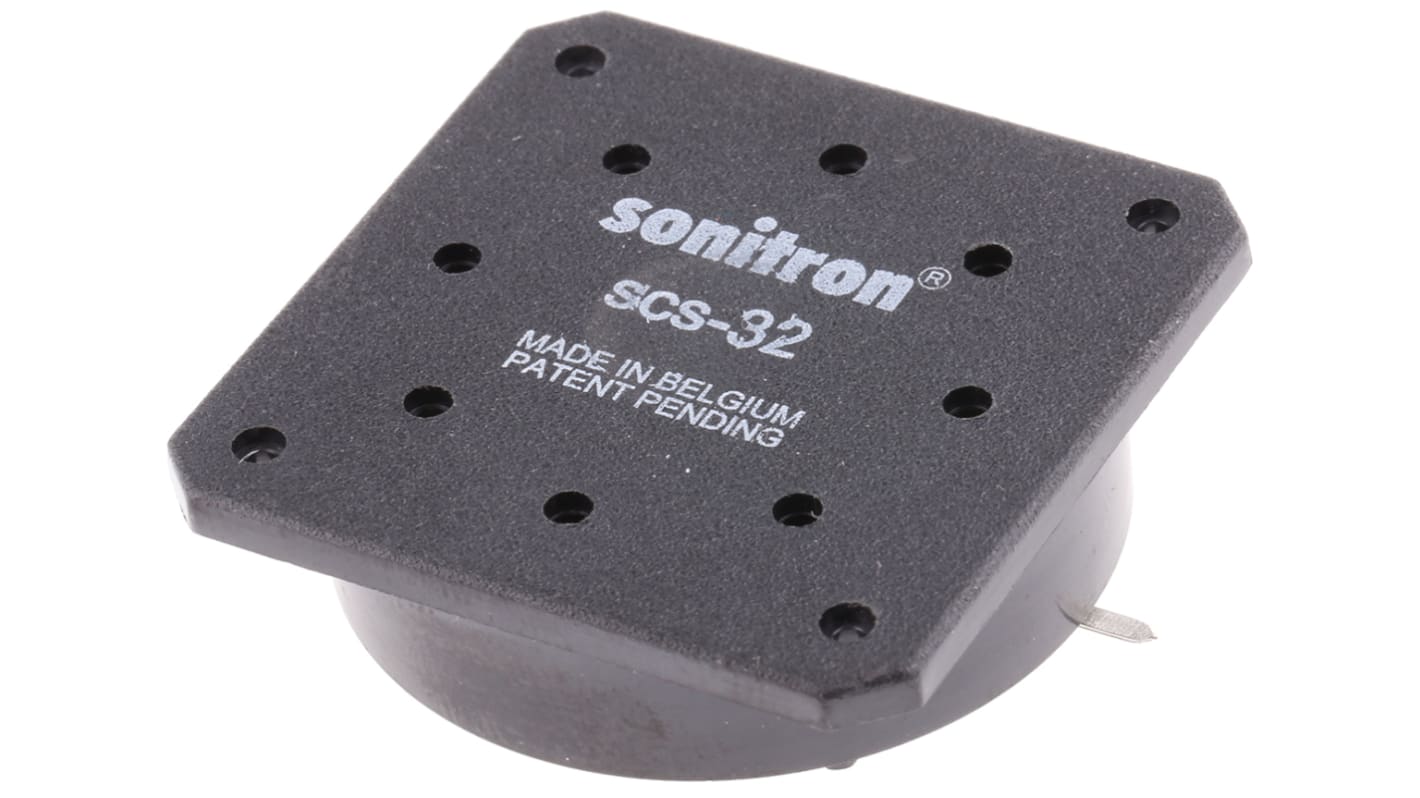

Sonitron Piezoelectric Miniature Speaker, 80dB, 500 → 8000 Hz, 66nF, 32.4 (Dia.) x 9.7mm

RS-artikelnummer:: 805-5294
Tillv. art.nr:: SCS-32-S SP02 FP
Tillverkare / varumärke:: Sonitron

Sonitron Piezoelectric Miniature Speaker, 80dB, 500 → 8000 Hz, 66nF, 32.4 (Dia.) x 9.7mm

16 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Varje

137,18 kr

(exkl. moms)

171,48 kr

(inkl. moms)

Enheter	Per unit
1 - 4	137,18 kr
5 - 9	130,31 kr
10 - 24	123,32 kr
25 +	116,56 kr

RS-artikelnummer:: 805-5294
Tillv. art.nr:: SCS-32-S SP02 FP
Tillverkare / varumärke:: Sonitron

Datablad

Lagstiftning och ursprungsland

COO (Country of Origin):: BE

Produktdetaljer

Square Piezoceramic Speaker SMT mount

A selection of piezocermic speakers designed for surface mounting. Utilising a ceramic disk that reacts to voltage differentiation, the piezocermic speaker combines very small current consumption with a high volume output.

Features and Benefits:

• Piezo transducer speakers
• Panel mountable
• SMT pad connections
• Requires external circuitry to operate

Piezo-electric - Panel Mount with Pad connections

Specifikationer

Attribute	Value
Frequency Range	500 → 8000 Hz
Capacitance	66nF
Sound Level	80dB
Connection Method	Pin, Solder Pads
Dimensions	32.4 (Dia.) x 9.7mm
Operating Temperature Range	-40 → +85 °C
Maximum Frequency	8kHz
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
Minimum Frequency	500Hz
Height	9.7mm
