RS PRO PCB Terminal Block, 2-Contact, 10mm Pitch, Through Hole Mount, 1-Row, Screw Termination
- RS-artikelnummer:
- 897-0963
- Tillverkare / varumärke:
- RS PRO
6540 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 10)
6,455 kr
(exkl. moms)
8,069 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 10 - 40 | 6,455 kr | 64,55 kr |
| 50 - 90 | 6,137 kr | 61,37 kr |
| 100 - 490 | 5,798 kr | 57,98 kr |
| 500 - 990 | 5,481 kr | 54,81 kr |
| 1000 + | 5,153 kr | 51,53 kr |
- RS-artikelnummer:
- 897-0963
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

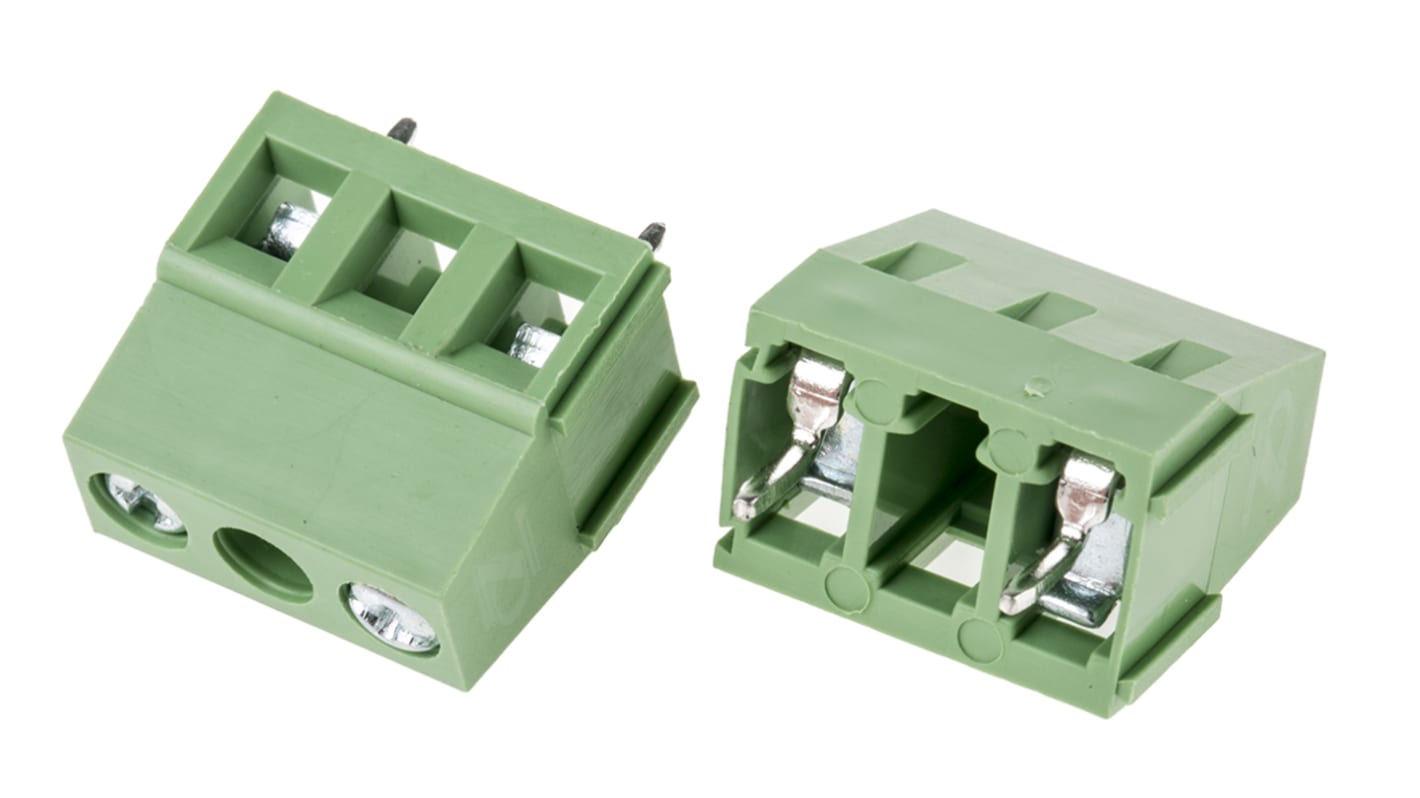

RS Pro 10 mm Pitch Standard Profile Rising Clamp PCB Terminal Blocks
10 mm pitch standard profile PCB terminal blocks with professional rising clamp terminals, a pin spacing of 10 mm for high-voltage operation and green UL94-V0 flame retardant PA66 housings. These terminal blocks have a nickel plated brass wire clamp, M2.5 nickel plated steel captive screws, guided pin alignment and accept a wire size range of 0.32-3.3 mm2 (22-12 AWG).
Specifikationer
Attribute | Value |
|---|---|
| Number of Contacts | 2 |
| Pitch | 10mm |
| Number of Rows | 1 |
| Mounting Type | Through Hole |
| Gender | Male |
| Termination Method | Screw |
| Type | PCB Terminal Block |
| Current Rating | 10A |
| Body Orientation | Straight |
| Colour | Green |
| Voltage Rating | 300 V |
| Depth | 14.3mm |
| Material | Polyamide |
| Width | 10.3mm |
| Length | 15.2mm |
