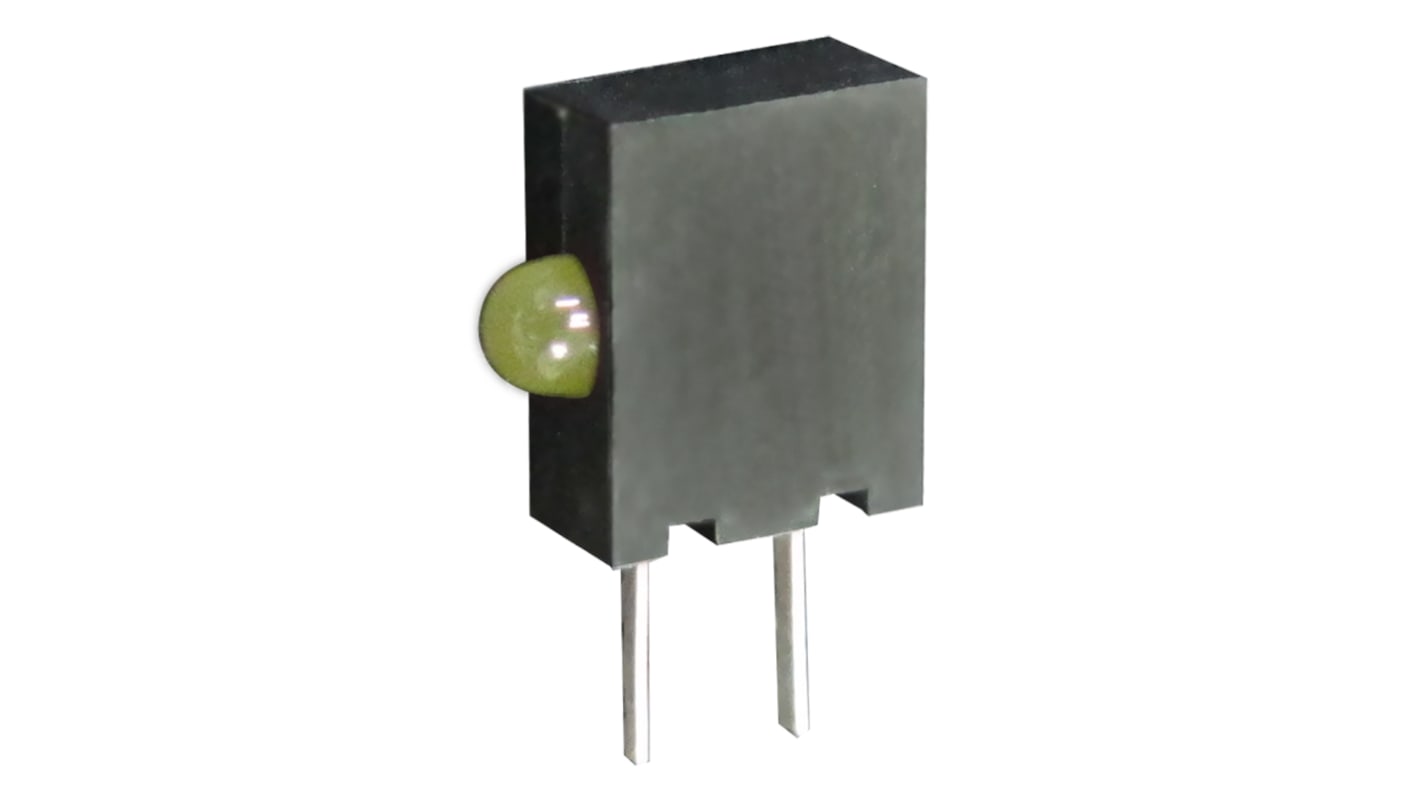

Kingbright KM2520EH/1YD, Yellow Right Angle PCB LED Indicator, Through Hole 2.5 V
- RS-artikelnummer:
- 616-3797
- Tillv. art.nr:
- KM2520EH/1YD
- Tillverkare / varumärke:
- Kingbright
1840 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 10)
35,166 kr
(exkl. moms)
43,958 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 10 - 40 | 35,166 kr | 351,66 kr |
| 50 - 190 | 26,372 kr | 263,72 kr |
| 200 - 490 | 23,666 kr | 236,66 kr |
| 500 - 990 | 18,642 kr | 186,42 kr |
| 1000 + | 16,313 kr | 163,13 kr |
- RS-artikelnummer:
- 616-3797
- Tillv. art.nr:
- KM2520EH/1YD
- Tillverkare / varumärke:
- Kingbright
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
Kingbright 2520 Subminiature LED Indicators
The 2520 PCB LED indicators, from Kingbright, are available in single and quad block packages. They consist of subminiature LEDs within a black plastic housing. The housing holds the LEDs in place, at a right angle to the board.
Features of the 2520 PCB LED indicators:
Subminiature LEDs
Variety of colours
Through-hole mounting
Black plastic housing, right angle
High-contrast
UL 94 V-0 rated
Diffused lens
Subminiature LEDs
Variety of colours
Through-hole mounting
Black plastic housing, right angle
High-contrast
UL 94 V-0 rated
Diffused lens
PCB LED Indicators, Kingbright
Specifikationer
Attribute | Value |
|---|---|
| LED Colours | Yellow |
| Number of LEDs | 1 |
| Mounting Type | Through Hole |
| Supply Voltage | 2.5 V |
| Number of Pins | 2 |
| Viewing Angle | 40 ° |
| Dominant Wavelength | 588 nm |
| LED Orientation | Right Angle |
| LED Material | GaAsP, GaP |
| Dimensions | 6.22 x 2.44 x 6.35mm |
| Length | 6.22mm |
| Width | 2.44mm |
| Height | 6.35mm |
| Intensity | 10mcd |
