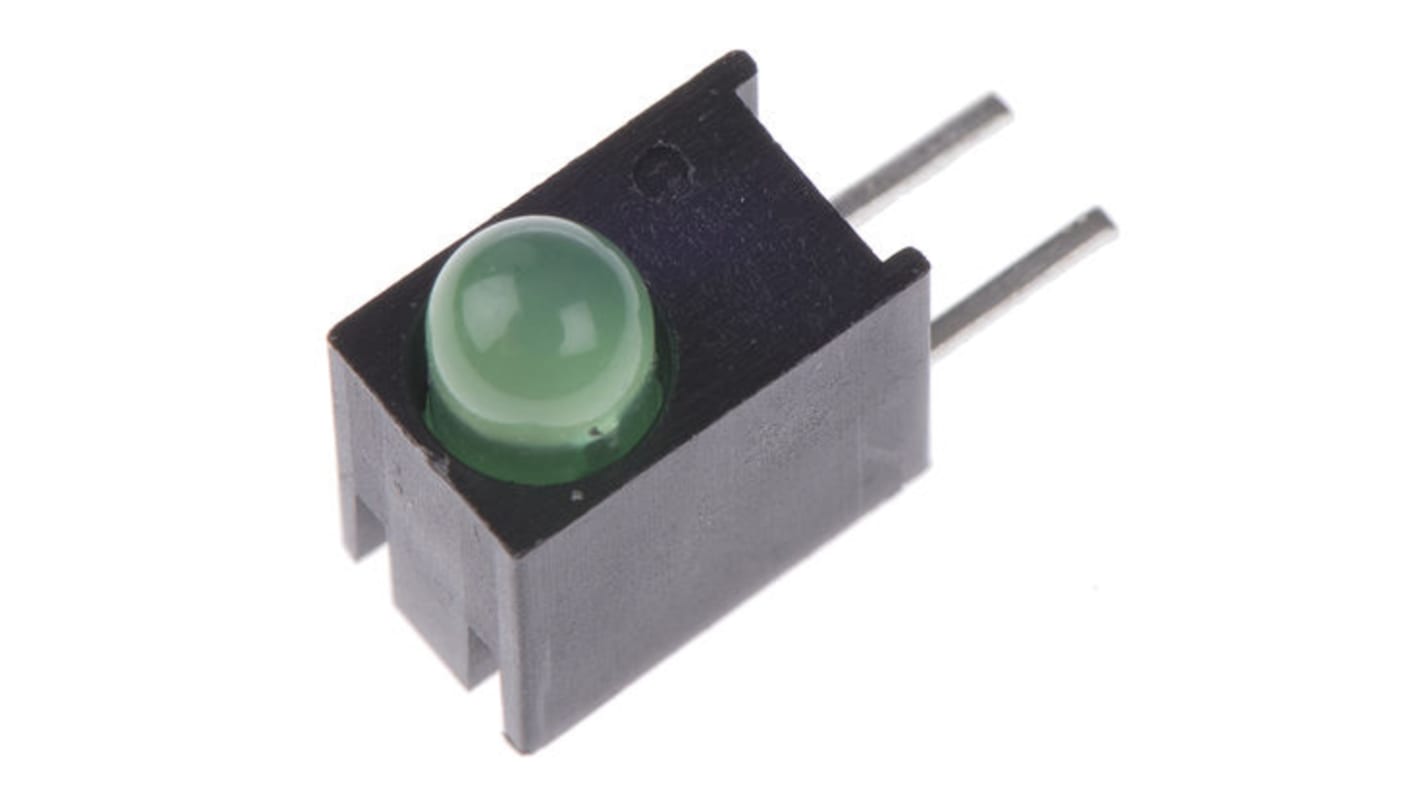

Dialight 551-0207F, Green Right Angle PCB LED Indicator 3mm (T-1), Through Hole
- RS-artikelnummer:
- 171-1679
- Tillv. art.nr:
- 551-0207F
- Tillverkare / varumärke:
- Dialight
Tillfälligt slut i lager – restorder för leverans 2024-06-26
Lagt till varukorgen
Pris (ex. moms) Var (i en påse med 100)
4,678 kr
(exkl. moms)
5,848 kr
(inkl. moms)
| Enheter | Per unit | Per Bag* |
| 100 + | 4,678 kr | 467,80 kr |
- RS-artikelnummer:
- 171-1679
- Tillv. art.nr:
- 551-0207F
- Tillverkare / varumärke:
- Dialight
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Dialight 551-xx07 Series LED CBI® Circuit Board Indicators
Dialight's 551-xx07 series are a family of LED CBI® circuit board indicators. The consist of one 3mm (T-1) LED in a black plastic housing with a high centreline of 4.45mm. The black housing offers a high contrast whilst holding the LED at a right angle. They have 2 pins for through-hole mounting. The 551-xx07 PCB LED indicators are available in high efficiency, integral resistor, low current and bi-colour LED options.
Features of the 551-xx07 PCB LED indicators:
3mm through hole LEDs
Variety of colours
Right angle black housing
Compatible with 551-xx07-004 QuadBlock
3mm through hole LEDs
Variety of colours
Right angle black housing
Compatible with 551-xx07-004 QuadBlock
PCB LED Indicators, Dialight
Specifikationer
Attribute | Value |
|---|---|
| LED Colours | Green |
| Number of LEDs | 1 |
| Mounting Type | Through Hole |
| Number of Pins | 2 |
| Viewing Angle | 45 ° |
| Dominant Wavelength | 563 nm |
| LED Orientation | Right Angle |
| Dimensions | 8.89 x 4.32 x 7.11mm |
| Length | 8.89mm |
| Width | 4.32mm |
| Height | 7.11mm |
| LED Size | 3mm (T-1) |
| Lens Finish | Diffused, Tinted |
| Lens Colour | Green |
| Configuration | Single |
| Forward Current | 60mA |
| Intensity | 16mcd |
