Keysight Technologies N2785A Probe Holder

Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): JP
Produktdetaljer

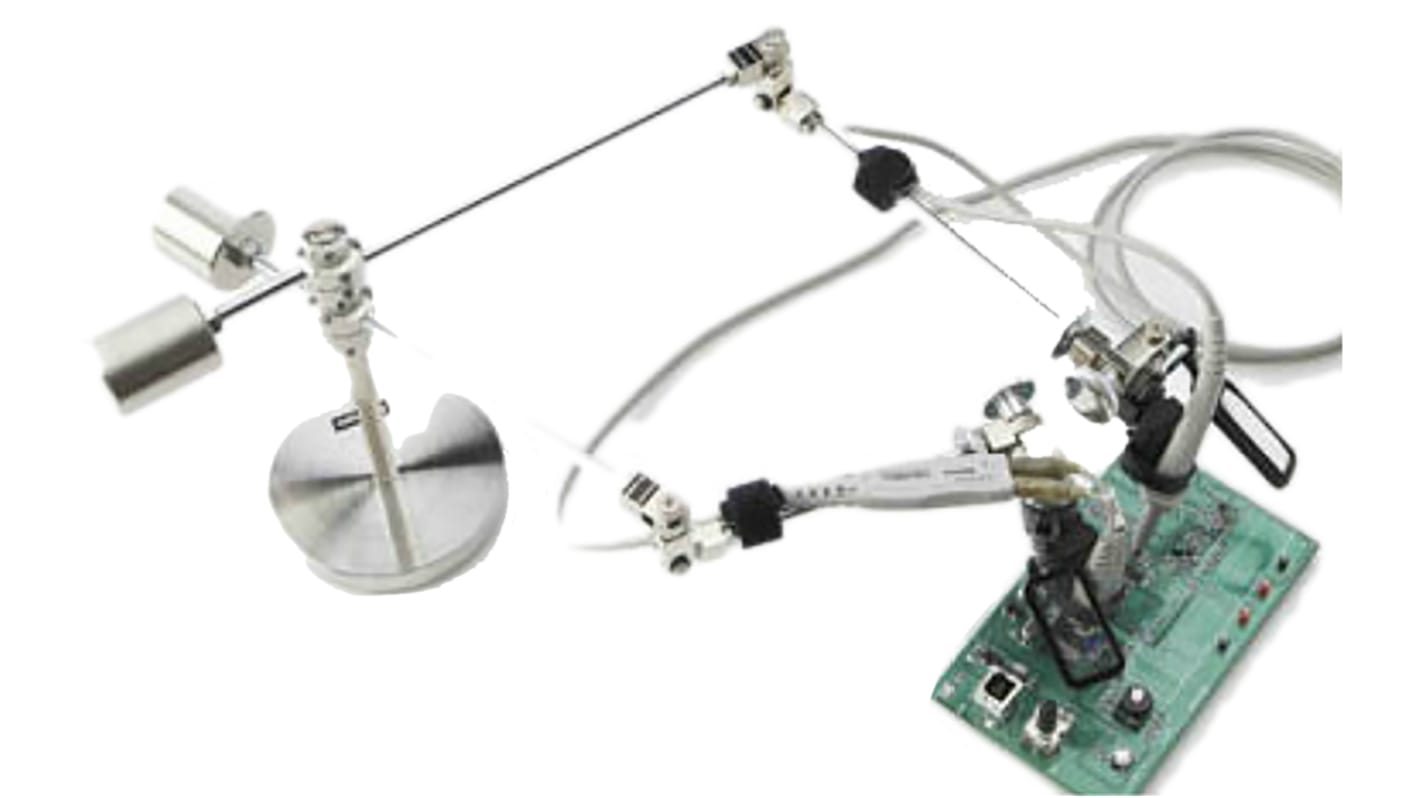

Keysight 1 and 2 Arm Probe Positioners

The N2784A single arm probe positioner (134-6160) and N2785A 2-arm probe positioner (134-6162) provide quick and stable X-Y positioning with only a “lift and drop” motion to put the probe in place for PC boards and devices that require hands-free probing. This probe holder also employs a weight stabilization technique to keep constant pressure at the probing point so that the probe tip stays in position even when the target board is shaken. These probe positioners are compatible with most Keysight scope probes including InfiniiMax single-ended or differential browser probes, as well as the scope probes from other vendors.

Features and Benefits

• Easy-to-manipulate probe arm for hands-free browsing • One articulated arm with hi-mass base
• Quick and stable XY positioning
• Weight stabilization technique in probe holder keeps constant pressure at the probing point
• Compatible with most Keysight and other vendor’s scope probes

Keysight InfiniiVision Series

Keysight InfiniiVision 2000 & 3000 X-Series offers the power of 4 instruments in 1: oscilloscope; logic analyzer; function generator; protocol analyzer. The models are fully upgradable (bandwidth, MSO, WaveGen, memory, measurement applications) to meet future requirements and protect investment.

Specifikationer
Attribute Value
Accessory Type 2-Arm Probe Positioner
For Use With InfiniiMax 1130A/1131A/1132A/1134A & 1168A/1169A Active Probe with Single-Ended or Differential Browser, N2782A/N2783A Passive Probe, N287xA Passive Probes, 104xx Passive Probe, 116x Passive Probe, 1141A/1153A Active Probe, 1144A Active Probe, 1156A/1157A/1158A Active Probe
Tillfälligt slut i lager – restorder för leverans 2020-06-03
Pris (ex. moms) Each
18 487,00 kr
(exkl. moms)
23 108,75 kr
(inkl. moms)
Enheter
Per unit
1 +
18 487,00 kr
