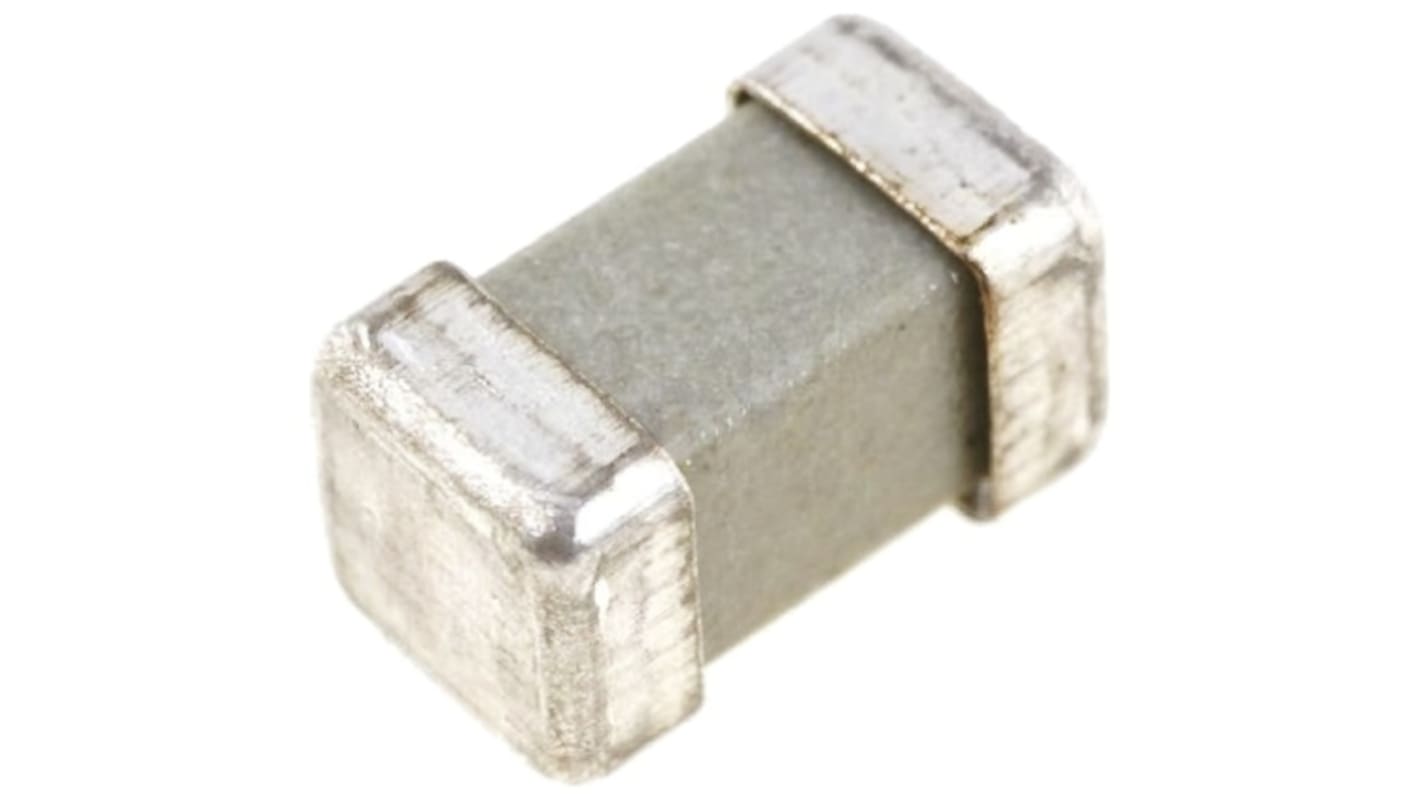

SIBASMD Non Resettable Fuse 3.15A, 250V
- RS-artikelnummer:
- 736-2649
- Tillv. art.nr:
- 160000.3,15
- Tillverkare / varumärke:
- SIBA
450 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i en påse med 10)
13,543 kr
(exkl. moms)
16,929 kr
(inkl. moms)
| Enheter | Per unit | Per Bag* |
| 10 - 90 | 13,543 kr | 135,43 kr |
| 100 - 490 | 11,176 kr | 111,76 kr |
| 500 - 1490 | 9,395 kr | 93,95 kr |
| 1500 - 2490 | 8,691 kr | 86,91 kr |
| 2500 + | 8,318 kr | 83,18 kr |
- RS-artikelnummer:
- 736-2649
- Tillv. art.nr:
- 160000.3,15
- Tillverkare / varumärke:
- SIBA
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer
Sub-miniature SMD Fuses 250V 4.5x8mm
Ceramic tube non-transparent insulating body
Brass, silver-plated contact caps
Voltage rating 250V
Dimensions 4.5 x 8 mm
Brass, silver-plated contact caps
Voltage rating 250V
Dimensions 4.5 x 8 mm
Approvals
IEC 60127
Surface Mount Technology
Surface mount fuses offer considerable space (and time) saving features for low voltage applications. The FF types are ideal for protection of high value silicon IC's e.g. alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, medical apparatus etc.
Specifikationer
Attribute | Value |
|---|---|
| Current Rating | 3.15A |
| Voltage Rating | 250V |
| Fuse Speed | T |
| Body Material | Ceramic Tube Non Transparent |
| Body Length | 8mm |
| Body Width | 4.4mm |
| Body Height | 4.4mm |
| Breaking Capacity at Maximum Voltage Rating | 100 A @ 250 V ac |
| Dimensions | 8 x 4.4 x 4.4mm |
| Terminal Material | Brass, Silver Plated |
