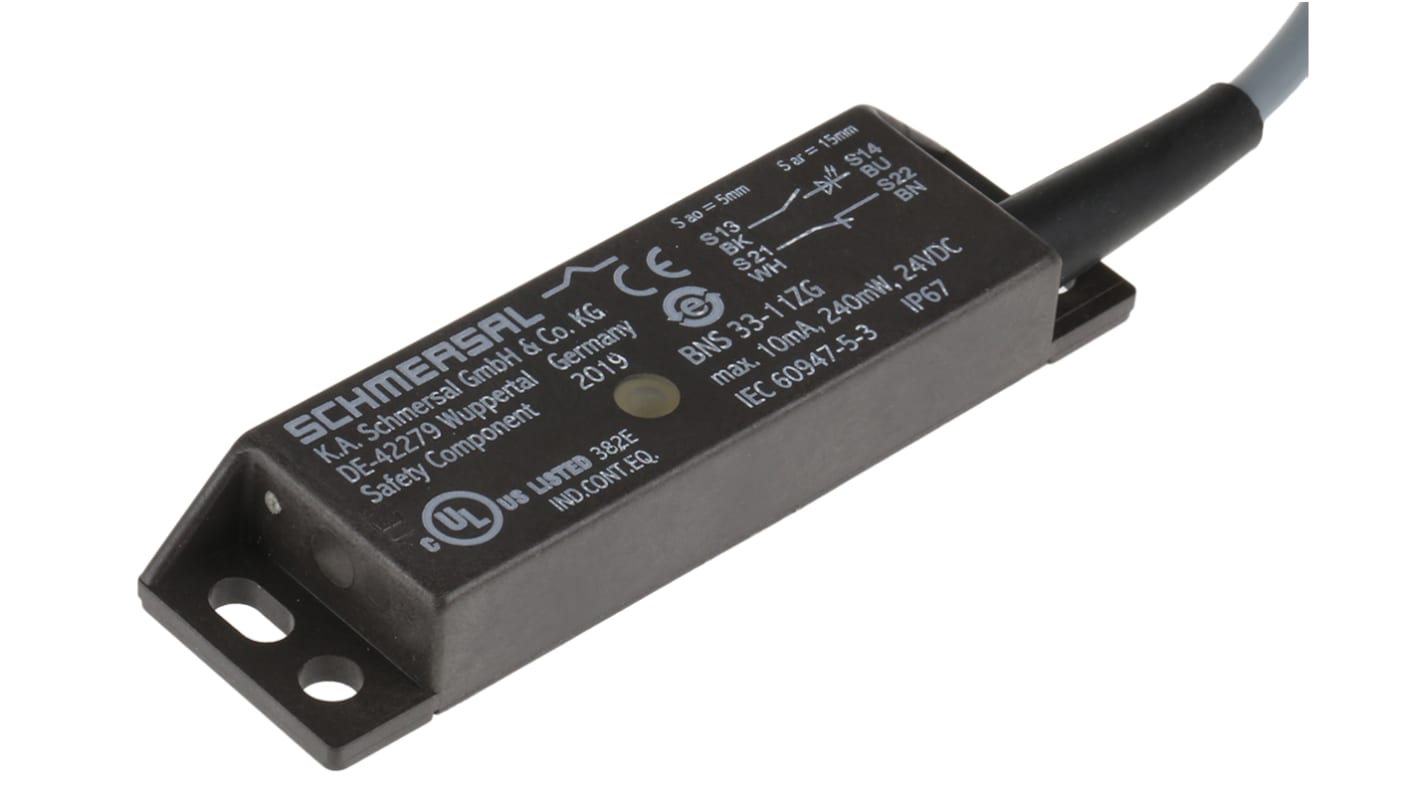

BNS33 Magnetic Safety Switch, Plastic, 24 V dc
- RS-artikelnummer 623-3133
- Tillv. art.nr BNS 33-11ZG-2M
- Tillverkare / varumärke Schmersal
Schmersal Non-Contact Safety Switch
The Schmersal BNS33 series non-contact safety switches have a safe switch ON distance of 5mm and switch OFF distance of 15mm. This switch has 1NO and 1NC contacts. It has a black thermoplastic enclosure and can be concealed mounted as well.
Note:
The actuator must be ordered separately, please see stock number 198-7863.
Caution:
EN60947-5-3 standard is only met if the entire system consisting of a safety sensor (BNS33), magnet (BPS33) and safety-monitoring module (AES) is used.
Features and Benefits
Supply voltage rating is 24VDC
2m cable
LED version
Insensitive to transverse misalignment
Long life
No mechanical wear
Insensitive to soiling
Individual contact outlet
Concealed mounting possible
Connector M8 x 1, 4-pole
Certifications
IP67 rated
BG certified
EAC certified
IEC/EN60947-5-3
BG-GS-ET-14
CE certified
| Attribute | Value |
|---|---|
| Supply Voltage | 24 V dc |
| Housing Material | Plastic |
| Connection Type | Cable |
| Series | BNS33 |
| IP Rating | IP67 |
| Actuator Included | No |
| Housing Colour | Black |
| Dimensions | 88 x 50 x 13 mm |
| Depth | 13mm |
| Length | 88mm |
| Width | 25mm |
| Actuator Type | Coded |
| Sensor Principle | Magnetic |
| Safety Category | 4 |
