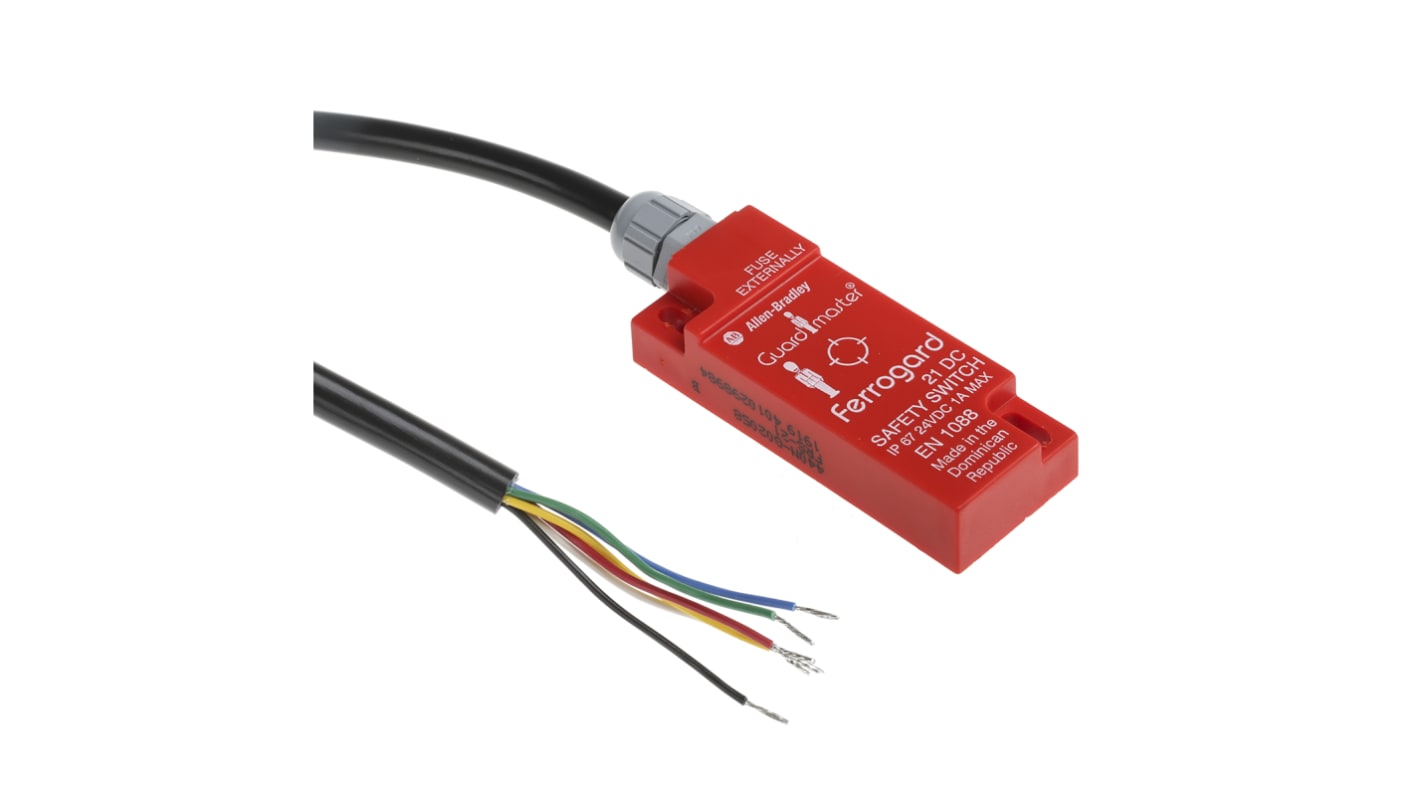

Ferrogard 440N Magnetic Safety Switch, Plastic, 24 V dc

Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): DO
Produktdetaljer

Ferrogard 1, 2, 20 & 21 Non Contact Safety Switch

The Ferrogard FRS 1, 2, 20 and 21 are magnetically actuated non-contact safety switches which offer reliability and a high tolerance to misalignment. Designed to be installed on a guard door, the action of the magnetic actuator being removed from the switch opens the N.C. safety contacts therefore isolating the control power to the machines primary control element. Made from moulded ABS with a rectangular housing and sealed to IP67 (NEMA 6P), these non-contact switches are ideal for wet environments.

Non-contact actuation
High tolerance to misalignment
Plastic rectangular housing
Cable or quick-disconnect (QD) connections
M4 mountable in any position
Operating distance for safety contacts - make;12mm, break;23mm
Operating temperature range: -10°C to +65°C
Sealed to IP67
Cat. 1 device per EN 954-1 dual channel interlocks suitable for Cat. 3 or 4 systems

Standards

EN954-1, ISO13849-1, IEC/EN60204-1, NFPA79, EN1088, ISO14119, ANSI B11.19, AS4024.1.

Approvals

CE Marked for all applicable directives and cULus.

//media.rs-online.com/t_line/L343981-22.gif
//media.rs-online.com/t_line/LD333574-01.gif
//media.rs-online.com/t_line/LF333574-10.gif
//media.rs-online.com/t_line/LI333574-01.gif

Note

This safety device can be used with Guardlink, a new safety linking technology from Allen Bradley Guardmaster.
Guardlink simplifies and reduces the connection time of the safety system, whilst providing real-time diagnostic information over Ethernet IP. This makes it simple to identify the location of the device that has tripped the safety system, thus reducing downtime, and improving the machines overall efficiency. For more details, please go to the Guardlink brochure.

Specifikationer
Attribute Value
Supply Voltage 24 V dc
Safety Contacts 2NC
Housing Material Plastic
Auxiliary Contacts NO
Connection Type 2m cable
Range Ferrogard
Series 440N
IP Rating IP67
Actuator Included Yes
Housing Colour Red
Width 30mm
Actuator Type Magnetic
Sensor Principle Magnetic
Depth 15mm
Dimensions 76 x 30 x 15 mm
Safety Category 1
Length 76mm
Tillfälligt slut i lager – restorder för leverans 2020-10-26
Pris (ex. moms) Each
1 905,23 kr
(exkl. moms)
2 381,54 kr
(inkl. moms)
Enheter
Per unit
1 +
1 905,23 kr
