Sensaguard 440N RFID Safety Switch, Plastic, 24 V dc

Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

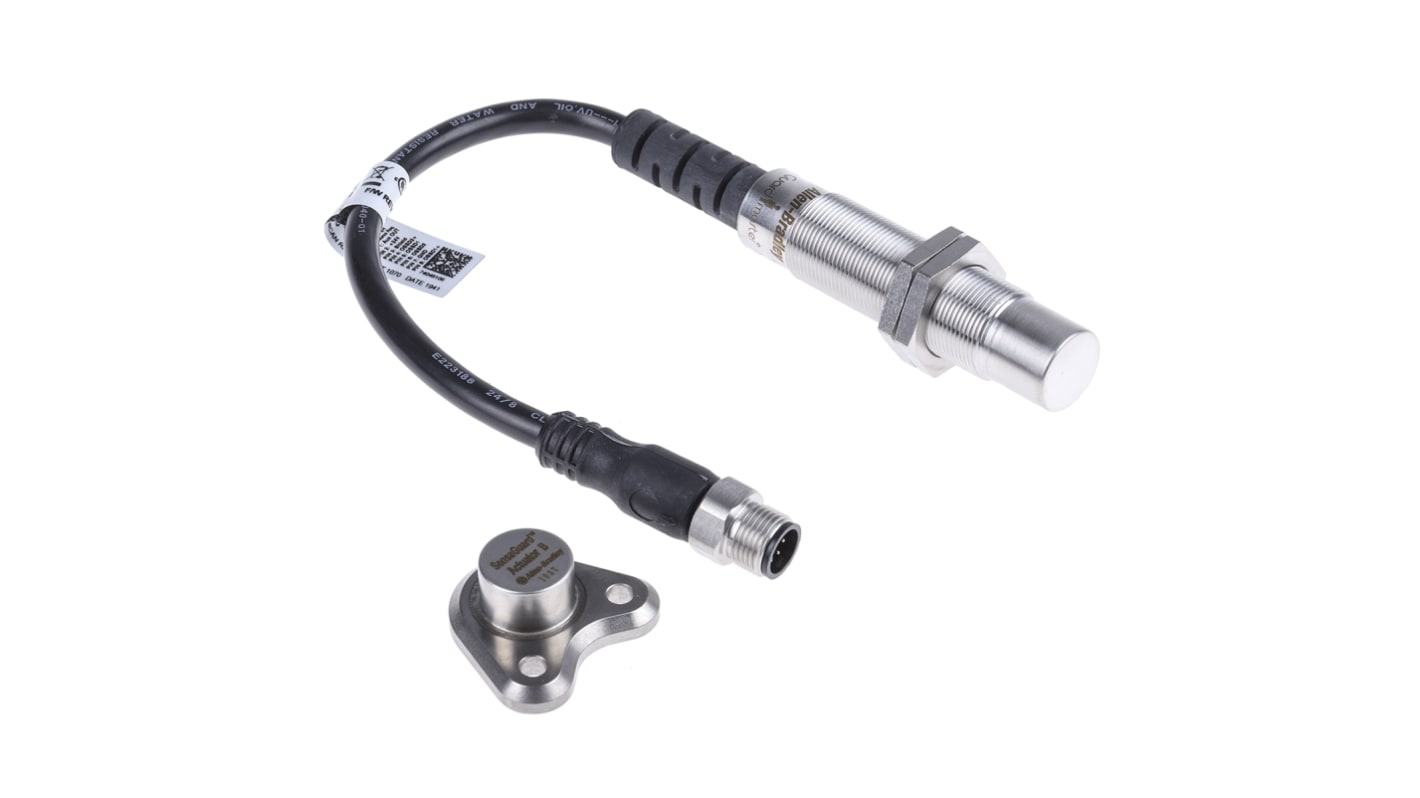

SensaGuard 440N Cylindrical Non-Contact Switch

The SensaGuard Non-Contact Switch is PLe, SIL 3 and Cat 4 rated and is intended for use with sliding, hinge or lift-off machine guard doors. These safety switches are based on RFID (Radio Frequency IDentification) technology for coding and inductive technology for sensing. Combined with a large sensing range for optimum operation and tolerance to misalignment, these non-contact switches are a cost-effective solution to a wide range of industrial safety applications.

No dedicated controller required for its RFID coding security
Switches can be connected in series with other devices (e.g. Light Curtains, E-stops, interlock switches)
PLe, SIL 3, Cat 4 rating maintained with multiple units connected in series
Can be connected to standard safety relays, SmartGuards and safety I/O blocks
They provide three different types of PNP output including one auxiliary PNP
Equipped with an LED to indicate the device status and any faults
IP69K environmental rating

Note

Stainless steel version suitable for use in harsh environments.

Standards

IEC60947-5-3, IEC 61508, EN954

Supplied with

Actuator.

Note

This safety device can be used with Guardlink, a new safety linking technology from Allen Bradley Guardmaster. Guardlink simplifies and reduces the connection time of the safety system, whilst providing real-time diagnostic information over Ethernet IP. This makes it simple to identify the location of the device that has tripped the safety system, thus reducing downtime, and improving the machines overall efficiency. For more details, please go to the Guardlink brochure.

Specifikationer
Attribute Value
Supply Voltage 24 V dc
Housing Material Plastic
Interface Guardlink
Range Sensaguard
Series 440N
IP Rating IP69K
Actuator Included Yes
Safety Category 4
Length 67.06mm
Housing Colour Red
Dimensions 18 (Dia.) x 67.06 mm
Actuator Type Coded
Width 18 (Dia.)mm
Sensor Principle RFID
8 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
1 220,54 kr
(exkl. moms)
1 525,68 kr
(inkl. moms)
Enheter
Per unit
1 +
1 220,54 kr
