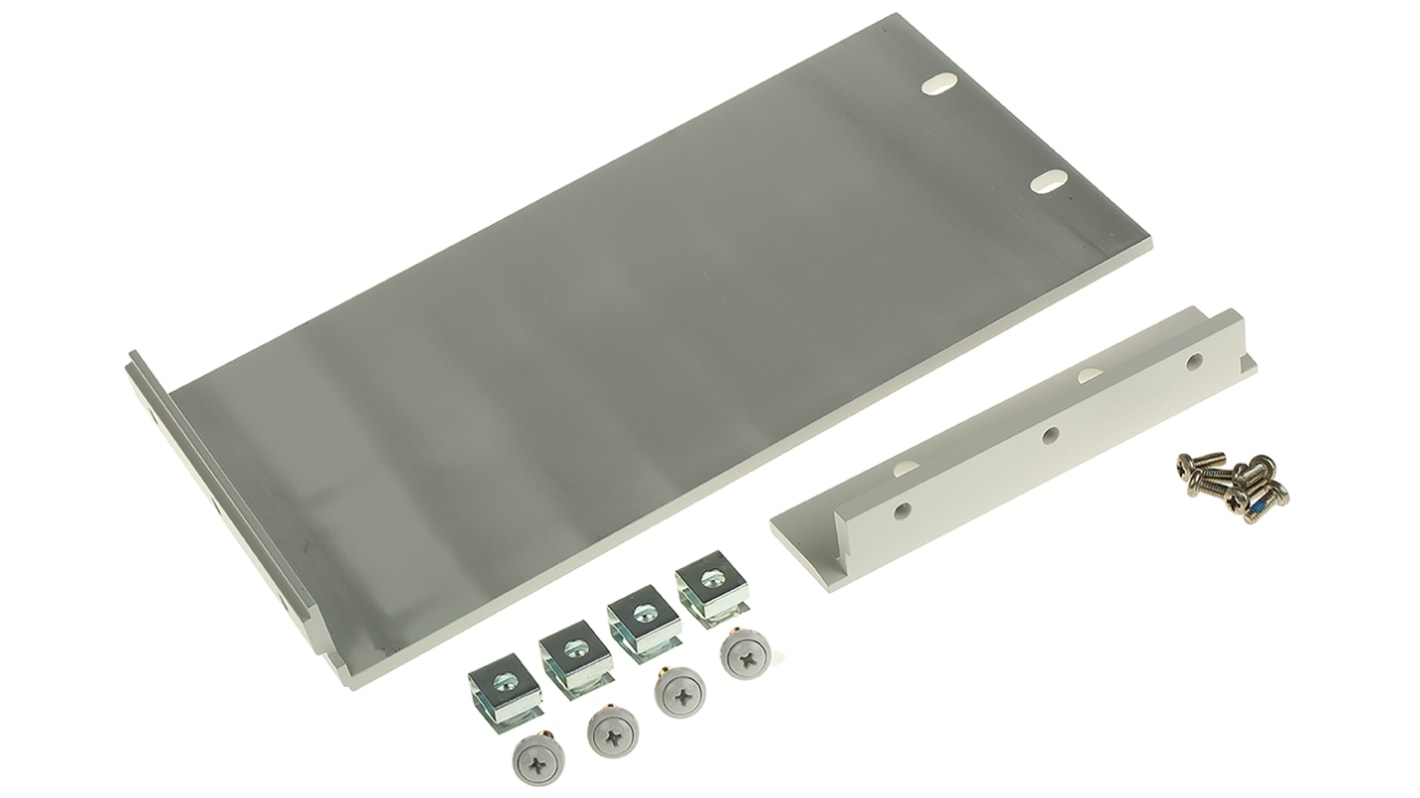

Keysight Technologies 34193A Rack Mount Kit
- RS-artikelnummer 713-4282
- Tillv. art.nr 34193A
- Tillverkare / varumärke Keysight Technologies
Keysight Accessories
34191A
The Agilent 34191A dual rackmount flange kit secures the instrument to the front of the System II cabinet. This kit can be used with the 34194A Dual Lock Link Kit to mount two Agilent System II (half-width, 2U height - 88.1mm) instruments side-by-side.
The Agilent 34191A dual rackmount flange kit is compatible with the Agilent 34401A (501-354), 34420A, 34970A (686-2107), 53131A (690-9338), 53181A (690-9341), 33220A (690-2597), 33250A (667-2594), 6610 Series High Performance DC Power Supplies, and most other 2-slot, half rack sized Agilent products.
34192A
The Agilent 34192A dual rackmount flange kit secures the instrument to the front of the System II cabinet.
The Agilent 34192A dual rackmount flange kit is compatible with any standard System II 3U 132.6mm high instrument such as the Agilent 6811B (690-9580), 6812B (690-9593), and 6813B (690-9596).
34193A
The Agilent 34193A rackmount adapter kit is used to mount a single 1/2 module or two 1/4 module width standard System II instruments 3U 132.6mm high instrument.
The Agilent 34193A rackmount adapter kit is compatible with Agilent E3631A (501-219) to E3634A (501-229) and E3646A (667-7384) to E3649A (667-7390) products.
Keysight Power Supplies
| Attribute | Value |
|---|---|
| Accessory Type | Rack Mount Kit |
| For Use With | E3631A to E3634A Series, E3646A to E3649A Series |
| Kit Contents | Flange, Screw, 1/2 MW Extension Adapter Flange |
| Rack Mount Height | 132.6mm |
