- RS-artikelnummer:
- 914-8530
- Tillv. art.nr:
- SWE-94-S-2-001-0
- Tillverkare / varumärke:
- Simex
7 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
1 850,48 kr
(exkl. moms)
2 313,10 kr
(inkl. moms)
Enheter | Per unit |
1 + | 1 850,48 kr |
- RS-artikelnummer:
- 914-8530
- Tillv. art.nr:
- SWE-94-S-2-001-0
- Tillverkare / varumärke:
- Simex
Lagstiftning och ursprungsland
- COO (Country of Origin):
- PL
Produktdetaljer

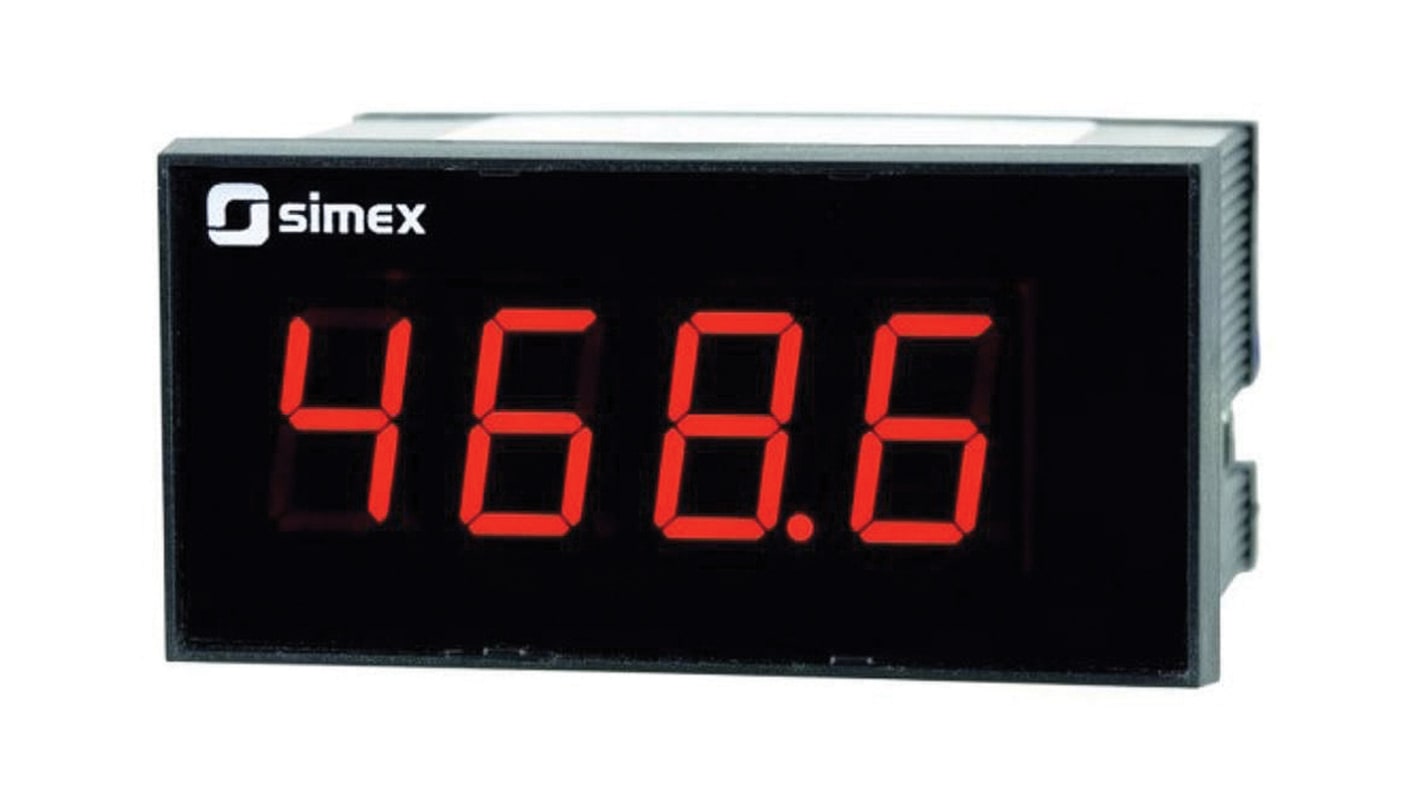

SWE-94S Digital Panel Indicator
The SWE-94S is a simple-to-use digital panel indicator. It is intended for displaying any numerical values and characters defined by user (SLAVE mode only) sent from master device over the RS485 serial interface link. The displayed value can be collected from another device (in MASTER mode).
• 4-digit (20 mm) large LED display
• Brightness adjustable in 8 steps
• Easy assembling
• Panel mounting
• RS485/Modbus RTU communication interface
• All parameters freely programmable from the PC or IR remote controller (914-8502)
• IP40 (front-standard) & IP20 (housing and connection clips) protection
• Brightness adjustable in 8 steps
• Easy assembling
• Panel mounting
• RS485/Modbus RTU communication interface
• All parameters freely programmable from the PC or IR remote controller (914-8502)
• IP40 (front-standard) & IP20 (housing and connection clips) protection
Simex Multi function Meters
Specifikationer
Attribute | Value |
---|---|
Display Type | LED |
Cutout Height | 45mm |
Cutout Width | 91mm |
Number of Digits | 4 |
Depth | 96.5 (IP67) mm, 88 mm |
Digit Height | 20 mm |
Minimum Temperature | 0°C |
Maximum Temperature | +50°C |
Measurement Range | 24 → 230 V dc, Maximum of 110 V ac |
Meter Type | Digital |
Approvals | CE |
- RS-artikelnummer:
- 914-8530
- Tillv. art.nr:
- SWE-94-S-2-001-0
- Tillverkare / varumärke:
- Simex
