Siretta OSCAR18/x/NF/S/S/22 Square Multiband Antenna with N Type Connector, 2G (GSM/GPRS), 3G (UTMS)
- RS-artikelnummer:
- 896-8327
- Tillv. art.nr:
- OSCAR18/x/NF/S/S/22
- Tillverkare / varumärke:
- Siretta
Tillfälligt slut i lager – restorder för leverans 2024-05-13
Lagt till varukorgen
Pris (ex. moms) Varje
746,58 kr
(exkl. moms)
933,22 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 746,58 kr |
| 10 - 24 | 727,95 kr |
| 25 - 49 | 687,58 kr |
| 50 - 99 | 665,18 kr |
| 100 + | 630,80 kr |
- RS-artikelnummer:
- 896-8327
- Tillv. art.nr:
- OSCAR18/x/NF/S/S/22
- Tillverkare / varumärke:
- Siretta
Lagstiftning och ursprungsland
Produktdetaljer

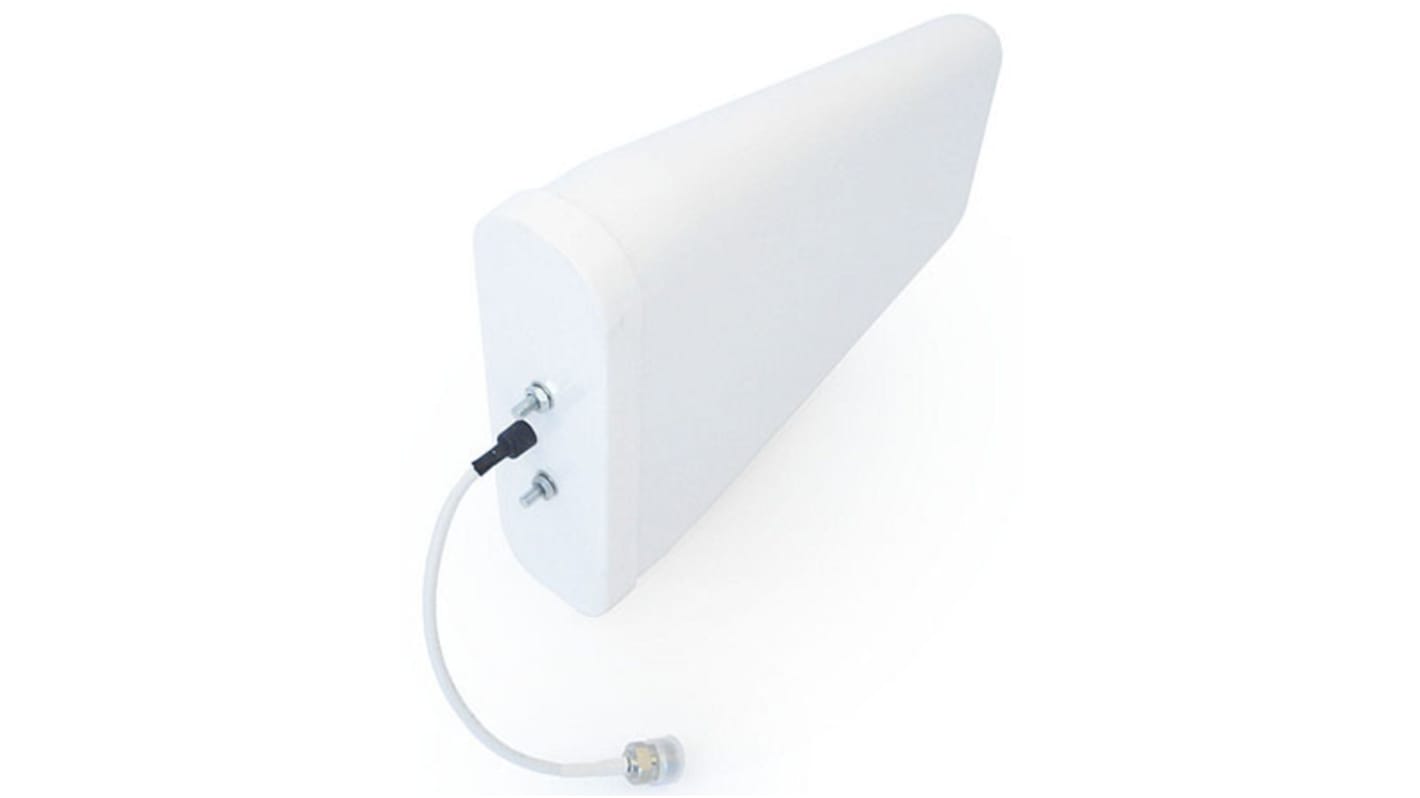

OSCAR18 Quad Band Wall/Bracket Yagi Antenna, Siretta
The OSCAR18 is a quad band GSM/GPRS, 3G/UMTS, Wi-Fi/WLAN wall/bracket mount Yagi antenna. The antenna also comes with a mounting bracket. Suggested applications for your OSCAR18 include base stations, remote monitoring and alarm & security systems.
Features & Benefits of the OSCAR 18 Yagi Antenna
•850, 900, 1800, 1900 MHz GSM/GPRS
•2100 MHz 3G
•2400, 2500 Wi-Fi/WLAN, Bluetooth, Zigbee
•10 dBi
•150 mm RG58 cable with N type female connector
•-40° C to +85° C operating temperature range
•50 ohm impedance
•Vertical polarization
•249 mm x 210 mm x 65 mm
Features & Benefits of the OSCAR 18 Yagi Antenna
•850, 900, 1800, 1900 MHz GSM/GPRS
•2100 MHz 3G
•2400, 2500 Wi-Fi/WLAN, Bluetooth, Zigbee
•10 dBi
•150 mm RG58 cable with N type female connector
•-40° C to +85° C operating temperature range
•50 ohm impedance
•Vertical polarization
•249 mm x 210 mm x 65 mm
Multi-band Antennas, Siretta
Specifikationer
Attribute | Value |
|---|---|
| RF Protocols | 2G (GSM/GPRS), 3G (UTMS) |
| Frequency Range | 800 → 2500 MHz |
| Connector Type | N Type |
| Internal/External | External, Internal |
| Gain | 10dBi |
| Antenna Mounting Type | Wall/Pole |
| Antenna Physical Form | Square |
| Series | Oscar 18 |
| Lead Length | 0.2m |
| Antenna Directivity | Directional |
| Includes Lead | Yes |
| Antenna Internal Construction | Yagi |
| Connector Gender | Female |
