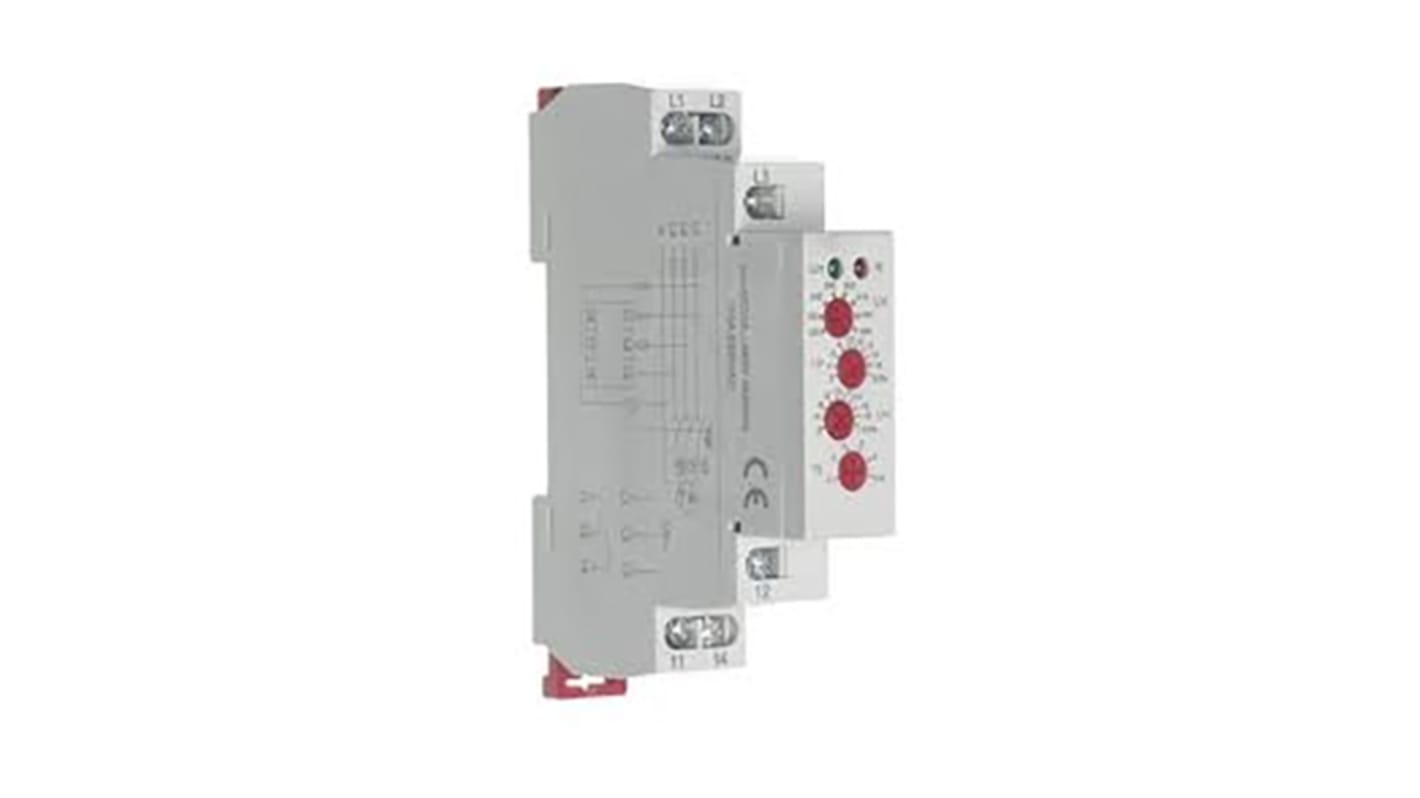

Relpol Phase, Voltage Monitoring Relay, 3 Phase, SPDT, Maximum of 552 V, DIN Rail
- RS-artikelnummer:
- 914-3954
- Tillv. art.nr:
- ECPF05
- Tillverkare / varumärke:
- Relpol
152 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
582,56 kr
(exkl. moms)
728,20 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 582,56 kr |
- RS-artikelnummer:
- 914-3954
- Tillv. art.nr:
- ECPF05
- Tillverkare / varumärke:
- Relpol
Lagstiftning och ursprungsland
Produktdetaljer
Europa Components ECPF Series
Europa Components professional range of phase loss and phase failure monitoring relays.
Phase Sequence/Failure Relays
Monitoring of 3 phase supplies
Orange housing manufactured to DIN 43 880
DIN rail mount
Orange housing manufactured to DIN 43 880
DIN rail mount
Specifikationer
Attribute | Value |
|---|---|
| Monitoring Application | Phase, Voltage |
| Electrical Phase | 3 |
| Voltage Sensing Range | Maximum of 552 V |
| Contact Configuration | SPDT |
| Voltage Sensitivity | Overvoltage, Undervoltage |
| Mounting Type | DIN Rail |
| Phase Sensitivity | Phase Failure, Phase Sequence |
| Time Delay | 0.1 → 10s |
| Series | ECPF |
| Maximum Operating Temperature | +55°C |
| Maximum Voltage Sensed | 552V |
| Length | 18mm |
| Terminal Type | Screw |
| Special Features | IP20 Terminals, IP40 Front Panel |
| Number of Poles | 1 |
| Minimum Operating Temperature | -20°C |
| Width | 64mm |
| Operating Temperature Range | +55°C |
| Dimensions | 18 x 64 x 90mm |
| Height | 90mm |
