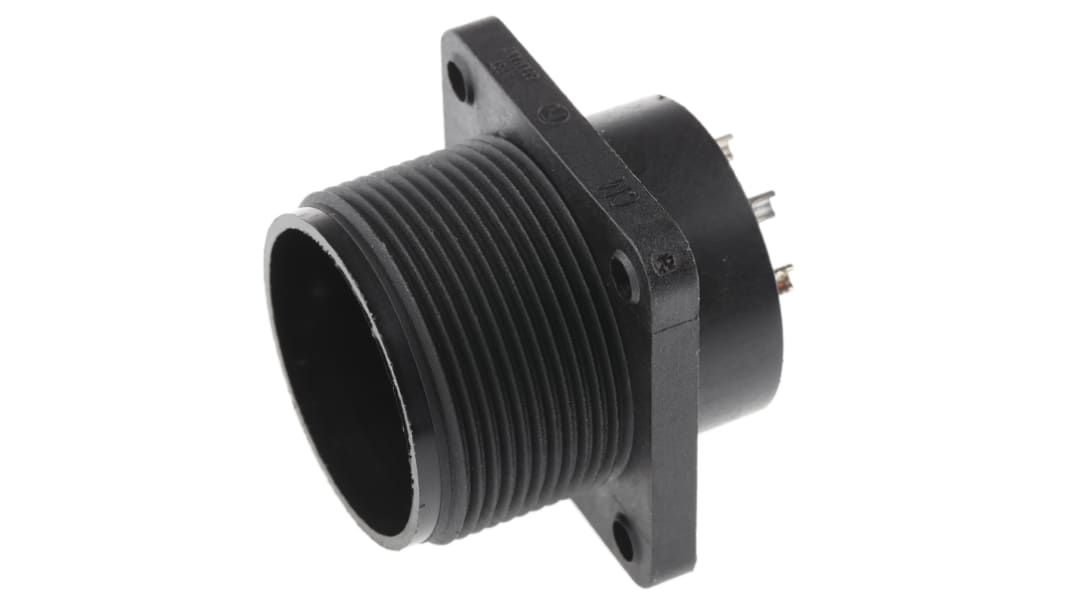

Hirschmann, CM, Polyamide 8 Way Panel Mount MIL Spec Circular Connector PlugBlack, Socket Contacts,Shell Size 20, Screw
- RS-artikelnummer:
- 237-7649
- Tillv. art.nr:
- 932845100 CM 02 E 20-7 P
- Tillverkare / varumärke:
- Hirschmann
Mängdrabatt möjlig
Antal (1 enhet)*
88,82 kr
(exkl. moms)
111,02 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 30 enhet(er) är redo att levereras
- Plus 2 enhet(er) är redo att levereras från en annan plats
- Dessutom levereras 5 enhet(er) från den 16 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 4 | 88,82 kr |
| 5 - 24 | 77,73 kr |
| 25 + | 66,75 kr |
*vägledande pris
- RS-artikelnummer:
- 237-7649
- Tillv. art.nr:
- 932845100 CM 02 E 20-7 P
- Tillverkare / varumärke:
- Hirschmann
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Hirschmann | |
| Number of Contacts | 8 | |
| Gender | Male | |
| Contact Gender | Female | |
| Current Rating | 10A | |
| Voltage Rating | 50 V ac/dc | |
| Shell Size | 20 | |
| Mounting Type | Panel Mount | |
| Military Standard | MIL-DTL-5015 | |
| Termination Method | Solder | |
| IP Rating | IP67 | |
| Mating Type | Screw Coupling | |
| Body Orientation | Straight | |
| Series | CM | |
| Housing Material | Polyamide | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Polyamide | |
| Contact Plating | Silver | |
| Colour | Black | |
| Maximum Operating Temperature | +90°C | |
| Välj alla | ||
|---|---|---|
Brand Hirschmann | ||
Number of Contacts 8 | ||
Gender Male | ||
Contact Gender Female | ||
Current Rating 10A | ||
Voltage Rating 50 V ac/dc | ||
Shell Size 20 | ||
Mounting Type Panel Mount | ||
Military Standard MIL-DTL-5015 | ||
Termination Method Solder | ||
IP Rating IP67 | ||
Mating Type Screw Coupling | ||
Body Orientation Straight | ||
Series CM | ||
Housing Material Polyamide | ||
Minimum Operating Temperature -40°C | ||
Contact Material Polyamide | ||
Contact Plating Silver | ||
Colour Black | ||
Maximum Operating Temperature +90°C | ||
CM Cable Sockets and Panel Plugs
These Hirschmann CM Glass-fibre reinforced polyamide connectors give a viable alternative to metal style military connector ranges. The Hirschman CM range gives options of 3 to 17 poles in 14S and 20 shell sizes, are designed to MIL-C-5015 & VG95342, and have the same mounting dimensions and contact arrangements as other manufacturers making them interchangeable with other screw locking types. They are also widely used for connecting continuous action and proportional action valves to DIN43563.
