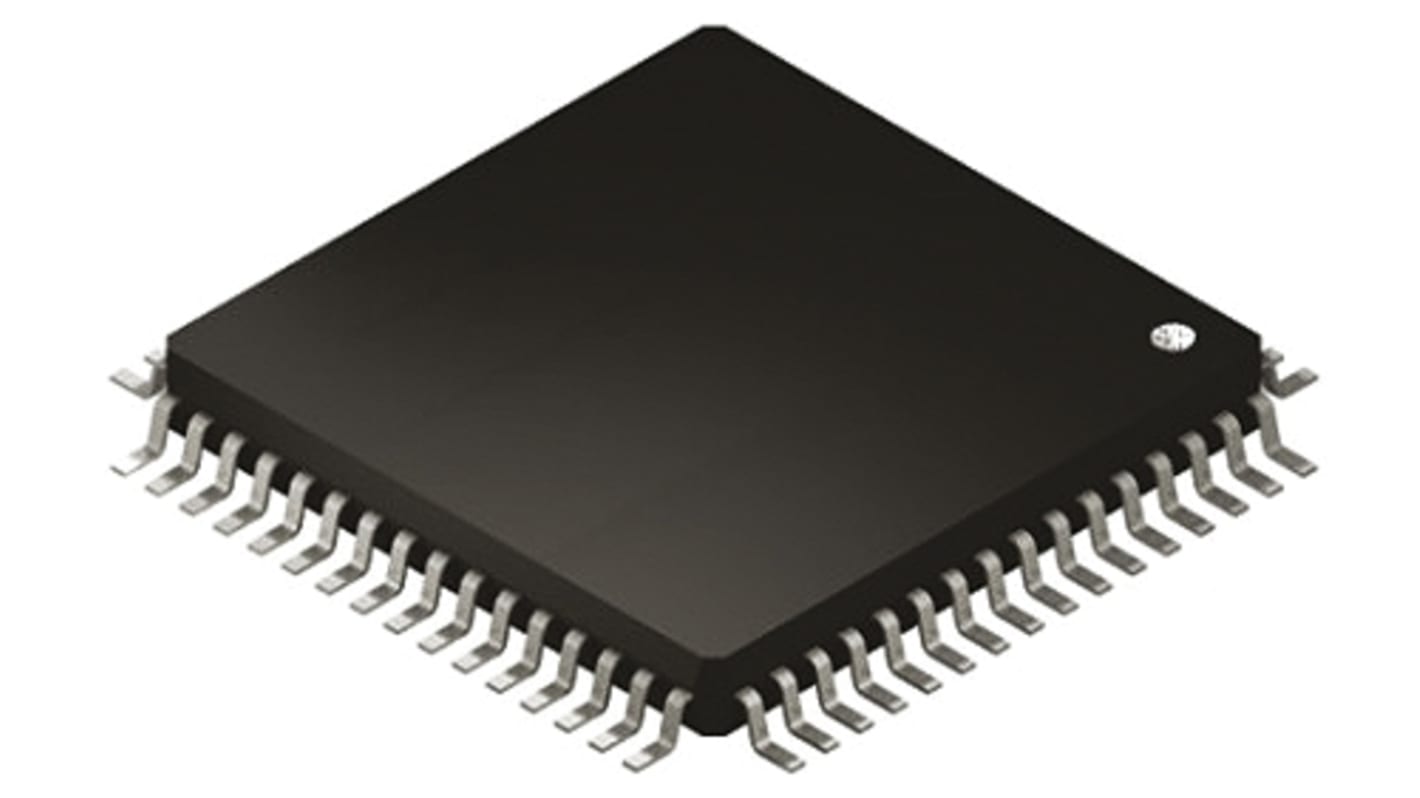

Renesas Electronics R5F51111ADFM#30, 32bit RX Microcontroller, RX, 32MHz, 32 kB Flash, 64-Pin LFQFP
- RS-artikelnummer:
- 828-3597
- Tillv. art.nr:
- R5F51111ADFM#30
- Tillverkare / varumärke:
- Renesas Electronics
I lager för avsändande samma dag
Nästa dag-leverans inte möjlig
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 2)
24,61 kr
(exkl. moms)
30,76 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 2 - 18 | 24,61 kr | 49,22 kr |
| 20 - 38 | 23,37 kr | 46,74 kr |
| 40 - 98 | 22,595 kr | 45,19 kr |
| 100 - 198 | 21,61 kr | 43,22 kr |
| 200 + | 20,99 kr | 41,98 kr |
- RS-artikelnummer:
- 828-3597
- Tillv. art.nr:
- R5F51111ADFM#30
- Tillverkare / varumärke:
- Renesas Electronics
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- JP
Produktdetaljer
RX111 Microcontrollers
RX111 microcontrollers are 32-bit, low pin-count, low-power Flash memory devices compatible with the RX200 and RX600 series. Applications include digital cameras, smart phones, healthcare equipment, refrigerators, power meters, industrial equipment, washing machines, air conditioners and building automation.
• 32MHz 32-bit RX core microcontroller
• 32-bit Multiplier/Divider with multiply-accumulate
• Up to 512KB Flash memory, 8KB Data Flash
• Up to 64KB RAM
• Serial communication: SCI, SPI, I²C, USB 2.0
• Multi-Function Pin Controller
• Data Transfer Controller
• Event Link Controller
• Clock Frequency Accuracy Measurement Circuit
• Data Operation Circuit
• 14-bit Independent Watchdog Timer
• CRC Calculator
• On-chip Debug and Trace
• Power Supply Voltage: +1.8V to +3.6Vdc
• Power Consumption Modes: Sleep, Deep Sleep, Software Standby
• 32-bit Multiplier/Divider with multiply-accumulate
• Up to 512KB Flash memory, 8KB Data Flash
• Up to 64KB RAM
• Serial communication: SCI, SPI, I²C, USB 2.0
• Multi-Function Pin Controller
• Data Transfer Controller
• Event Link Controller
• Clock Frequency Accuracy Measurement Circuit
• Data Operation Circuit
• 14-bit Independent Watchdog Timer
• CRC Calculator
• On-chip Debug and Trace
• Power Supply Voltage: +1.8V to +3.6Vdc
• Power Consumption Modes: Sleep, Deep Sleep, Software Standby
Specifikationer
Attribute | Value |
|---|---|
| Family Name | RX |
| Package Type | LFQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | RX |
| Data Bus Width | 32bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 10 kB |
| USB Channels | 1 |
| Number of SPI Channels | 1 |
| Number of UART Channels | 3 |
| Number of USART Channels | 0 |
| Number of I2C Channels | 1 |
| Number of CAN Channels | 0 |
| Typical Operating Supply Voltage | 2.7 → 3.6 V |
| ADCs | 1 (20 x 12 bit) |
| Maximum Number of Ethernet Channels | 0 |
| Program Memory Type | Flash |
| Minimum Operating Temperature | -40 °C |
| Instruction Set Architecture | CISC |
| Number of LIN Channels | 0 |
| Number of Ethernet Channels | 0 |
| Number of ADC Units | 1 |
| Width | 10.1mm |
| Maximum Operating Temperature | +85 °C |
| Length | 10.1mm |
| Number of PCI Channels | 0 |
| Height | 1.55mm |
| Dimensions | 10.1 x 10.1 x 1.55mm |
