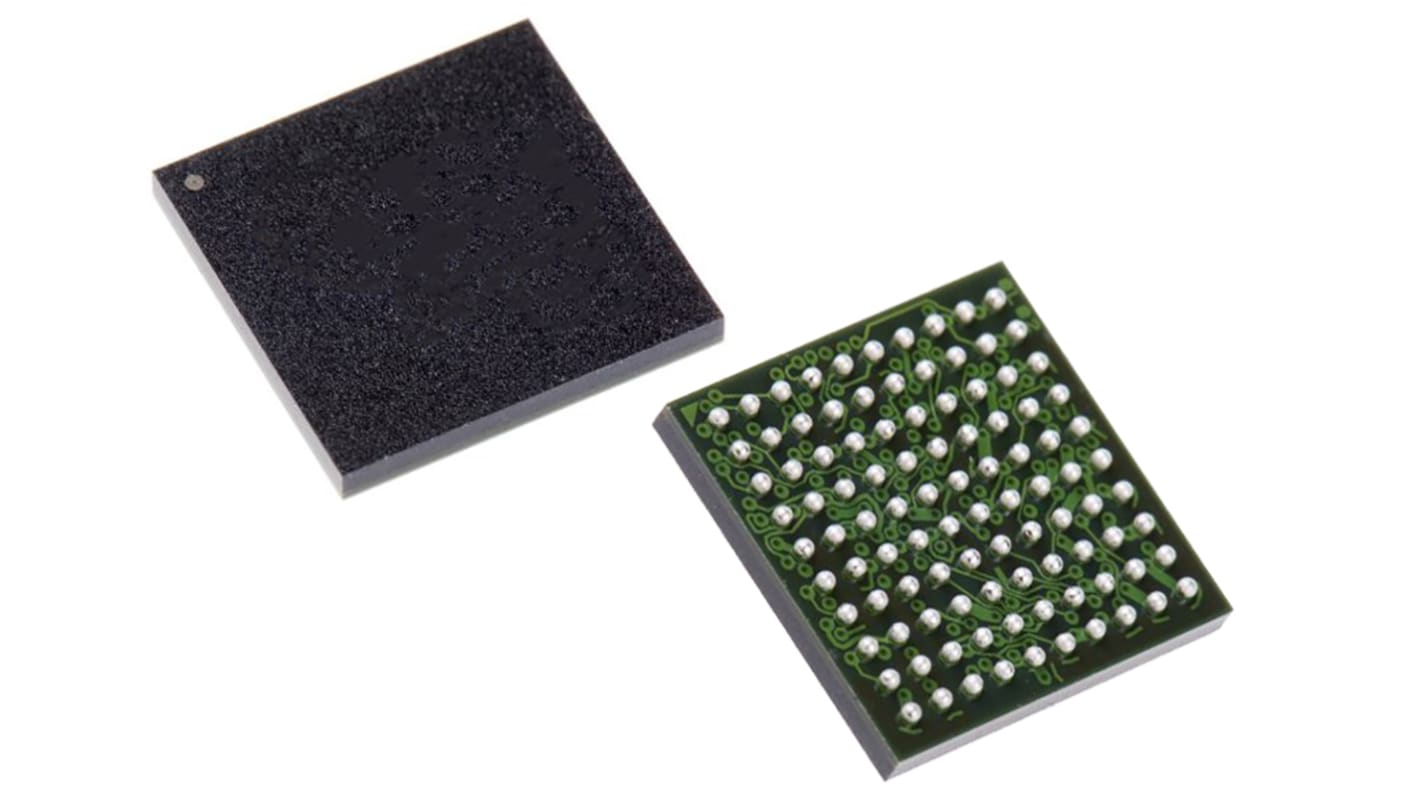

Renesas Electronics R7FS7G27H2A01CBG#AC0, 32bit ARM Cortex M4 Microcontroller, S7G2, 240MHz, 4 MB Flash, 176-Pin BGA
- RS-artikelnummer:
- 176-9664
- Tillv. art.nr:
- R7FS7G27H2A01CBG#AC0
- Tillverkare / varumärke:
- Renesas Electronics
Tyvärr har vi inte denna produkt i lager.
Restorder ej möjlig på grund av bristande allokering. Den evt. angivna systemtekniska leveranstiden är inte giltig.
Lagt till varukorgen
Pris (ex. moms) Var (i en bricka med 25)
237,046 kr
(exkl. moms)
296,308 kr
(inkl. moms)
| Enheter | Per unit | Per Tray* |
| 25 + | 237,046 kr | 5 926,15 kr |
- RS-artikelnummer:
- 176-9664
- Tillv. art.nr:
- R7FS7G27H2A01CBG#AC0
- Tillverkare / varumärke:
- Renesas Electronics
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
The MCU integrates multiple series of software- and pin-compatible Arm®-based 32-bit MCUs that share the same set of Renesas peripherals to facilitate design scalability and efficient platform-based product development. The MCU provides a high-performance Arm Cortex®-M4 core running up to 240 MHz
Up to 4-MB code flash memory
640-KB SRAM
Graphics LCD Controller (GLCDC)
2D Drawing Engine (DRW)
Capacitive Touch Sensing Unit (CTSU)
Ethernet MAC Controller (ETHERC) with IEEE 1588 PTP, USBFS, USBHS, SD/MMC Host Interface
Quad Serial Peripheral Interface (QSPI)
Security and safety features
Analog peripherals.
640-KB SRAM
Graphics LCD Controller (GLCDC)
2D Drawing Engine (DRW)
Capacitive Touch Sensing Unit (CTSU)
Ethernet MAC Controller (ETHERC) with IEEE 1588 PTP, USBFS, USBHS, SD/MMC Host Interface
Quad Serial Peripheral Interface (QSPI)
Security and safety features
Analog peripherals.
Specifikationer
Attribute | Value |
|---|---|
| Family Name | S7G2 |
| Package Type | BGA |
| Mounting Type | Surface Mount |
| Pin Count | 176 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 4 MB |
| Maximum Frequency | 240MHz |
| RAM Size | 640 kB |
| USB Channels | 2 |
| Number of PWM Units | 3 x 32 bit |
| Number of SPI Channels | 2 |
| Number of UART Channels | 1 |
| Number of CAN Channels | 2 |
| Typical Operating Supply Voltage | 3.6 (Maximum) V |
| Number of I2C Channels | 3 |
| Maximum Number of Ethernet Channels | 1 |
| Minimum Operating Temperature | -40 °C |
| Instruction Set Architecture | DSP |
| Pulse Width Modulation | 2 (4 x 32 bit), 1 (6 x 32 bit) |
| Program Memory Type | Flash |
| Number of Ethernet Channels | 1 |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 13mm |
| ADCs | 21 x 12 bit |
| Height | 0.95mm |
| Width | 13mm |
| Dimensions | 13 x 13 x 0.95mm |
