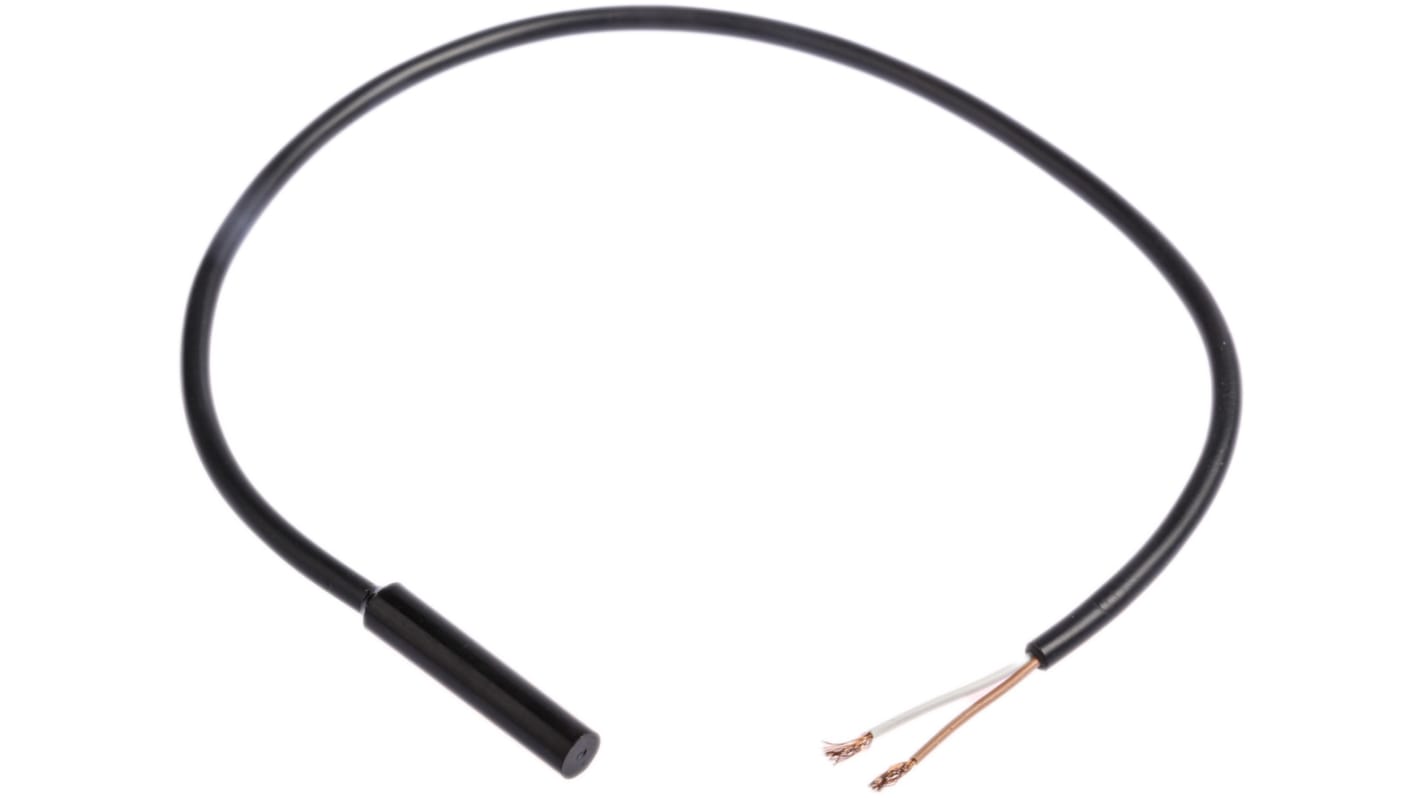

Assemtech Cylindrical Reed Switch, NO, 240V, 500mA
- RS-artikelnummer:
- 289-7834
- Tillv. art.nr:
- S1370
- Tillverkare / varumärke:
- Assemtech
1677 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
54,70 kr
(exkl. moms)
68,38 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 5 | 54,70 kr |
| 6 - 11 | 52,29 kr |
| 12 + | 50,76 kr |
- RS-artikelnummer:
- 289-7834
- Tillv. art.nr:
- S1370
- Tillverkare / varumärke:
- Assemtech
Lagstiftning och ursprungsland
- COO (Country of Origin):
- GB
Produktdetaljer
Assemtech Cylindrical Proximity Reed Switches
This range of cylindrical magnetic proximity reed switches from Assemtech are designed to provide a simple and cost effective solution to position or limit sensing applications. Reed switches are often employed to carry out such functions as linear actuator switches, security system switches and door switches.
N/O contacts
Matching operating magnet available
Matching operating magnet available
Specifikationer
Attribute | Value |
|---|---|
| Switch Shape | Cylindrical |
| Normal State Configuration | NO |
| Terminal Type | Wire Lead |
| Maximum Current | 500mA |
| Maximum AC Voltage | 240V |
| Contact Resistance | 100mΩ |
| Total Length | 328mm |
| Length | 28mm |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -20°C |
