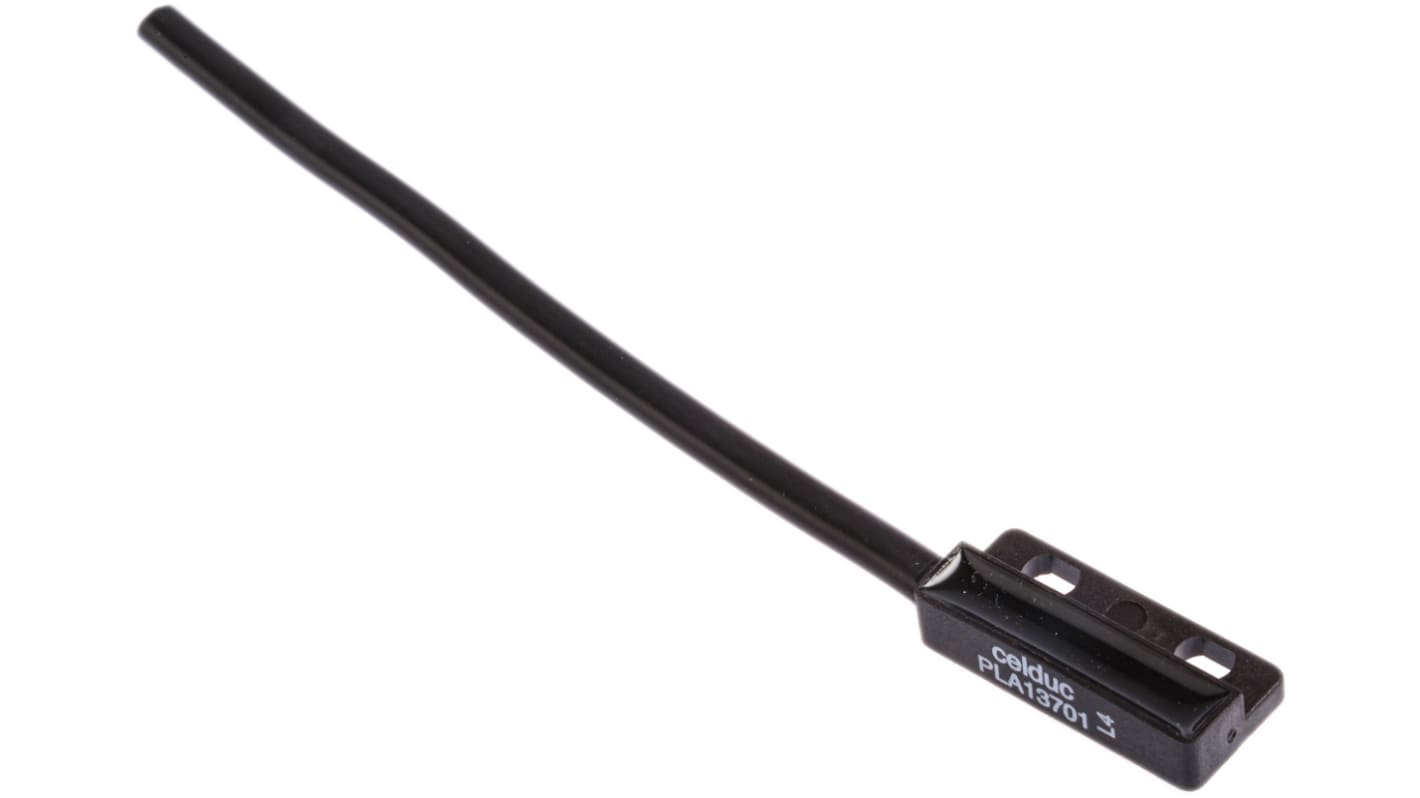

Celduc Rectangular Magnetic Proximity Sensor, NO, 110V, 1.2A, IP67
- RS-artikelnummer:
- 179-2873
- Tillv. art.nr:
- PLA13701
- Tillverkare / varumärke:
- Celduc
30 I lager för avsändande samma dag
586 Inom 1 arbetsdag(ar) (UK lager)
Lagt till varukorgen
Pris (ex. moms) Varje
133,03 kr
(exkl. moms)
166,29 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 133,03 kr |
| 5 - 9 | 127,78 kr |
| 10 + | 125,15 kr |
- RS-artikelnummer:
- 179-2873
- Tillv. art.nr:
- PLA13701
- Tillverkare / varumärke:
- Celduc
Lagstiftning och ursprungsland
- COO (Country of Origin):
- FR
Produktdetaljer
Magnetically Controlled Proximity Sensors
PL/PAA series magnetically controlled proximity sensors (rectangular housing).
Reed switch integrated into an insulated housing.
Moulded magnets.
Reed switch integrated into an insulated housing.
Moulded magnets.
Specifikationer
Attribute | Value |
|---|---|
| Switch Shape | Rectangular |
| Normal State Configuration | NO |
| Terminal Type | Wire Lead |
| Maximum Current | 1.2A |
| Maximum AC Voltage | 110V |
| Maximum DC Voltage | 200V |
| Switching Frequency | 3200Hz |
| Contact Resistance | ≤ 100mΩ |
| Total Length | 132mm |
| Length | 32mm |
| Dimensions | 32 x 15 x 6.8mm |
| Maximum Operating Temperature | +85°C |
| Depth | 6.8mm |
| Minimum Operating Temperature | -40°C |
| Width | 15mm |
