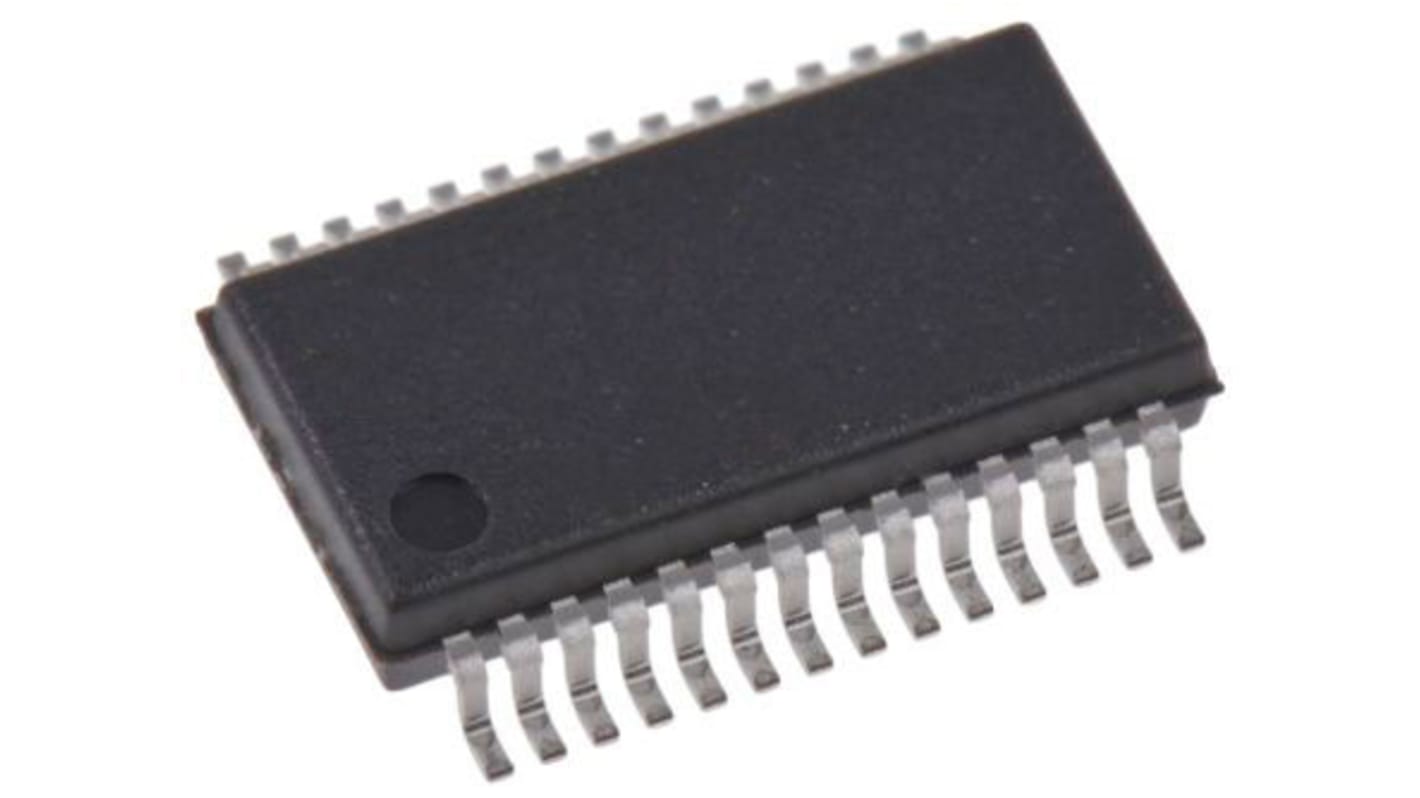

- RS-artikelnummer:
- 190-7350P
- Tillv. art.nr:
- MAX9206EAI+
- Tillverkare / varumärke:
- Maxim Integrated
211 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje (levereras i ett rör)
73,51 kr
(exkl. moms)
91,89 kr
(inkl. moms)
Enheter | Per unit |
1 + | 73,51 kr |
- RS-artikelnummer:
- 190-7350P
- Tillv. art.nr:
- MAX9206EAI+
- Tillverkare / varumärke:
- Maxim Integrated
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Stand-Alone Deserializer (vs. SerDes) Ideal for Unidirectional Links
Automatic Clock Recovery
Allow Hot Insertion and Synchronization Without System Interruption
BLVDS Serial Input Rated for Point-to-Point and Bus Applications
Fast Pseudorandom Lock
Wide Reference Clock Input Range
16MHz to 45MHz (MAX9206)
40MHz to 60MHz (MAX9208)
High 720psP-P Jitter Tolerance (MAX9206)
Low 30mA Supply Current (MAX9206 at 16MHz)
10-Bit Parallel LVCMOS/LVTTL Output
Up to 600Mbps Throughput (MAX9208)
Programmable Output Strobe Edge
Pin Compatible to DS92LV1212A and DS92LV1224
Applications
Add/Drop Multiplexers
Backplane and Interconnect Applications
Cell Phone Base Stations
Digital Cross-Connects
DSLAM
Network Routers and Switches
Automatic Clock Recovery
Allow Hot Insertion and Synchronization Without System Interruption
BLVDS Serial Input Rated for Point-to-Point and Bus Applications
Fast Pseudorandom Lock
Wide Reference Clock Input Range
16MHz to 45MHz (MAX9206)
40MHz to 60MHz (MAX9208)
High 720psP-P Jitter Tolerance (MAX9206)
Low 30mA Supply Current (MAX9206 at 16MHz)
10-Bit Parallel LVCMOS/LVTTL Output
Up to 600Mbps Throughput (MAX9208)
Programmable Output Strobe Edge
Pin Compatible to DS92LV1212A and DS92LV1224
Applications
Add/Drop Multiplexers
Backplane and Interconnect Applications
Cell Phone Base Stations
Digital Cross-Connects
DSLAM
Network Routers and Switches
Specifikationer
Attribute | Value |
---|---|
IC Type | Deserializer IC |
Output Type | LVCMOS, LVTTL |
Mounting Type | Surface Mount |
Package Type | SSOP |
Maximum Operating Supply Voltage | -0.3 V |
Maximum Operating Temperature | +85 °C |
Minimum Operating Supply Voltage | 4 V |
Minimum Operating Temperature | -40 °C |
