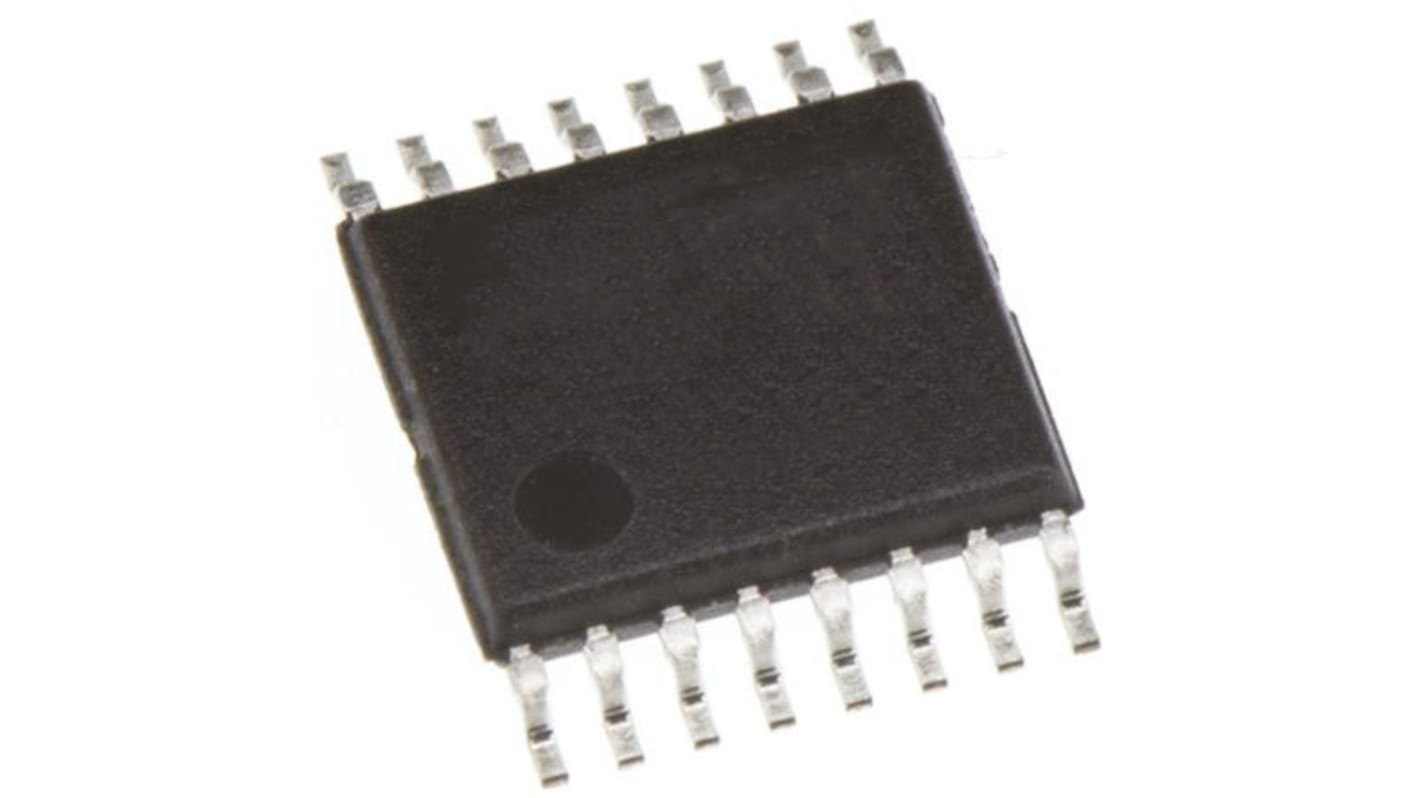

Maxim Integrated MAX9169EUE+, LVDS Repeater LVDS TSSOP
- RS-artikelnummer:
- 190-7266
- Tillv. art.nr:
- MAX9169EUE+
- Tillverkare / varumärke:
- Maxim Integrated
158 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 2)
77,02 kr
(exkl. moms)
96,28 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 2 - 8 | 77,02 kr | 154,04 kr |
| 10 - 24 | 69,535 kr | 139,07 kr |
| 26 - 98 | 66,265 kr | 132,53 kr |
| 100 + | 66,04 kr | 132,08 kr |
- RS-artikelnummer:
- 190-7266
- Tillv. art.nr:
- MAX9169EUE+
- Tillverkare / varumärke:
- Maxim Integrated
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
150ps (max) Pulse Skew
200psP-P (max) Added Deterministic Jitter at 630Mbps (223 - 1) PRBS Pattern
8psRMS (max) Added Random Jitter
120ps (max) Channel-to-Channel Skew
630Mbps Data Rate
30mA (max) (MAX9169), 25mA (max) (MAX9170) Supply Current, a 15% Improvement vs. Competition
LVDS (MAX9169) or +5V Tolerant LVTTL/LVCMOS (MAX9170) Input Versions
Fail-Safe Circuit Sets Output High for Undriven Differential Input
Output Rated for 10pF Load
Individual Output Enables
Single 3.3V Supply
Improved Second Source of the SN65LVDS104 (MAX9169)/SN65LVDS105 (MAX9170)
16-Pin SO and TSSOP Packages
Applications
Add/Drop Multiplexers
Backplane Interconnect
Cell Phone Base Stations
Clock Distribution
Digital Cross-Connects
Network Routers and Switches
Point-to-Point Baseband Data Transmission
200psP-P (max) Added Deterministic Jitter at 630Mbps (223 - 1) PRBS Pattern
8psRMS (max) Added Random Jitter
120ps (max) Channel-to-Channel Skew
630Mbps Data Rate
30mA (max) (MAX9169), 25mA (max) (MAX9170) Supply Current, a 15% Improvement vs. Competition
LVDS (MAX9169) or +5V Tolerant LVTTL/LVCMOS (MAX9170) Input Versions
Fail-Safe Circuit Sets Output High for Undriven Differential Input
Output Rated for 10pF Load
Individual Output Enables
Single 3.3V Supply
Improved Second Source of the SN65LVDS104 (MAX9169)/SN65LVDS105 (MAX9170)
16-Pin SO and TSSOP Packages
Applications
Add/Drop Multiplexers
Backplane Interconnect
Cell Phone Base Stations
Clock Distribution
Digital Cross-Connects
Network Routers and Switches
Point-to-Point Baseband Data Transmission
Specifikationer
Attribute | Value |
|---|---|
| Input Type | LVDS |
| IC Type | Repeater IC |
| Output Type | LVDS |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Maximum Operating Supply Voltage | 5.5 V |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Operating Temperature | +85 °C |
