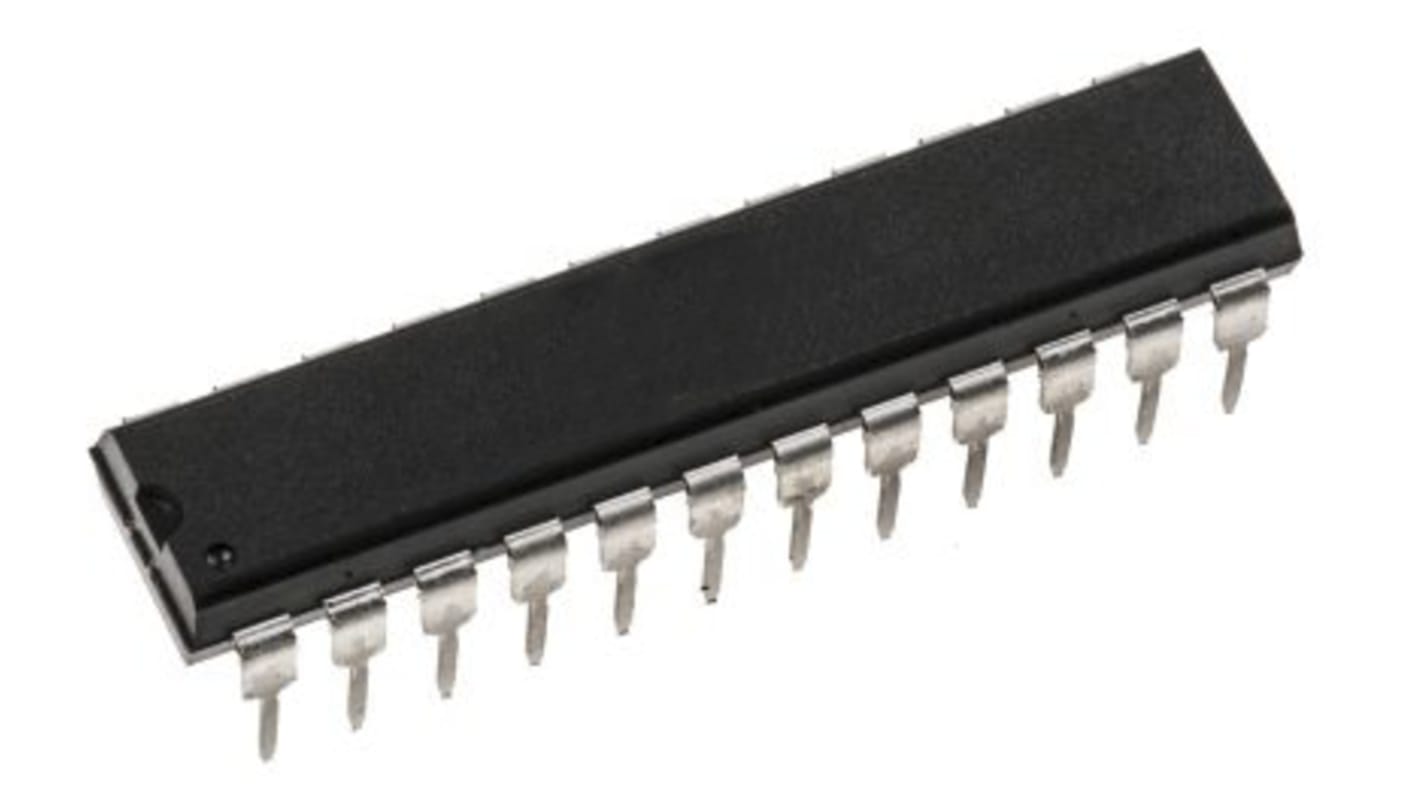

Maxim Integrated MAX239CNG+ Line Transceiver, 24-Pin PDIP

RS-artikelnummer:: 191-4265
Tillv. art.nr:: MAX239CNG+
Tillverkare / varumärke:: Maxim Integrated

Maxim Integrated MAX239CNG+ Line Transceiver, 24-Pin PDIP

60 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Var (i ett rör med 15)

101,858 kr

(exkl. moms)

127,322 kr

(inkl. moms)

Enheter	Per unit	Per Tube*
15 - 15	101,858 kr	1 527,87 kr
30 - 90	97,178 kr	1 457,67 kr
105 +	96,771 kr	1 451,565 kr

RS-artikelnummer:: 191-4265
Tillv. art.nr:: MAX239CNG+
Tillverkare / varumärke:: Maxim Integrated

Datablad

Datasheet MAX239CNG+

Lagstiftning och ursprungsland

Produktdetaljer

The MAX220–MAX249 family of line drivers/receivers is intended for communications interfaces, particularly applications where ±12V is not available..
The MAX225, MAX233, MAX235, and MAX245/MAX246/MAX247 use no external components and are recommended for applications where printed circuit board space is critical.
The MAX220–MAX249 are offered in 26 different packages with temperatures from 0 to +70°C up to -55°C to +125°C.

Saves Board Space
Integrated Charge Pump Circuitry
Eliminates the Need for a Bipolar ±12V Supply
Enables Single Supply Operation from +5V Supply
Integrated Capacitors (MAX223, MAX233, MAX235, MAX245–MAX247)
Saves Power for Reduced Power Requirements
5μW Shutdown Mode
Applications/Uses
Interface Translation
Multidrop RS-232 Networks
Portable Diagnostics Equipment

Specifikationer

Attribute	Value
IC Type	Line Transceiver IC
Input Type	Single Ended
Number of Transmitters	3 (RS-232)
Mounting Type	Through Hole
Package Type	PDIP
Pin Count	24
Dimensions	32.13 x 7.87 x 4.45mm
