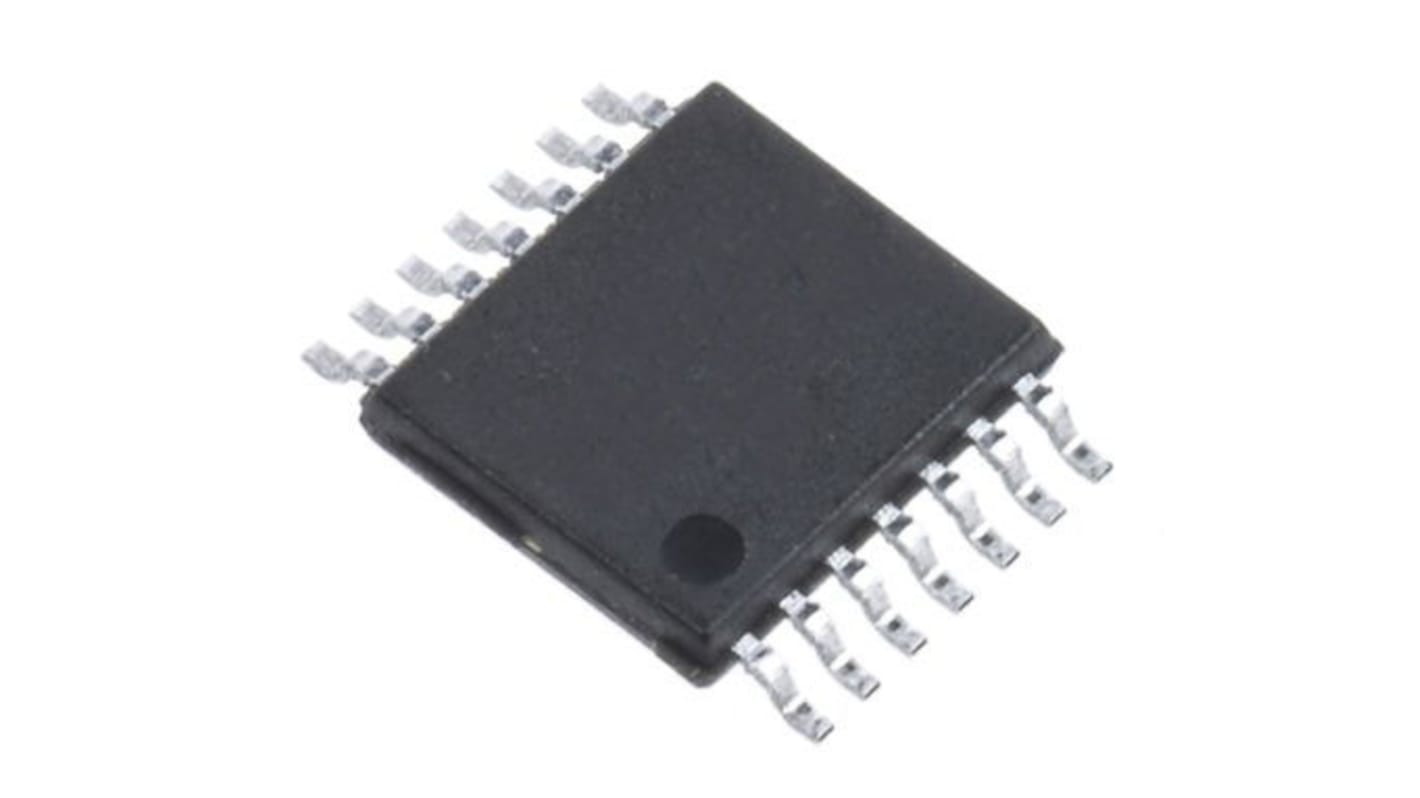

Maxim Integrated MAX13451EAUD+ Line Transceiver TSSOP-EP
- RS-artikelnummer:
- 190-6906
- Tillv. art.nr:
- MAX13451EAUD+
- Tillverkare / varumärke:
- Maxim Integrated
Tyvärr har vi inte denna produkt i lager.
Restorder ej möjlig på grund av bristande allokering. Den evt. angivna systemtekniska leveranstiden är inte giltig.
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 5)
59,02 kr
(exkl. moms)
73,78 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 5 - 5 | 59,02 kr | 295,10 kr |
| 10 - 20 | 53,166 kr | 265,83 kr |
| 25 - 95 | 50,082 kr | 250,41 kr |
| 100 + | 45,38 kr | 226,90 kr |
- RS-artikelnummer:
- 190-6906
- Tillv. art.nr:
- MAX13451EAUD+
- Tillverkare / varumärke:
- Maxim Integrated
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Software/Pin-Selectable 100Ω/120Ω Termination
Integrated, Switchable Resistors Eliminate the Need for External Resistors or DIP Switches
Driver Drives 100Ω Double Termination and Supports Cat-5/Cat-6 and 24-AWG Cables
Pin-Selectable Slew-Rate Limiting Reduces EMI for Data Rates Up to 500kbps
1/8 Unit Load Allows Up to 256 Transceivers On the Bus
Designed to Perform in Harsh Environments
Extended ESD Protection
±30kV Human Body Model
±15kV Air Gap Discharge
±7kV Contact Discharge
Inverting of A, B Line Polarity (MAX13451E) Allows Phase Reversal if Misconnected
Thermal and Overcurrent Protection
Driver Fault Indication (MAX13451E)
Fail-Safe Receivers
-40°C to +125°C Temperature Range
+4.5V to +5.5V Supply Voltage Range
Integrated Low-Voltage Logic Interface (Down to 1.8V) Interfaces with Small-Geometry ASICs and FPGA
Applications/Uses
Industrial Control Systems
Medical Networks
Motor Control
Portable Industrial Equipment
Security Networks
Integrated, Switchable Resistors Eliminate the Need for External Resistors or DIP Switches
Driver Drives 100Ω Double Termination and Supports Cat-5/Cat-6 and 24-AWG Cables
Pin-Selectable Slew-Rate Limiting Reduces EMI for Data Rates Up to 500kbps
1/8 Unit Load Allows Up to 256 Transceivers On the Bus
Designed to Perform in Harsh Environments
Extended ESD Protection
±30kV Human Body Model
±15kV Air Gap Discharge
±7kV Contact Discharge
Inverting of A, B Line Polarity (MAX13451E) Allows Phase Reversal if Misconnected
Thermal and Overcurrent Protection
Driver Fault Indication (MAX13451E)
Fail-Safe Receivers
-40°C to +125°C Temperature Range
+4.5V to +5.5V Supply Voltage Range
Integrated Low-Voltage Logic Interface (Down to 1.8V) Interfaces with Small-Geometry ASICs and FPGA
Applications/Uses
Industrial Control Systems
Medical Networks
Motor Control
Portable Industrial Equipment
Security Networks
Specifikationer
Attribute | Value |
|---|---|
| IC Type | Line Transceiver IC |
| Input Type | Differential |
| Number of Transmitters | 1 (RS-485) |
| Mounting Type | Surface Mount |
| Package Type | TSSOP-EP |
