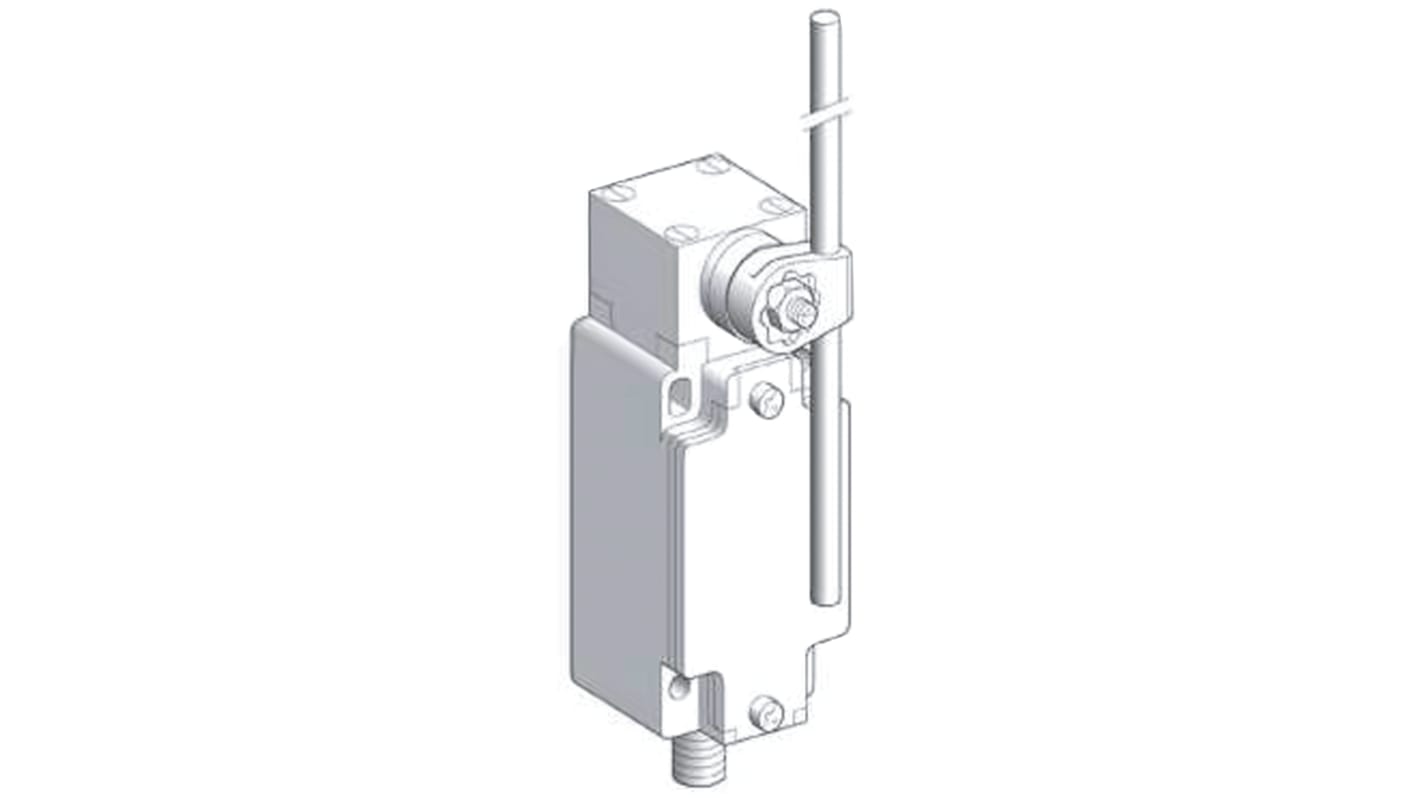

Telemecanique Sensors OsiSense XC Series Roller Lever Limit Switch, NO/NC, IP66, DPST, Zamak Zinc Alloy Housing, 500V
- RS-artikelnummer:
- 814-7930
- Tillv. art.nr:
- XCKJ10559D
- Tillverkare / varumärke:
- Telemecanique Sensors
4 I lager för avsändande samma dag
Nästa dag-leverans inte möjlig
Lagt till varukorgen
Pris (ex. moms) Varje
1 141,42 kr
(exkl. moms)
1 426,78 kr
(inkl. moms)
Enheter | Per unit |
1 + | 1 141,42 kr |
- RS-artikelnummer:
- 814-7930
- Tillv. art.nr:
- XCKJ10559D
- Tillverkare / varumärke:
- Telemecanique Sensors
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- FR
Produktdetaljer
Telemecanique Limit Switches
Introducing Telemecanique XCKJ range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle, predominantly used as part of a control system within industrial applications such as those listed before. The complete limit switch assemblies that sit within this range can be constructed using ZCKJ limit bodies and ZCKE/Y limit switch heads and actuators.
How does a limit switch work?
The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break an electrical connection
Specifikationer
Attribute | Value |
---|---|
Actuator Type | Roller Lever |
Pole and Throw Configuration | DPST |
Normal State Configuration | NO/NC |
IP Rating | IP66 |
Maximum Current | 10A |
Housing Material | Zamak Zinc Alloy |
Maximum AC Voltage | 500V |
Connection Type | 1/2 in NPT |
Series | OsiSense XC |
Action Type | Snap Action |
Length | 77mm |
Width | 40mm |
Depth | 44mm |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -25°C |
Mounting Orientation | Side |
Mechanical Life | 30000000Cycles |
