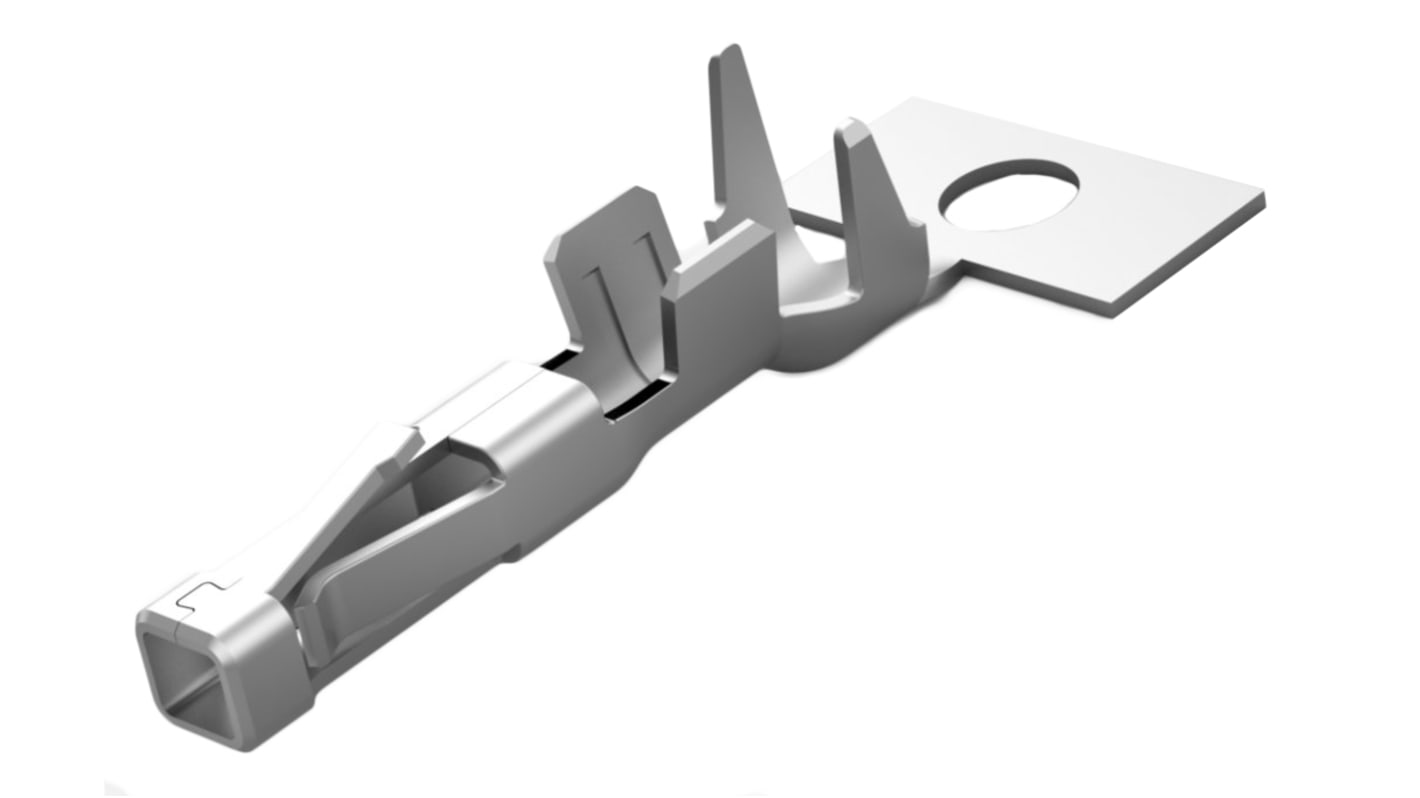

TE Connectivity, SlimSeal Connector Miniature Female Socket Contact for use with SlimSeal Connector Miniature Series

  • RS-artikelnummer 134-8757
  • Tillv. art.nr 1-2834067-2
  • Tillverkare / varumärke TE Connectivity
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

TE Connectivity SlimSeal Connector Contacts

A range of Pin and Socket contacts suitable for use with the TE Connectivity Slimseal miniature IP67 connector series. These male and female crimp contacts are made from copper alloy and have a tin plating finish. The contacts have a suggested wire acceptance of 18 AWG to 22 AWG.

Features and Benefits

Current rating:
• 18 AWG 5A Max
• 20 AWG to 22 AWG 3.5A Max

Applications

• Outdoor lighting
• Commercial refrigeration lighting
• Kitchen appliances
• HVAC equipment

Lighting Connectors

Specifikationer
Attribute Value
Accessory Type Socket Contact
For Use With SlimSeal Connector Miniature Series Connector
Gender Female
Series SlimSeal Connector Miniature
17100 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Bag of 100)
0,393 kr
(exkl. moms)
0,491 kr
(inkl. moms)
Enheter
Per unit
Per Bag*
100 - 400
0,393 kr
39,30 kr
500 - 900
0,373 kr
37,30 kr
1000 - 1400
0,295 kr
29,50 kr
1500 +
0,28 kr
28,00 kr
Förpackningsalternativ:
