- RS-artikelnummer:
- 183-5260
- Tillv. art.nr:
- 450L-E4HL1350YD
- Tillverkare / varumärke:
- Allen Bradley Guardmaster
Tillfälligt slut i lager – restorder för leverans 2024-06-18
Lagt till varukorgen
Pris (ex. moms) Varje
19 852,27 kr
(exkl. moms)
24 815,34 kr
(inkl. moms)
Enheter | Per unit |
1 + | 19 852,27 kr |
- RS-artikelnummer:
- 183-5260
- Tillv. art.nr:
- 450L-E4HL1350YD
- Tillverkare / varumärke:
- Allen Bradley Guardmaster
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer

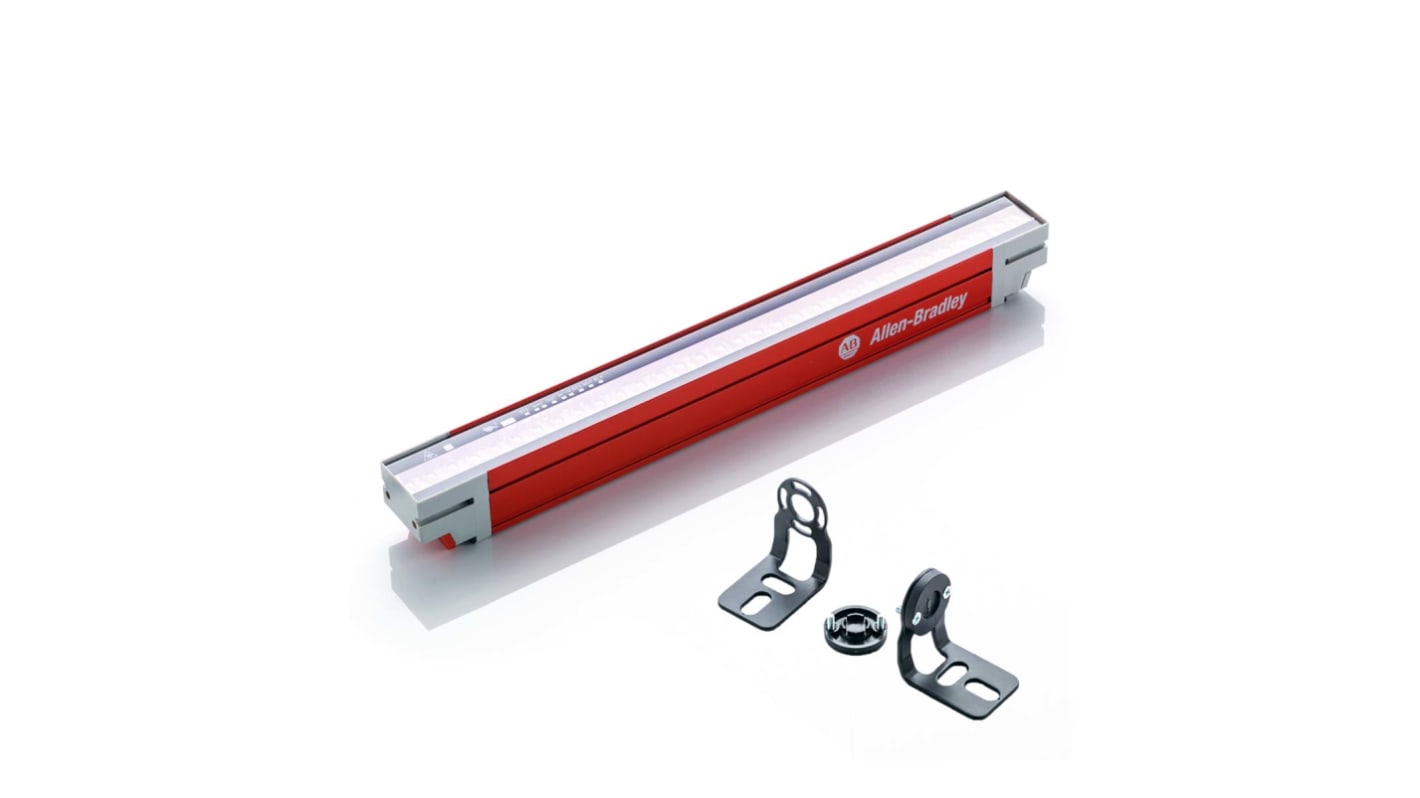

Our Bulletin 450L GuardShield™ POC safety light curtains are unlike traditional safety light curtains, which are based on separate transmitter and receiver units. Patented technology allows each transceiver to be used as a transmitter or receiver via an innovative plug-in module. The 450L-B is the basic model with on/off functionality. The advanced 450L-E model features integrated laser alignment, cascading, blanking, and integrated muting.
Includes patented technology that allows each transceiver to be used either as a transmitter or receiver via an innovative plug-in module
Features an active protective field that senses over the entire length of a transceiver
Offers a wide range of protection heights 150…1950 mm (5.9…76.7 in.) in increments of 150 mm (0.5 ft)
Features a compact housing design 30 x 30 mm (1.18 x 1.18 in.)
Provides easy configuration of the start mode, external device monitoring (EDM), and scanning range by DIP switches on the plug-in modules
Features an active protective field that senses over the entire length of a transceiver
Offers a wide range of protection heights 150…1950 mm (5.9…76.7 in.) in increments of 150 mm (0.5 ft)
Features a compact housing design 30 x 30 mm (1.18 x 1.18 in.)
Provides easy configuration of the start mode, external device monitoring (EDM), and scanning range by DIP switches on the plug-in modules
Specifikationer
Attribute | Value |
---|---|
Range | GuardShield |
Series | 450L-E |
Beam Resolution | 30mm |
Component Type | Transceiver |
SIL IEC 61508 | SIL 3 |
PL EN ISO 13849-1 | e |
Protective Height | 1350mm |
Minimum Scanning Distance | 0.9m |
Maximum Scanning Distance | 16.2m |
Maximum Response Time | 13 ms |
Length | 30mm |
Supply Voltage | 24 V dc |
Dimensions | 30 x 30 mm |
Terminal Type | M12 Connector |
Application | Electronic Fences, Forming Operations, Presses, Robot Cells, Workstations |
Features | Muting, Blanking, Start Mode, External Device Monitoring (EDM) |
Width | 30mm |
