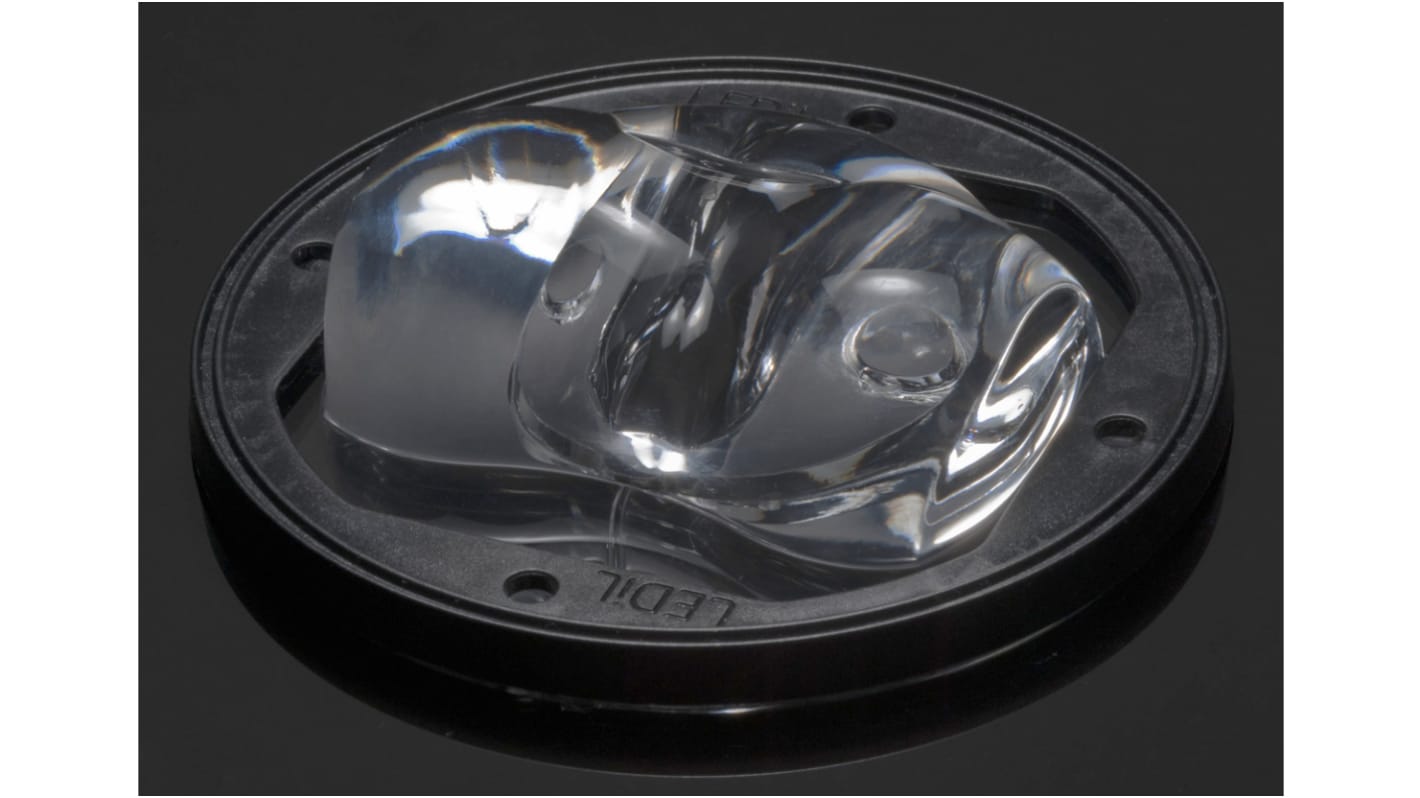

Ledil FN13323_STELLA-A, Stella Series LED Lens, Asymmetric Round Beam
- RS-artikelnummer:
- 889-2450
- Tillv. art.nr:
- FN13323_STELLA-A
- Tillverkare / varumärke:
- Ledil
Tillfälligt slut i lager – restorder för leverans 2024-06-11
Lagt till varukorgen
Pris (ex. moms) Varje
323,94 kr
(exkl. moms)
404,92 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 323,94 kr |
| 5 - 9 | 301,20 kr |
| 10 - 24 | 286,34 kr |
| 25 - 49 | 271,04 kr |
| 50 + | 240,99 kr |
- RS-artikelnummer:
- 889-2450
- Tillv. art.nr:
- FN13323_STELLA-A
- Tillverkare / varumärke:
- Ledil
Lagstiftning och ursprungsland
Produktdetaljer
LEDiL STELLA Series LED Lenses
The STELLA series from LEDiL are a family of LED lenses designed for street, walkway and area lighting. These self-sealing LED lenses are designed to be used with COB LEDs.
Made using an optical grade silicone, the STELLA lenses offer a high UV and temperature resistance. STELLA lenses have been designed and optimised for use with a variety of LEDs. Due to the rapidly changing nature of LED products customers are strongly advised to consult the latest manufacturer data for compatible LEDs.
Made using an optical grade silicone, the STELLA lenses offer a high UV and temperature resistance. STELLA lenses have been designed and optimised for use with a variety of LEDs. Due to the rapidly changing nature of LED products customers are strongly advised to consult the latest manufacturer data for compatible LEDs.
STELLA beam options:
STELLA A - Type II/III for street lighting
STELLA-HB - warehouse and outdoor for COB LES up to 50 mm
STELLA-T4 - Type IV for street lighting
STELLA-FRESNEL - narrow spot for COB LES 22 mm or less
STELLA A - Type II/III for street lighting
STELLA-HB - warehouse and outdoor for COB LES up to 50 mm
STELLA-T4 - Type IV for street lighting
STELLA-FRESNEL - narrow spot for COB LES 22 mm or less
Note
The viewing angle produced (the full angle measured at the half peak luminous intensity value) will vary depending on the chip size, colour and position of the LED.
LEDiL Speciality LED Lenses
Specifikationer
Attribute | Value |
|---|---|
| Series | Stella |
| Product Type | LED Lens |
| Emission Pattern | Round |
| Viewing Angle | Asymmetric |
| Affixing Method | Screw |
| For Use With | Cree CXA/B 1816, Cree CXA/B 1820, Cree CXA/B 1850, Cree CXA15, Cree CXA25, Cree CXB15, Cree CXB25, Lumileds LUXEON CoB 1202, Lumileds LUXEON CoB 1203, Lumileds LUXEON CoB 1208, OSRAM SOLERIQ P13, OSRAM SOLERIQ P9, OSRAM SOLERIQ S13, OSRAM SOLERIQ S19 |
| Dimensions | 90 (Dia.) x 22mm |
| Clear or Diffused | Clear |
| Diameter | 90mm |
| Height | 22mm |
