Vishay 68 μH ±20% Leaded Inductor, Max SRF:2.95MHz, 10.5A Idc, 27.4mΩ Rdc, IHTH-1125KZ-5A
- RS-artikelnummer:
- 173-3923
- Tillv. art.nr:
- IHTH1125KZEB680M5A
- Tillverkare / varumärke:
- Vishay
Tillfälligt slut i lager – restorder för leverans 2024-09-27
Lagt till varukorgen
Pris (ex. moms) Var (i ett rör med 15)
75,515 kr
(exkl. moms)
94,394 kr
(inkl. moms)
| Enheter | Per unit | Per Tube* |
| 15 - 15 | 75,515 kr | 1 132,725 kr |
| 30 - 60 | 63,25 kr | 948,75 kr |
| 75 + | 61,542 kr | 923,13 kr |
- RS-artikelnummer:
- 173-3923
- Tillv. art.nr:
- IHTH1125KZEB680M5A
- Tillverkare / varumärke:
- Vishay
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

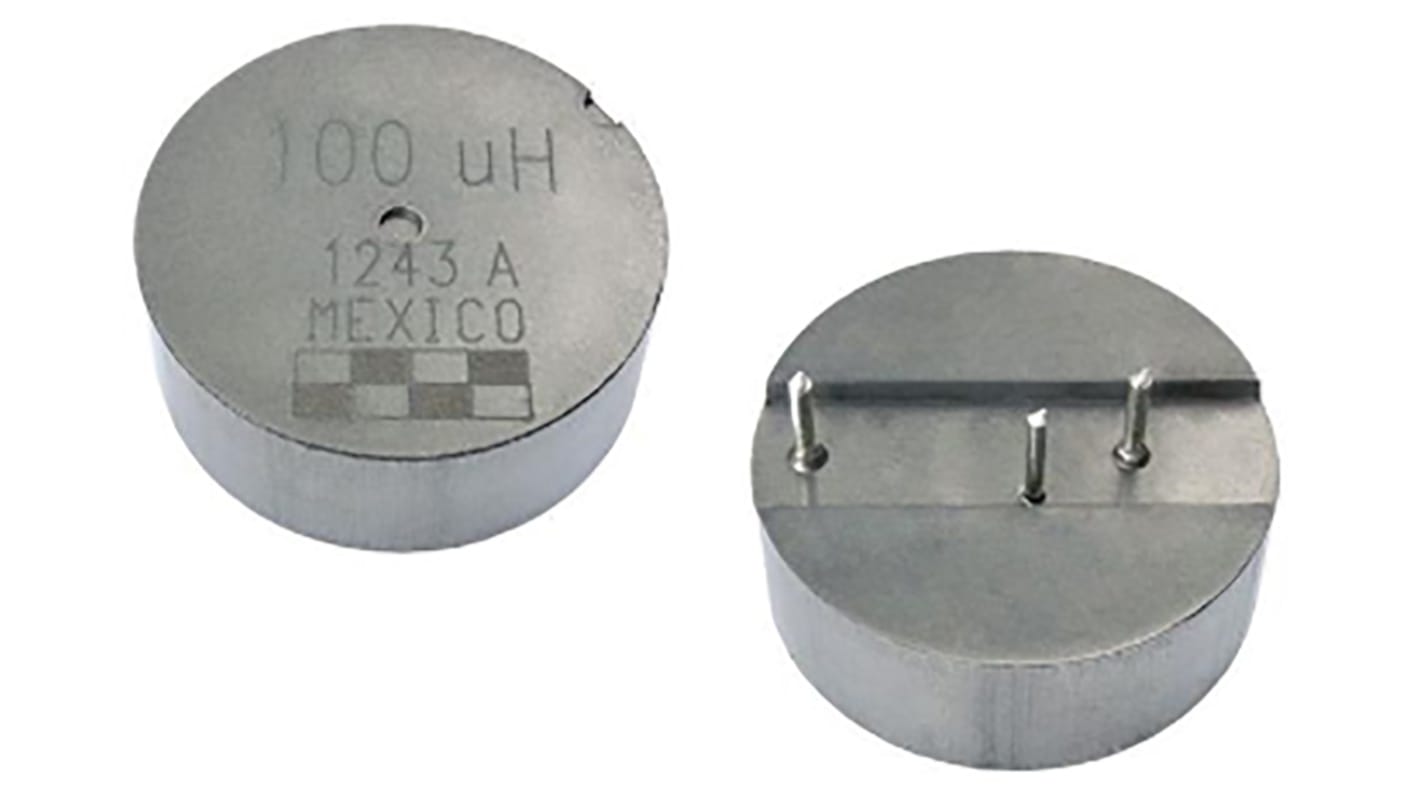

IHTH1125 Series High Current Through Hole, High Temperature Inductors
IHTH Series high current through hole, high temperature inductors for automotive applications. These inductors have a shielded construction and have excellent DC/DC energy storage up to 1MHZ. The IHTH inductors handle high translent current spikes without saturation, they also have an ultra low buzz noise, due to composite construction.
The IHTH high current inductors come with 2 pins 0.47uH to 47uH and 3 pins 68uH to 100uH pins.
The IHTH high current inductors come with 2 pins 0.47uH to 47uH and 3 pins 68uH to 100uH pins.
Applications
Diesel injection drivers
Engine and transmission control units
DC/DC Convertors for entertainment/ navigation systems
Noise suppression for motors
- Windshield wipers
- Power seats
- Power mirrors
- HID lighting
- Heating and ventilation blowers
LED drivers
Engine and transmission control units
DC/DC Convertors for entertainment/ navigation systems
Noise suppression for motors
- Windshield wipers
- Power seats
- Power mirrors
- HID lighting
- Heating and ventilation blowers
LED drivers
Standards
AEC-Q200 qualified
Vishay Non Standard SMT Inductors (Chokes)
Specifikationer
Attribute | Value |
|---|---|
| Inductance | 68 μH |
| Maximum DC Current | 10.5A |
| Mounting Type | Radial |
| Maximum DC Resistance | 27.4mΩ |
| Tolerance | ±20% |
| Diameter | 28.5mm |
| Height | 10.7mm |
| Dimensions | 28.5 (Dia.) x 10.7mm |
| Maximum Self Resonant Frequency | 2.95MHz |
| Lead Pitch | 16.58mm |
| Series | IHTH-1125KZ-5A |
| Terminal Type | Radial Leaded |
| Maximum Operating Temperature | +155°C |
| Lead Diameter | 1.11mm |
| Minimum Operating Temperature | -55°C |
