NEWHAVEN DISPLAY INTERNATIONAL NHD-3.5-320240JF-ASXP-CTP IPS TFT LCD Colour Display / Touch Screen, 3.5in, 320 x

RS-artikelnummer:: 262-4111
Tillv. art.nr:: NHD-3.5-320240JF-ASXP-CTP
Tillverkare / varumärke:: NEWHAVEN DISPLAY INTERNATIONAL

NEWHAVEN DISPLAY INTERNATIONAL NHD-3.5-320240JF-ASXP-CTP IPS TFT LCD Colour Display / Touch Screen, 3.5in, 320 x

97 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Varje

618,60 kr

(exkl. moms)

773,25 kr

(inkl. moms)

Enheter	Per unit
1 - 4	618,60 kr
5 +	603,19 kr

RS-artikelnummer:: 262-4111
Tillv. art.nr:: NHD-3.5-320240JF-ASXP-CTP
Tillverkare / varumärke:: NEWHAVEN DISPLAY INTERNATIONAL

Datablad

Lagstiftning och ursprungsland

COO (Country of Origin):: CN

Produktdetaljer

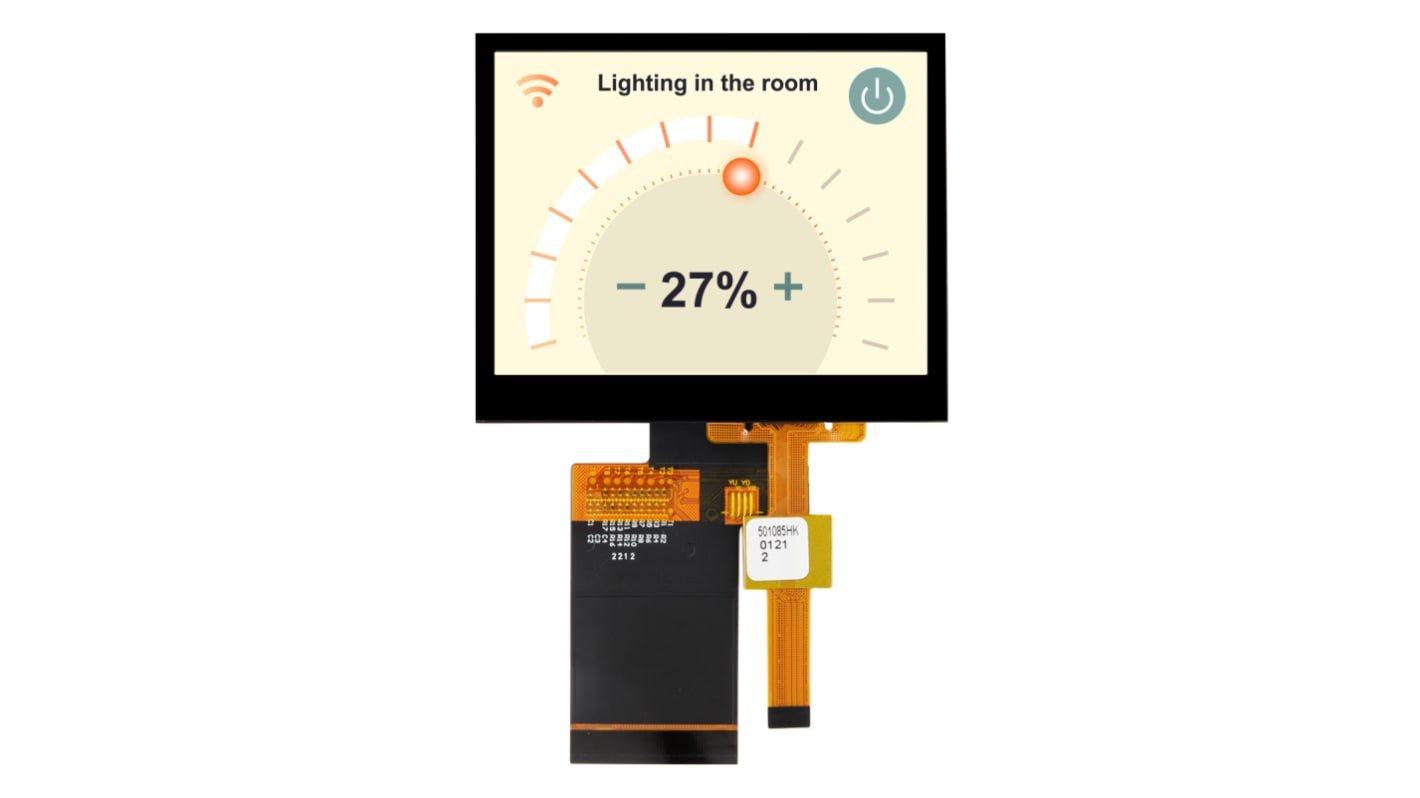

The NEWHAVEN DISPLAY INTERNATIONAL LCD display is a 320 x 240 pixel resolution IPS TFT display. The LCD screen includes IPS technology which delivers enhanced color reproduction, better image consistency, sunlight readable capabilities with high brightness backlight and boasts superior optical characteristics at any angle. This TFT is RoHS compliant and has a multi touch capacitive touchscreen.

Built in ST7272A IC driver
EMI shielding
Connection type is 40 pin FFC
Display mode is transmissive

Specifikationer

Attribute	Value
Diagonal Display Size	3.5in
Interface Type	RGB
Resolution	320 x 240pixels
Touch Screen	Yes
Viewing Area Dimensions	70.68 x 53.16mm
Touch Screen Type	Capacitive
Supply Voltage	3.3 V
Backlight Type	LED
Display Mode	Transmissive
AC or DC Input Voltage	dc
Dimensions	76.9 x 63.9 x 4.9mm
Display Matrix Technology	IPS TFT
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+70°C
Brightness	900cd/m²
Power Supply Included	No
Display Type	TFT
Series	NHD
Operating Temperature Range	-20 → 70°C
Viewing Area Width	53.16mm
Voltage Rating	3.3V
Width	63.9mm
Height	4.9mm
