Through Hole Lan Ethernet Transformer, 15.88 x 13.95 x 21.84mm
- RS-artikelnummer:
- 163-5602
- Tillv. art.nr:
- 7499111121A
- Tillverkare / varumärke:
- Wurth Elektronik
116 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett rör med 29)
87,091 kr
(exkl. moms)
108,864 kr
(inkl. moms)
| Enheter | Per unit | Per Tube* |
| 29 + | 87,091 kr | 2 525,639 kr |
- RS-artikelnummer:
- 163-5602
- Tillv. art.nr:
- 7499111121A
- Tillverkare / varumärke:
- Wurth Elektronik
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

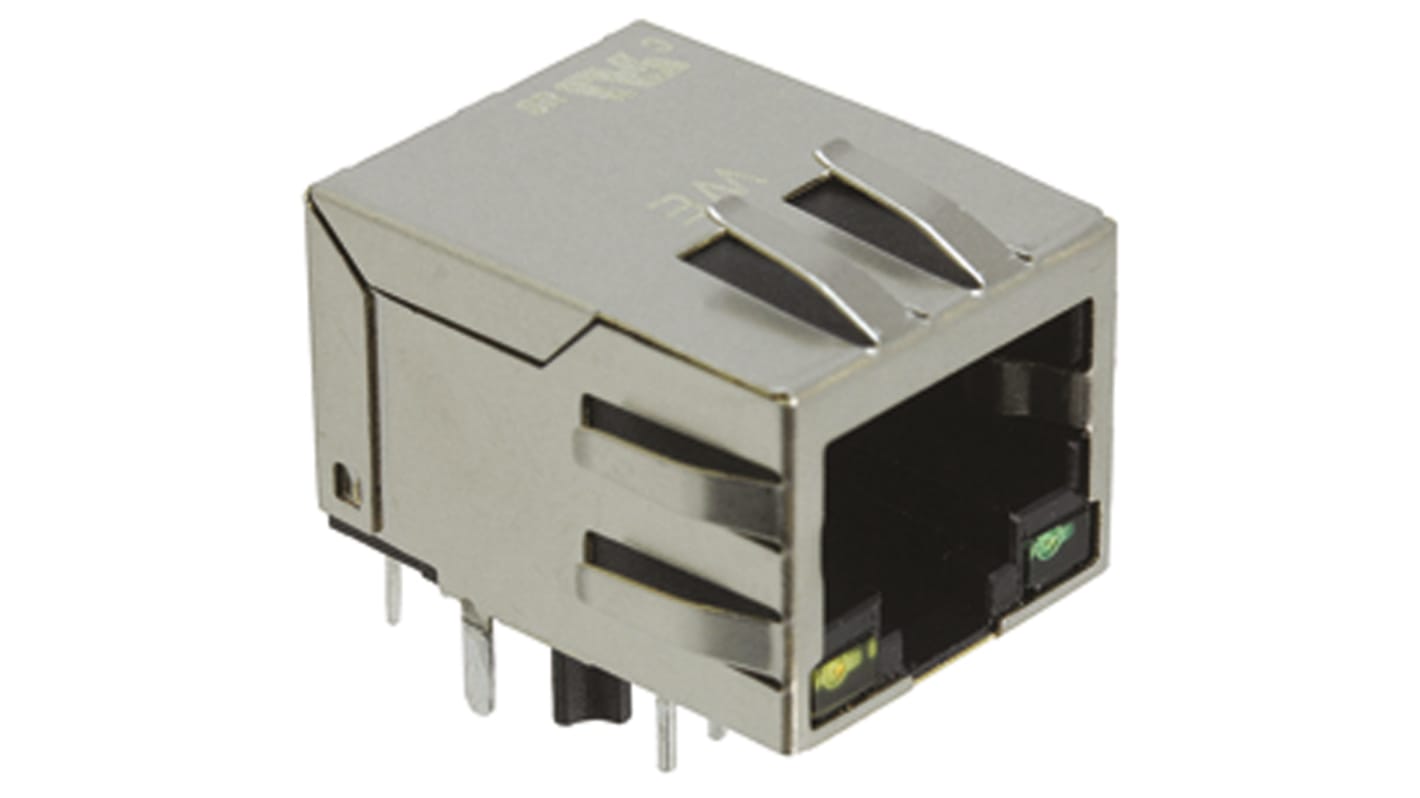

Würth RJ Data Sockets with integrated transformer/ common mode choke
A range of RJ connectors with integrated transformer/common mode choke. Perfect for various networking applications which require a well built and functioning RJ connection. All models are highly reliable and excellent quality.
Features & Benefits
350 μH min. OCL with 8 mA bias
Complies with IEEE 802.3
Typical applications include ADSl modems, Embedded PC, LAN applications, HUB, routers and switches.
Specifikationer
Attribute | Value |
|---|---|
| Number of Output Ports | 1 |
| Insertion Loss | -1.1dB |
| Mounting Type | Through Hole |
| Dimensions | 15.88 x 13.95 x 21.84mm |
| Depth | 21.84mm |
| Length | 15.88mm |
| Width | 13.95mm |
| Maximum Operating Frequency | 100MHz |
| Maximum Temperature | +70°C |
| Minimum Operating Frequency | 1MHz |
| Minimum Temperature | 0°C |
| Turns Ratio | 1:1 |
